Oil Pressures
OIL PRESSURES SPECIFICATIONS

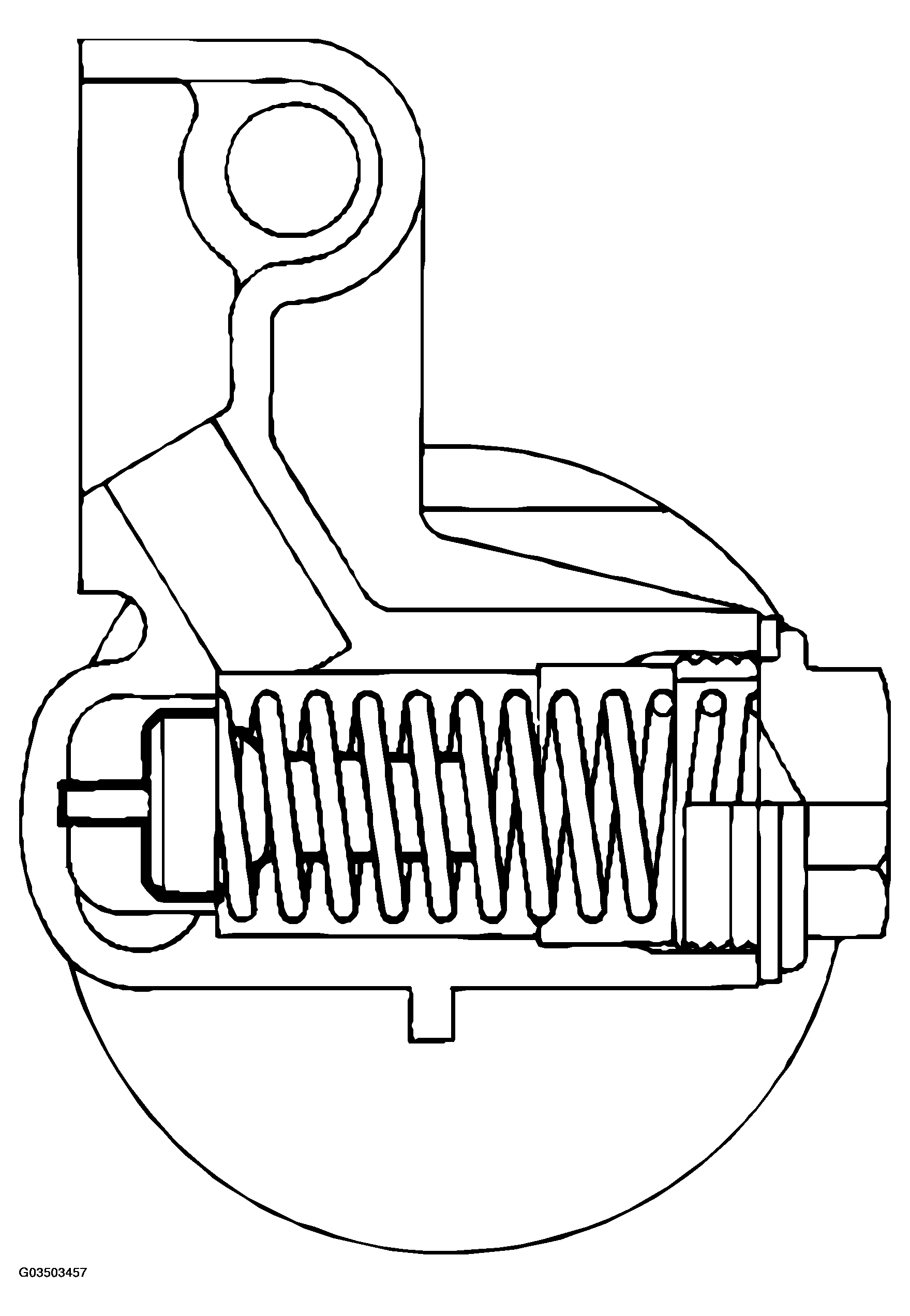

| Oil pump pressure -reducing valve opens at | bar | 3.8 |
| Warning lamp comes on when oil pressure is below | bar | 0.3 - 0.55 |
| B235, B205: Oil pressure at 2000 rpm with warm engine (105+/-2°C/221+/-4°F) and 10W30 oil, minimum | bar | 2.5 |
| End float between oil pump rotor and housing | mm | 0.03 - 0.08 |
| Engine oil cooler thermostat opens at | °C (°F) | 105 +/-2 (221 +/-35.6) |
