Removal (9-3)

  1. Turn off the ignition.
  2. Remove the glove box. See Fig 1 .
  3. Fold back the carpet.
  4. Unplug the connector and remove the screw securing the control module. Remove the control module. See Fig 2 .

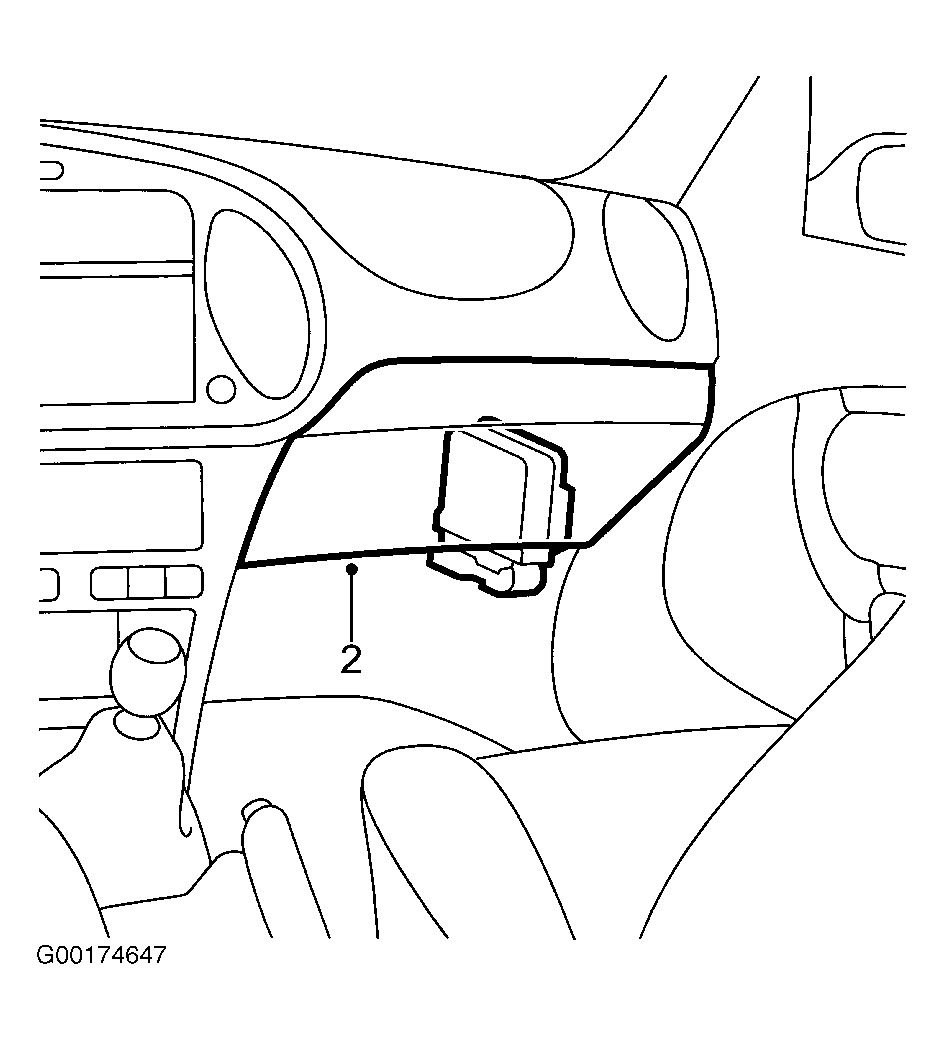

Fig 1: Glove Box & ECM (9-3)
G00174647Courtesy of SAAB-SCANIA OF AMERICA, INC.

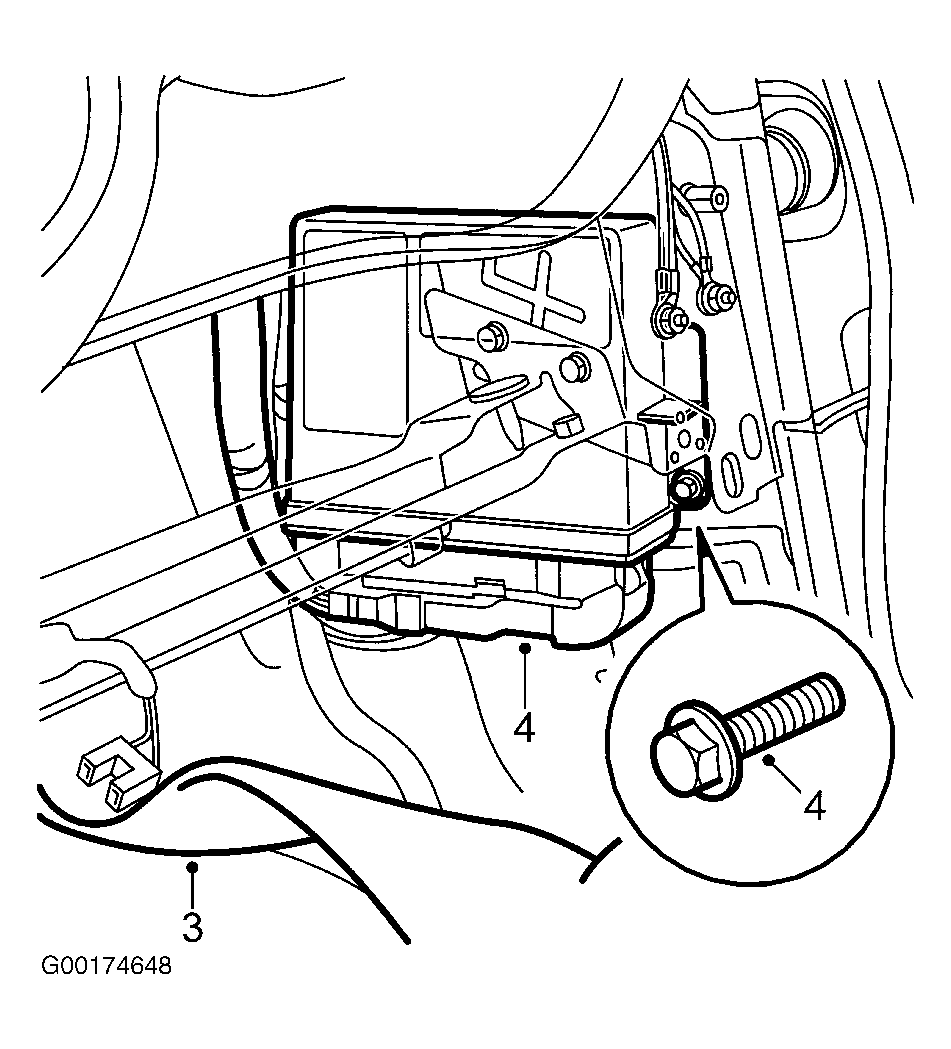

Fig 2: Removing ECM (9-3)
G00174648Courtesy of SAAB-SCANIA OF AMERICA, INC.
