Ignition Discharge Module: Installation

  1. Apply Krytox to the rubber seals and install the ignition discharge module. See Fig 1 .
  2. Install the 4 screws. See TORQUE SPECIFICATIONS  .
  3. Spray the 10-pin ignition discharge module connector with Kontakt 61 contact cleaner. Plug in the connector.

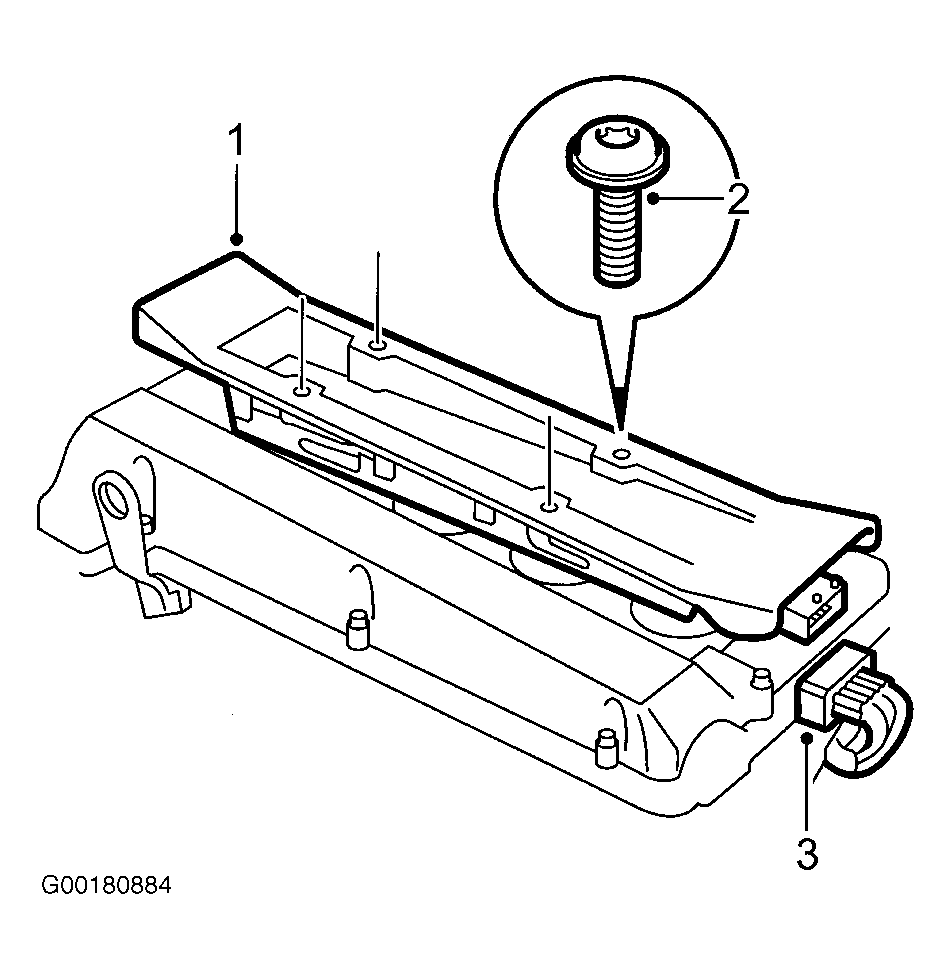

Fig 1: Installing Ignition Discharge Module (4-Cyl)
G00180884Courtesy of SAAB-SCANIA OF AMERICA, INC.


  1. Coat the rubber seals with Krytox.
  2. Spray the connector with Kontakt 61 contact cleaner. Plug in the connector. See Fig 1 .
  3. Install the ignition discharge module.
  4. Install the cover.

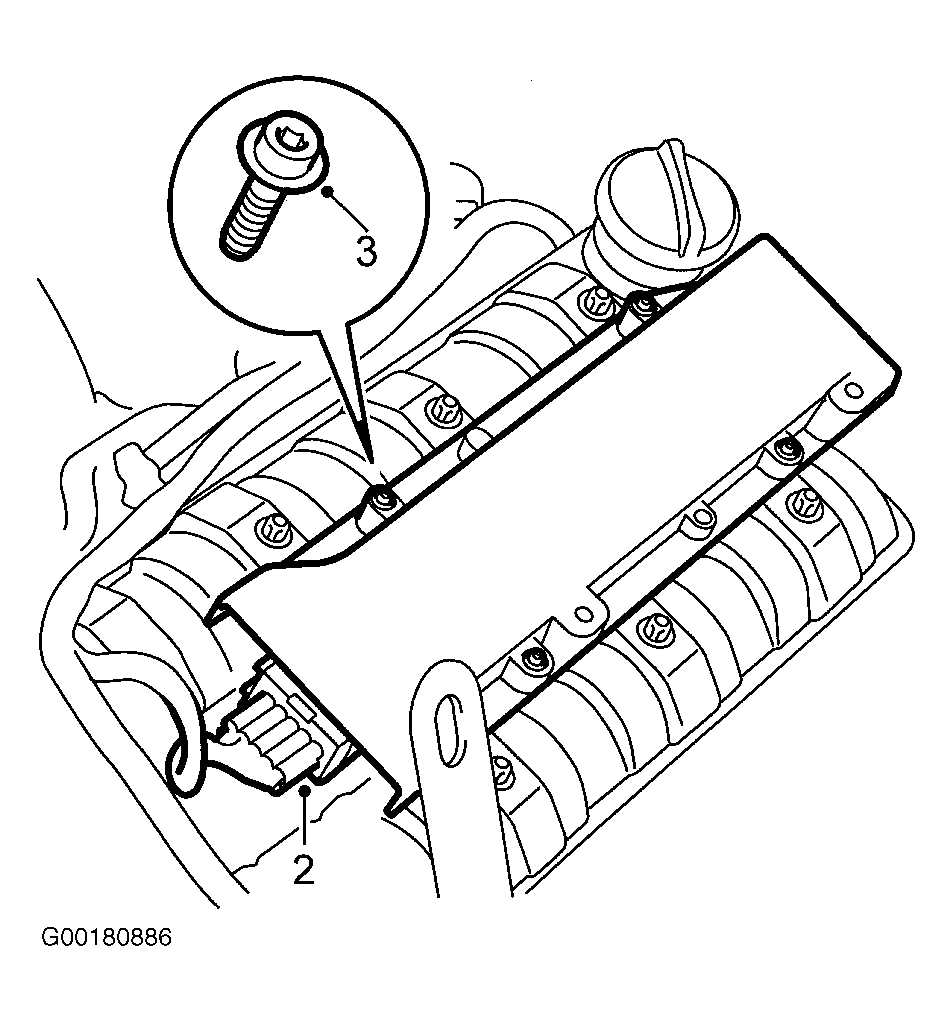

Fig 1: Installing Front Ignition Discharge Module (V6)
G00180886Courtesy of SAAB-SCANIA OF AMERICA, INC.


  1. Coat the rubber seals with Krytox.
  2. Spray the connectors with Kontakt 61 contact cleaner. Plug the connectors into the ignition discharge module. See Fig 1 .
  3. Install the ignition discharge module.
  4. Plug in the connector to the pressure sensor on the intake manifold. See Fig 2 .
  5. Install the cover.

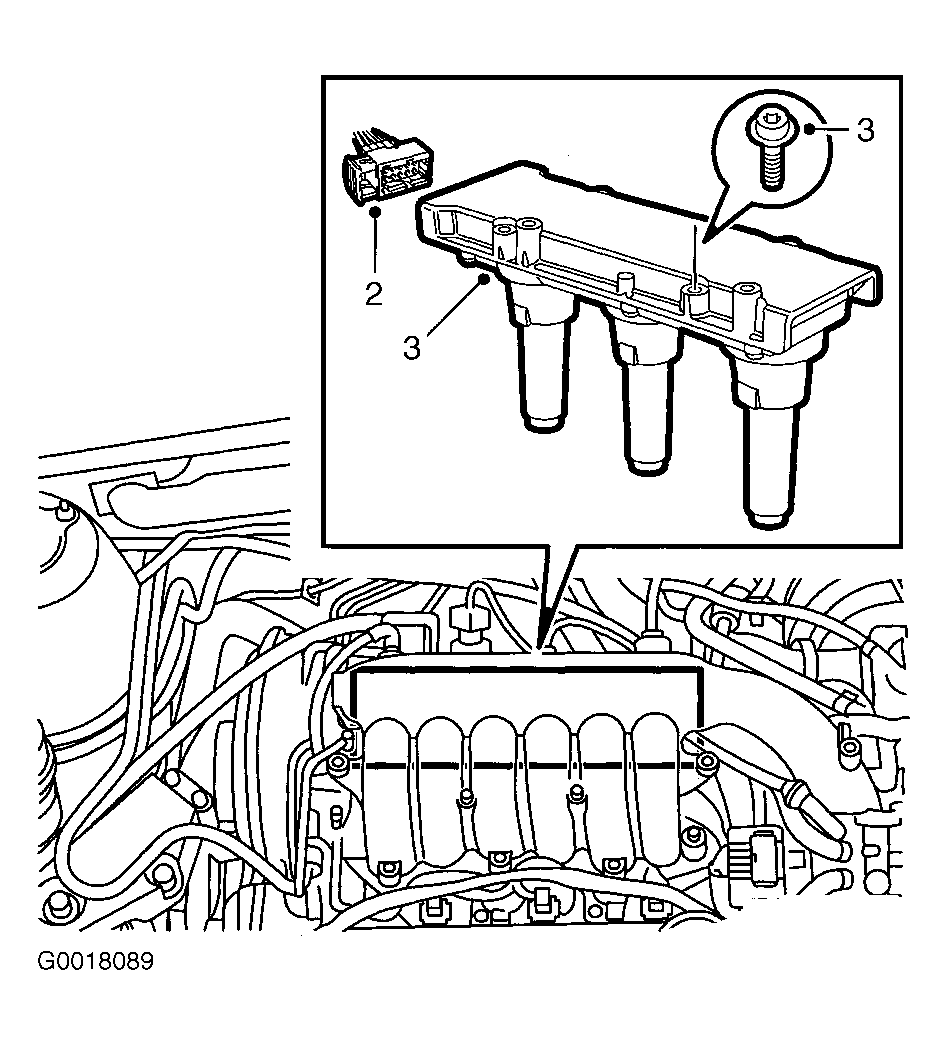

Fig 1: Installing Rear Ignition Discharge Module (V6)
G00180889Courtesy of SAAB-SCANIA OF AMERICA, INC.

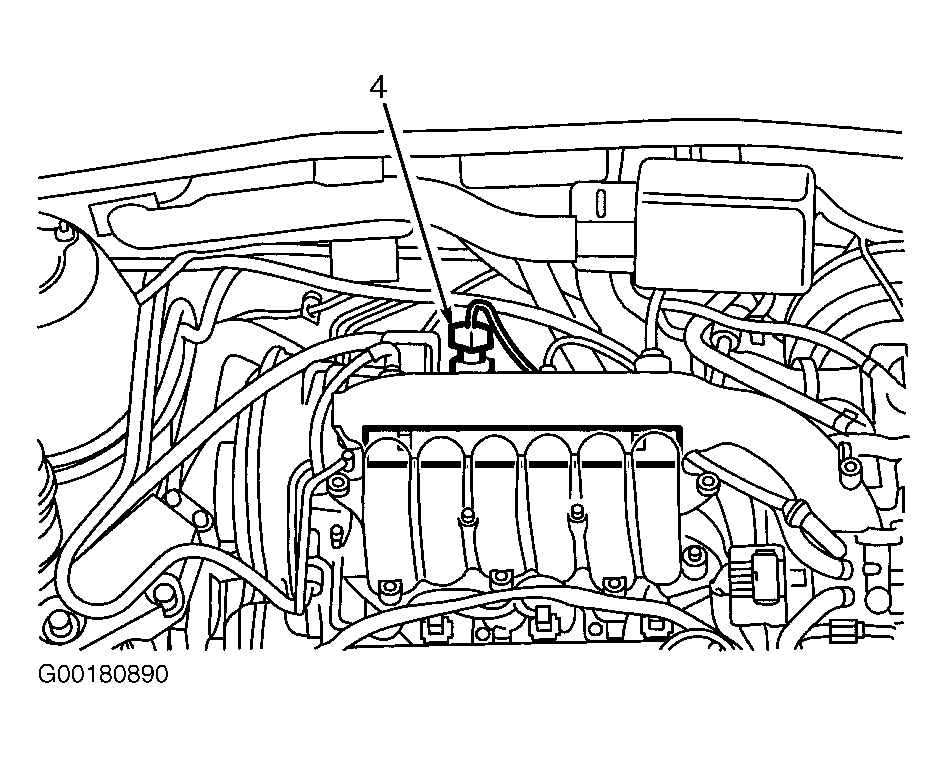

Fig 2: Connecting Pressure Sensor To Intake Manifold (V6)
G00180890Courtesy of SAAB-SCANIA OF AMERICA, INC.
