System Overview, 4 Cyl.: Notes

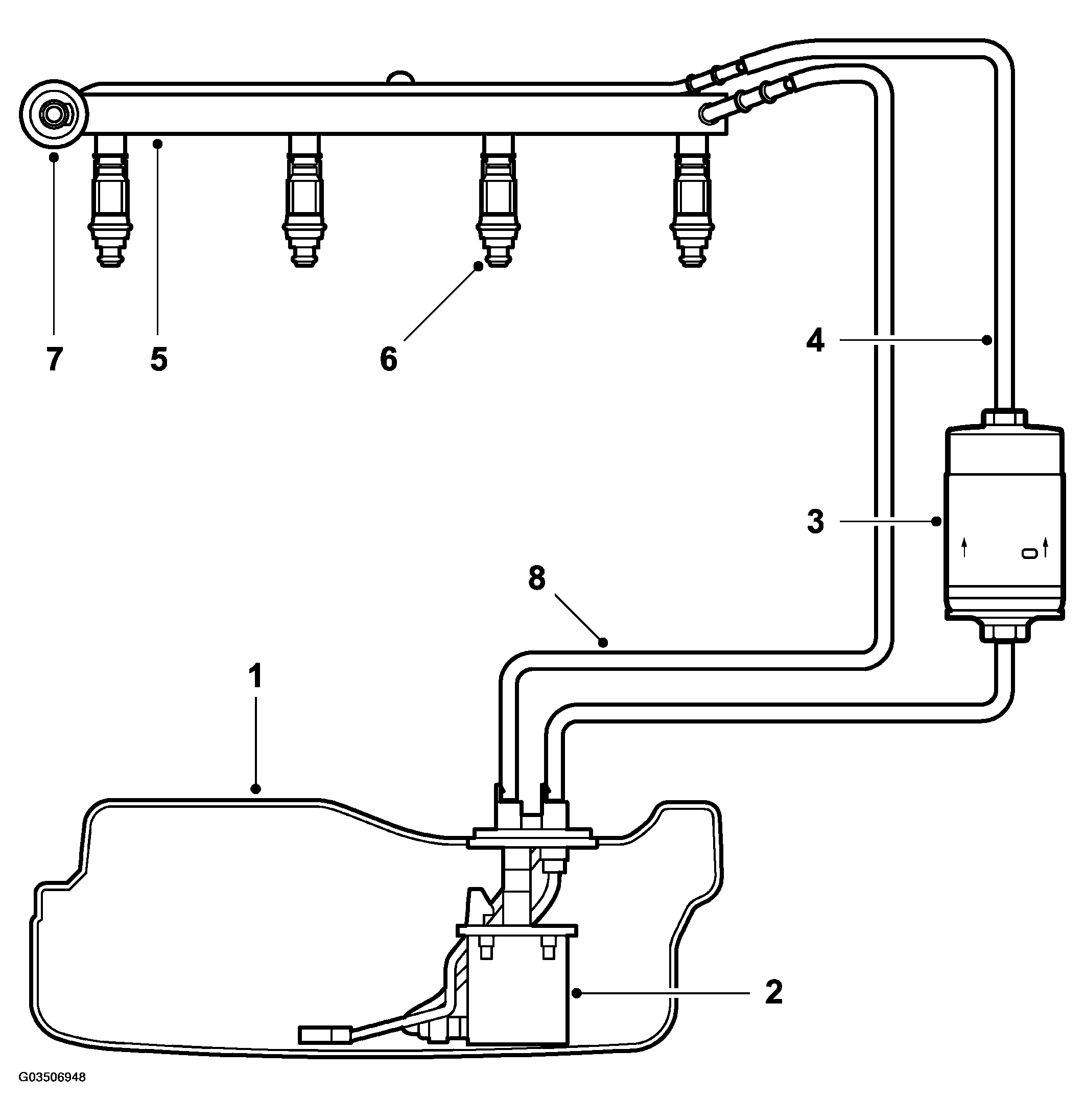

Fig 1: System Overview (4 Cyl)
G03506948Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fuel tank
  2. Fuel pump
  3. Fuel filter
  4. Fuel line, delivery
  5. Fuel rail
  6. Injector
  7. Pressure regulator
  8. Fuel line, return
