Control module, Trionic T7 4-cyl (589b)

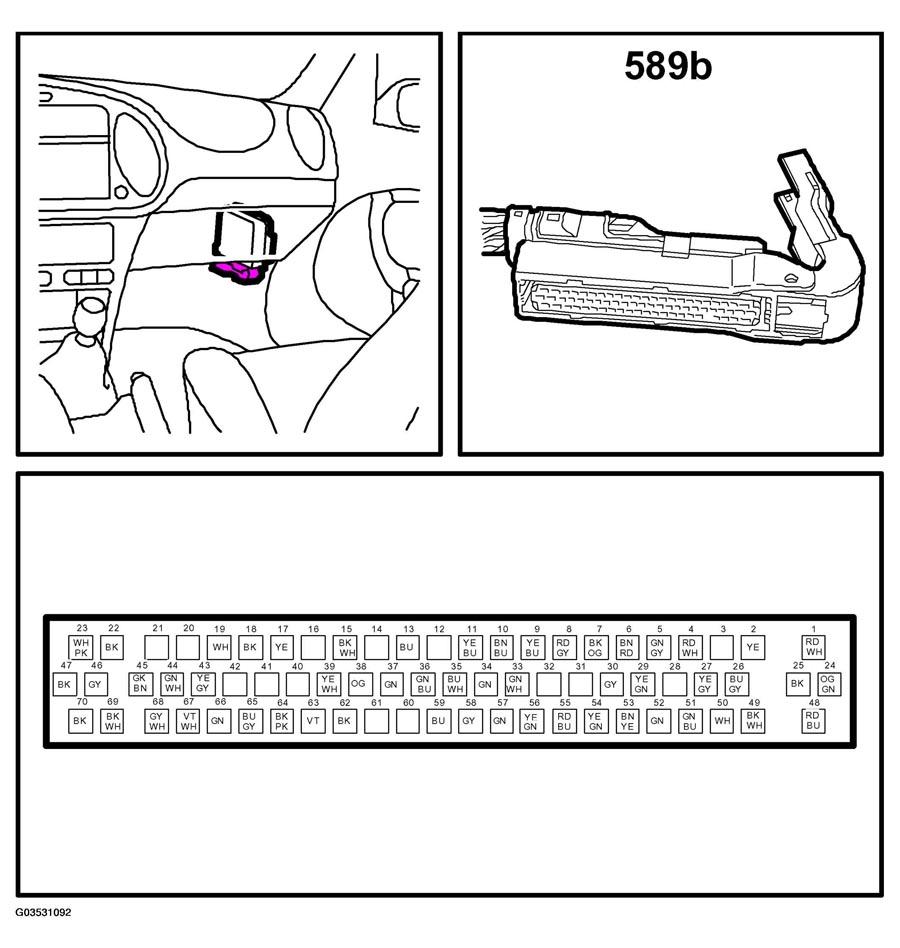

Fig 1: Identifying Trionic Control Module Connector Pin-Outs (4 Cylinder)
G03531092Courtesy of SAAB-SCANIA OF AMERICA, INC.
