To Fit

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

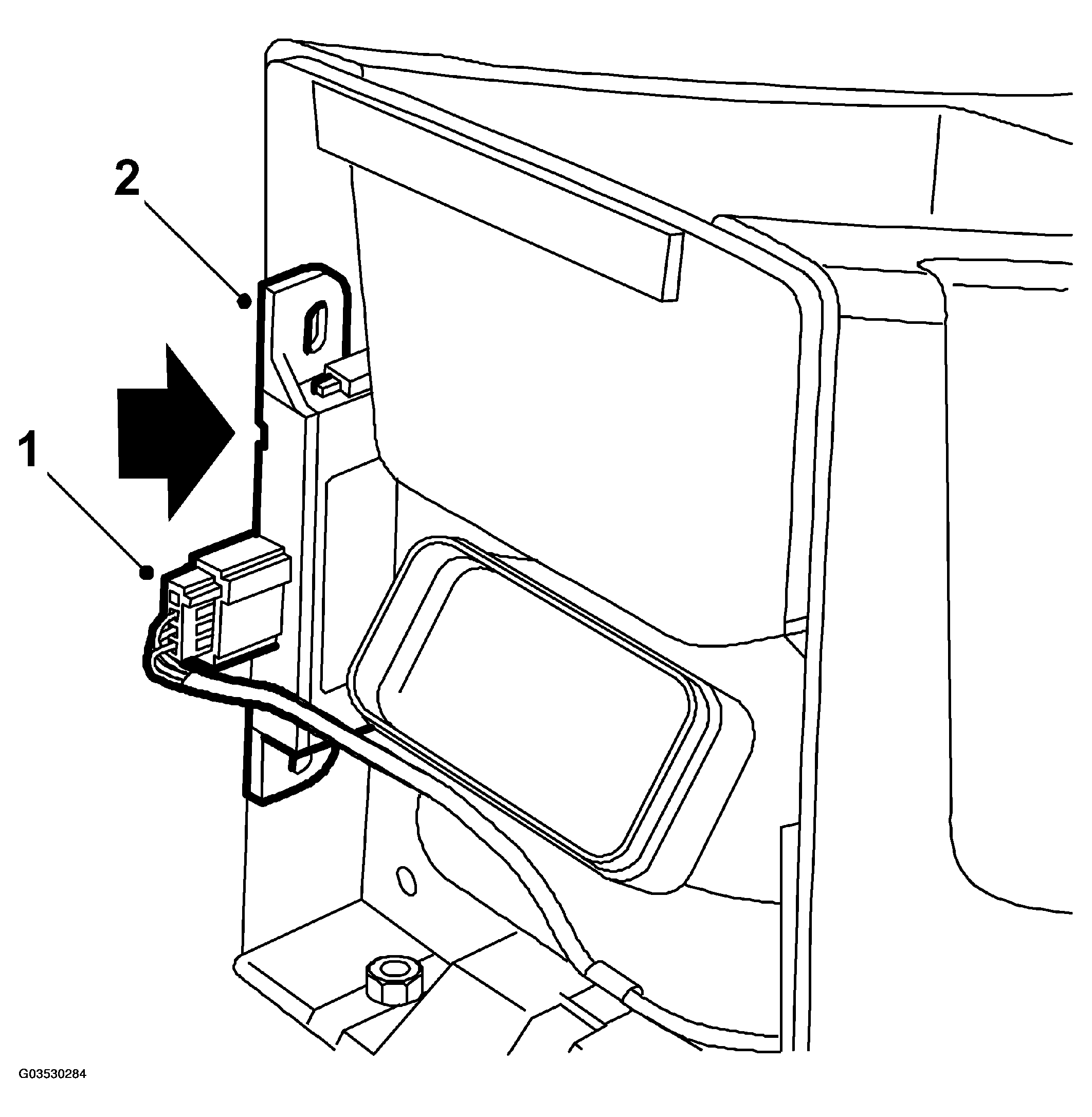

Fig 1: Illustration For Steps 1-2
G03530284Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the connector to the receiver.
  2. Fit the receiver unit.
  3. Fit the rear section of the floor console.

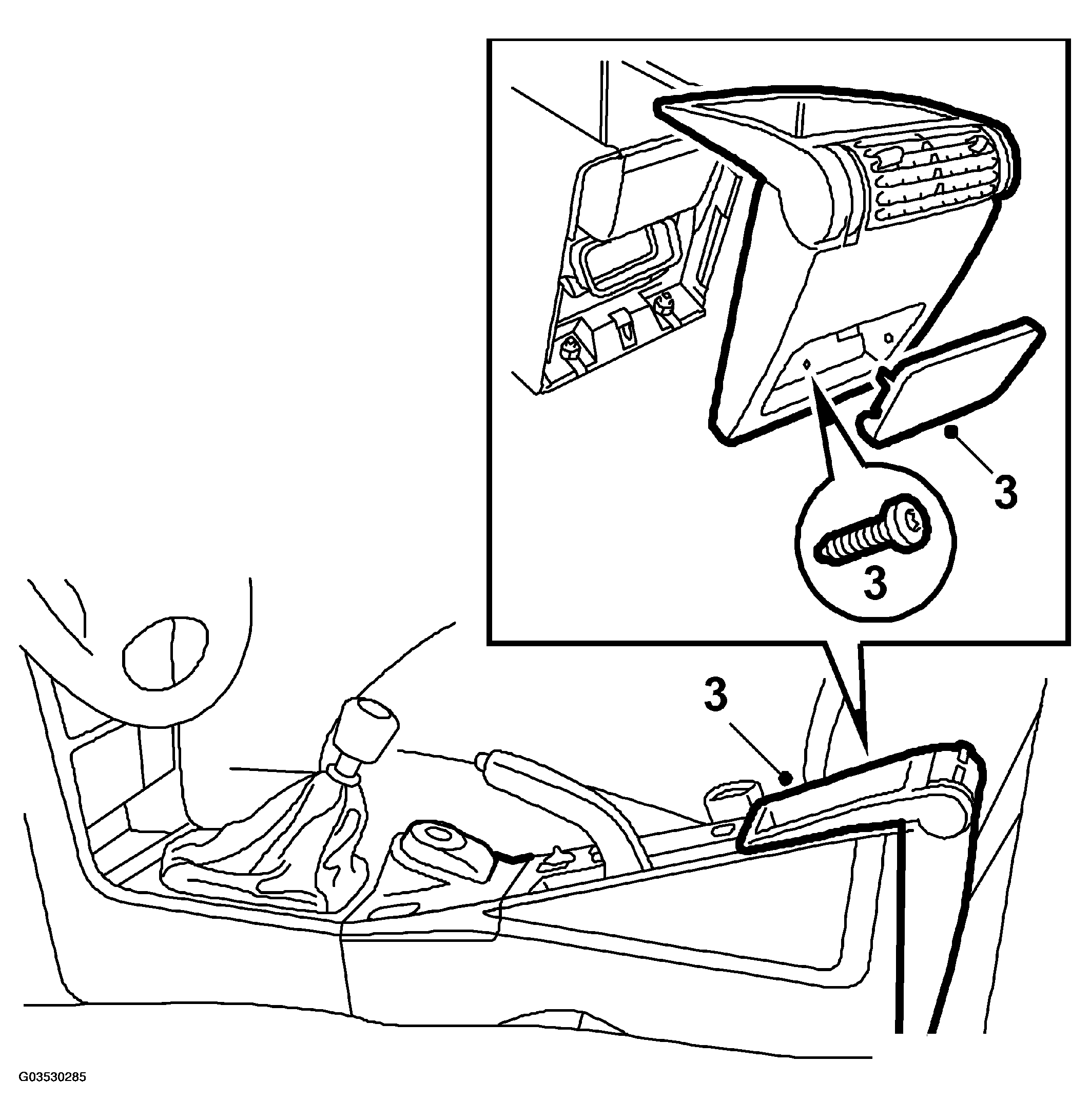

    Fig 2: Illustration For Steps 3
    G03530285Courtesy of SAAB-SCANIA OF AMERICA, INC.
