Petrol engine

The compressor clutch is activated through a voltage feed from relay 156 in the underhood electric center (727) and is grounded through grounding point G7.

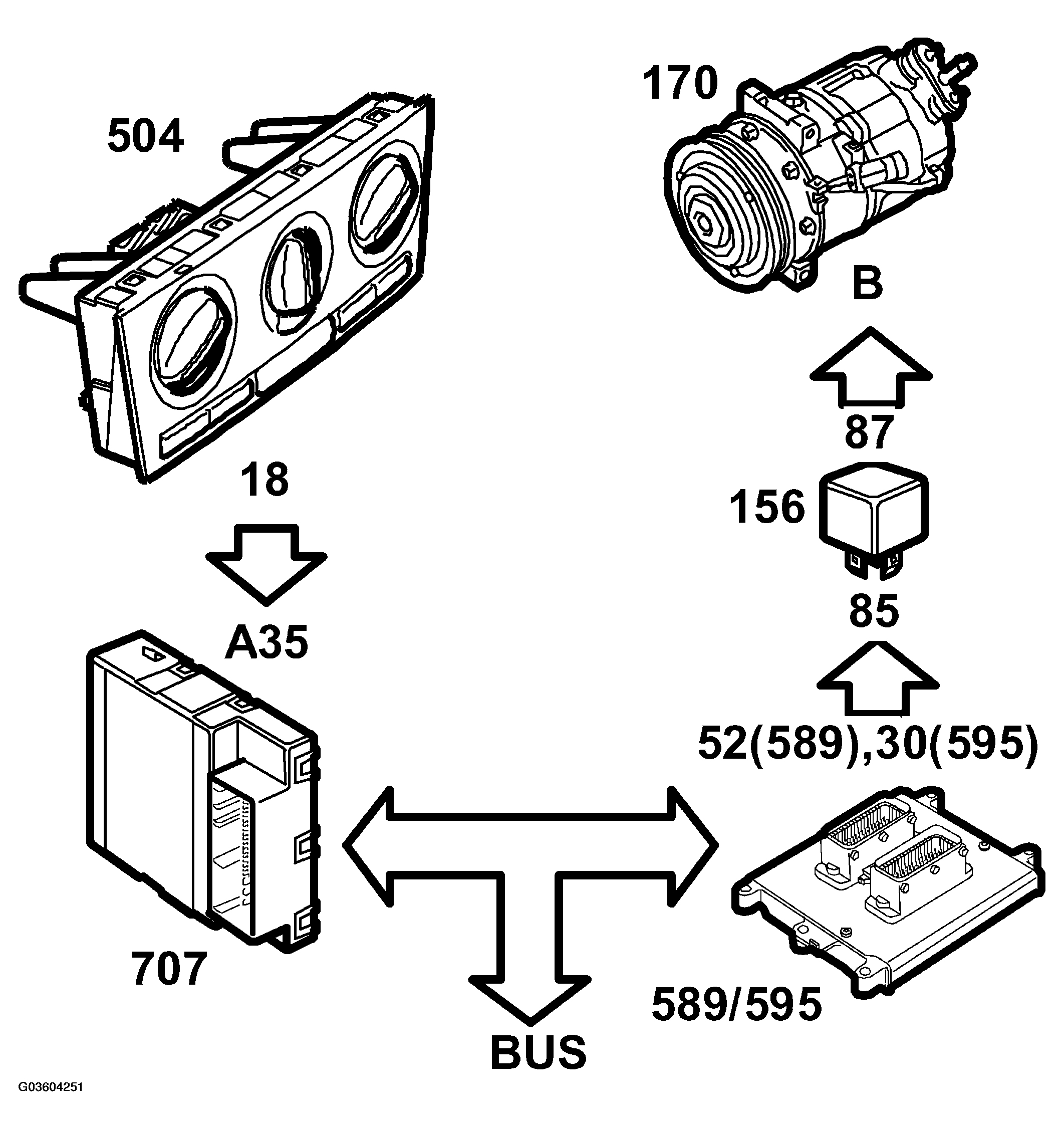

Fig 1: Identifying Compressor Clutch Activation Functional Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

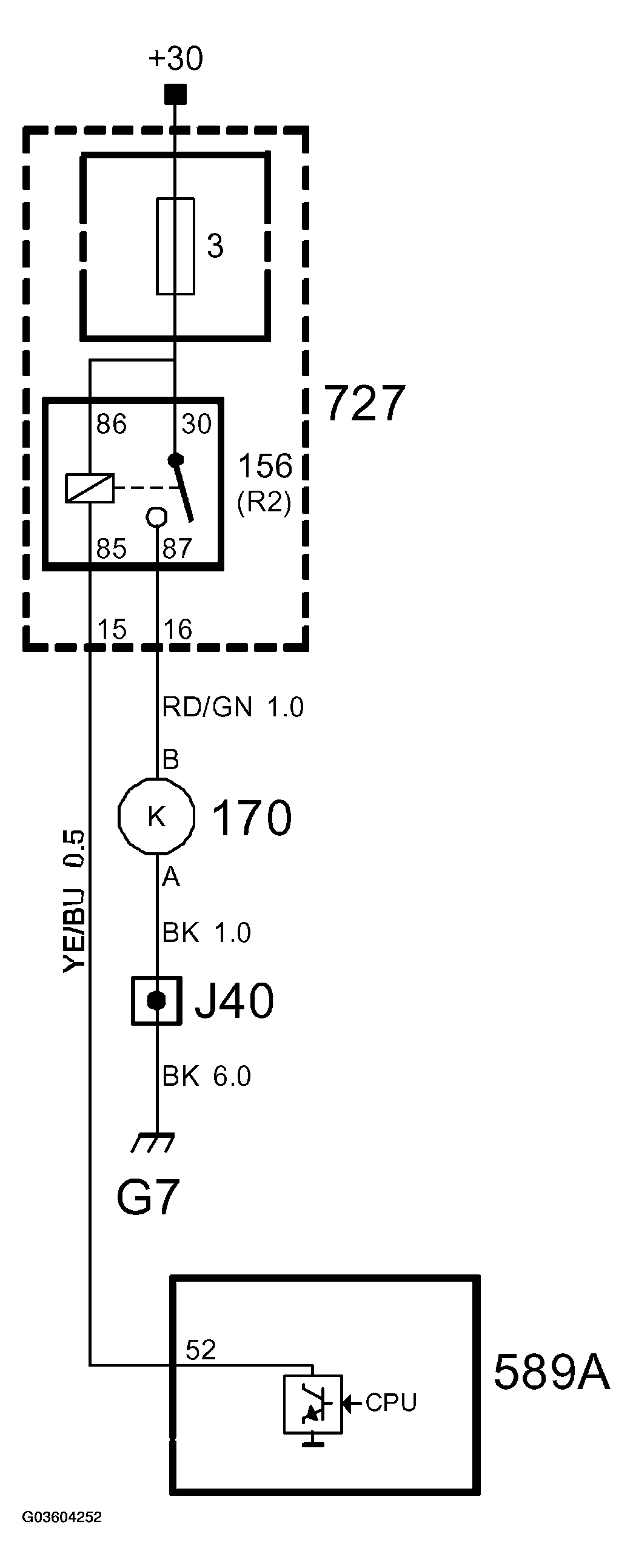

Fig 2: Identifying Compressor Clutch Activation Circuit Diagram - Petrol Engine

Courtesy of SAAB-SCANIA OF AMERICA, INC.
