To remove

Carry out actions before removing control module.

1. Ignition key in LOCK position.

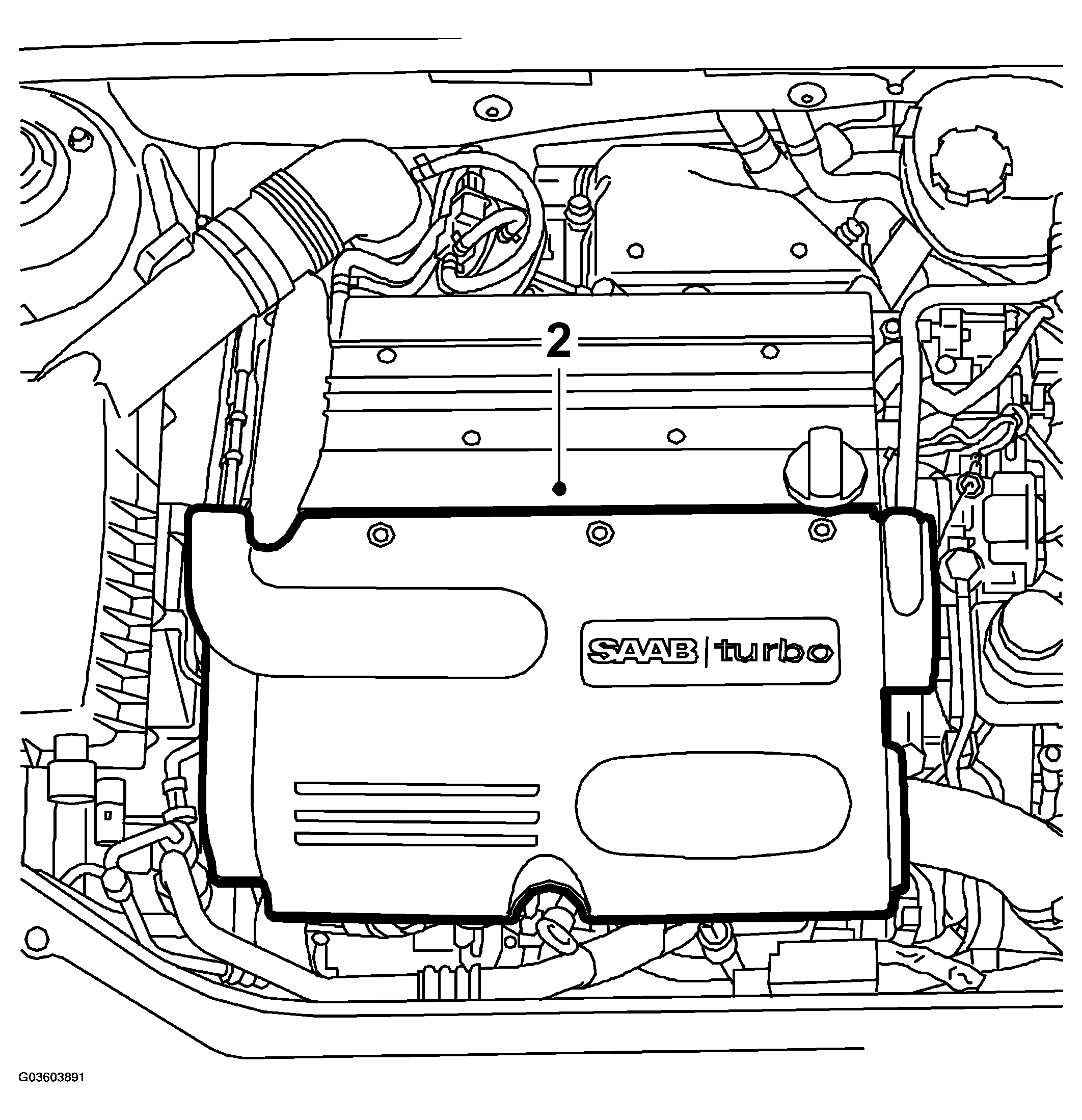

2. Remove the upper engine cover.
   Fig 1: Illustration For Step 2

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

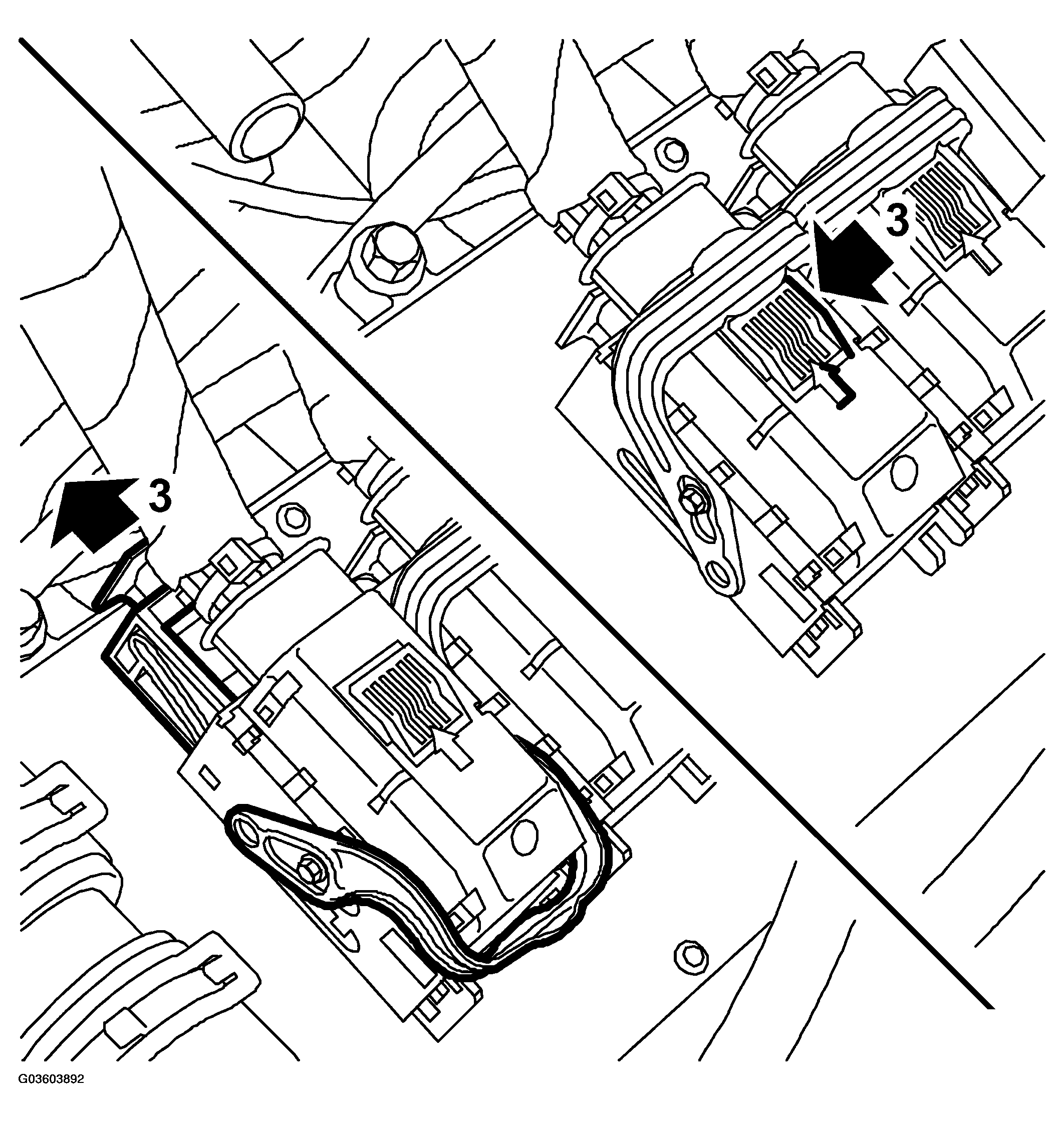

3. Carefully press down the catches and carefully unplug the connectors from the control module one at a time so that the connection pins, etc. are not damaged.
   Fig 2: Illustration For Step 3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

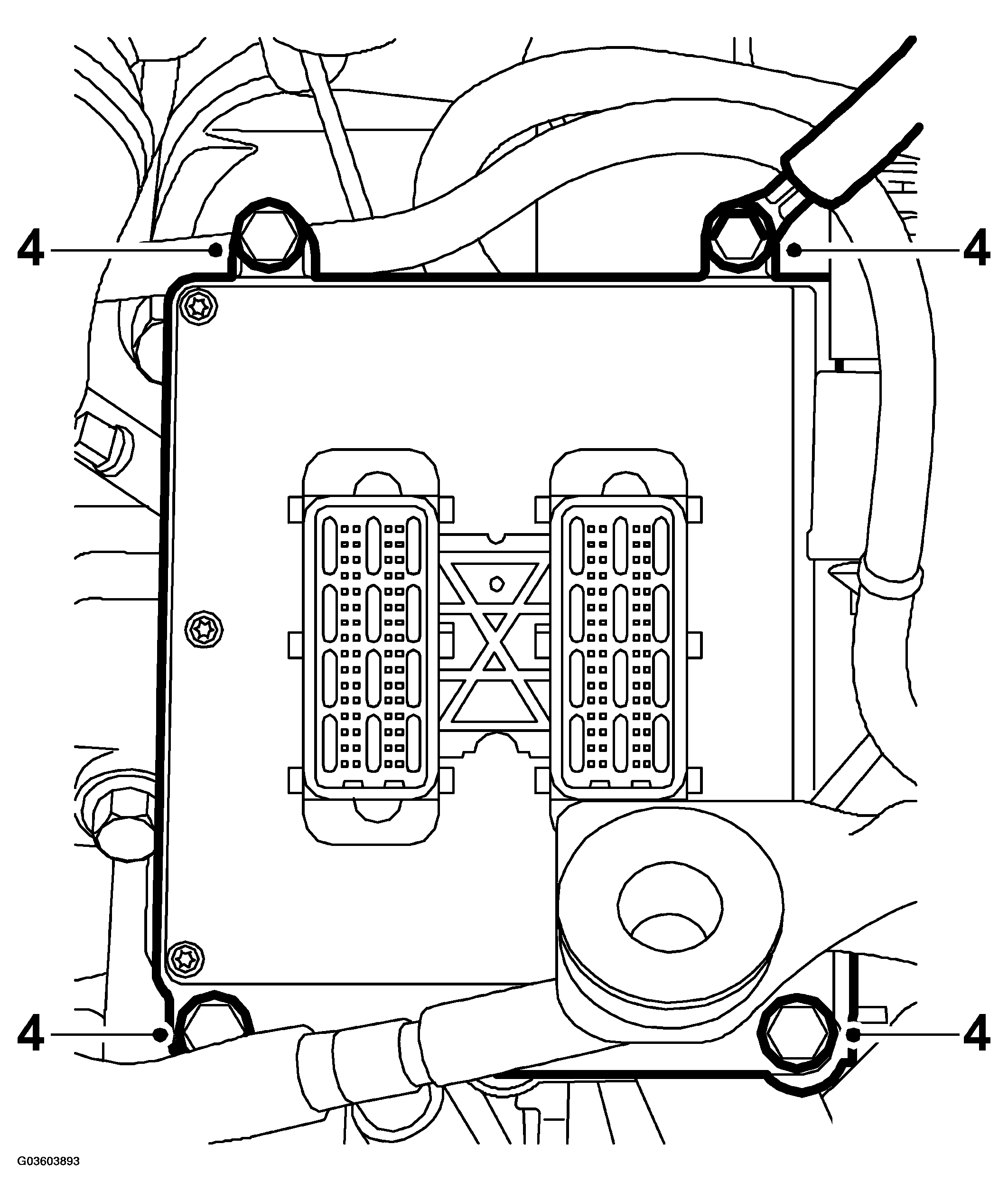

4. Remove the control module.
   Fig 3: Illustration For Step 4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
