Saab
>>
2003
>>
9-3 Vector, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TRIONIC T8 Fuel Control System (Late; 9440)
>>
Component Location
>>
Ignition Switch Module (20)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Ignition Switch Module (20)
Location
: in the floor console between the front seats

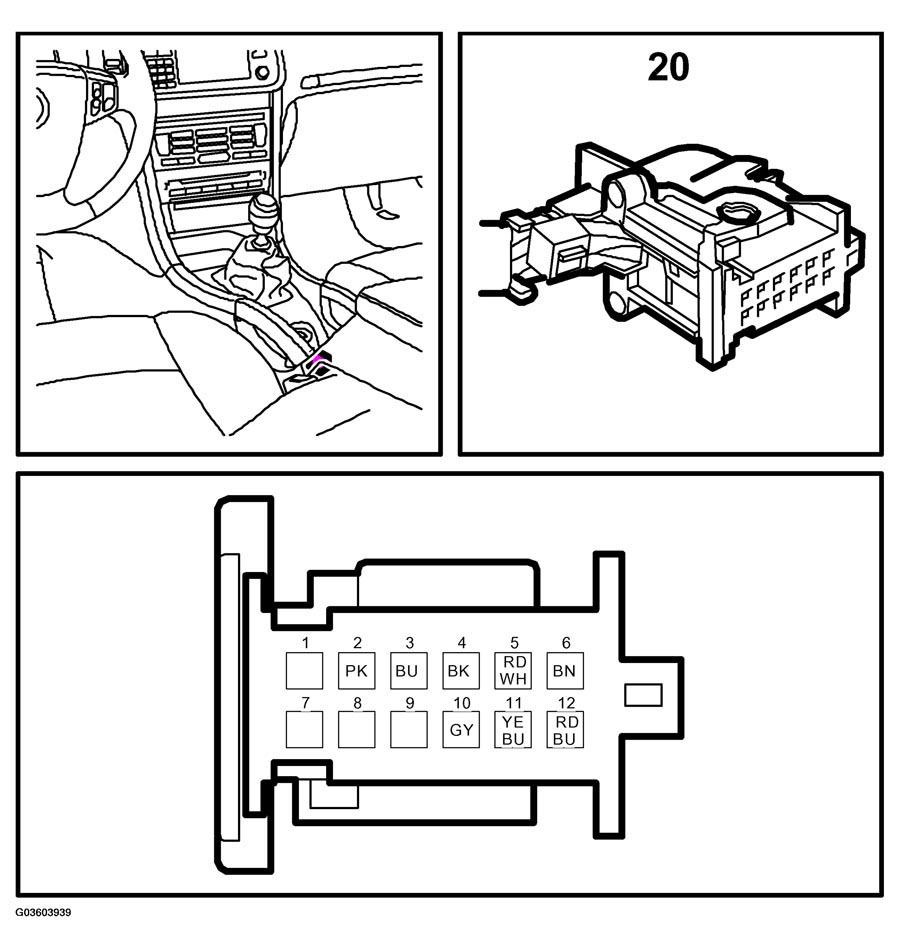

Fig 1: Locating & Identifying Ignition Switch Module (20)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
