Accelerator position sensor (379)

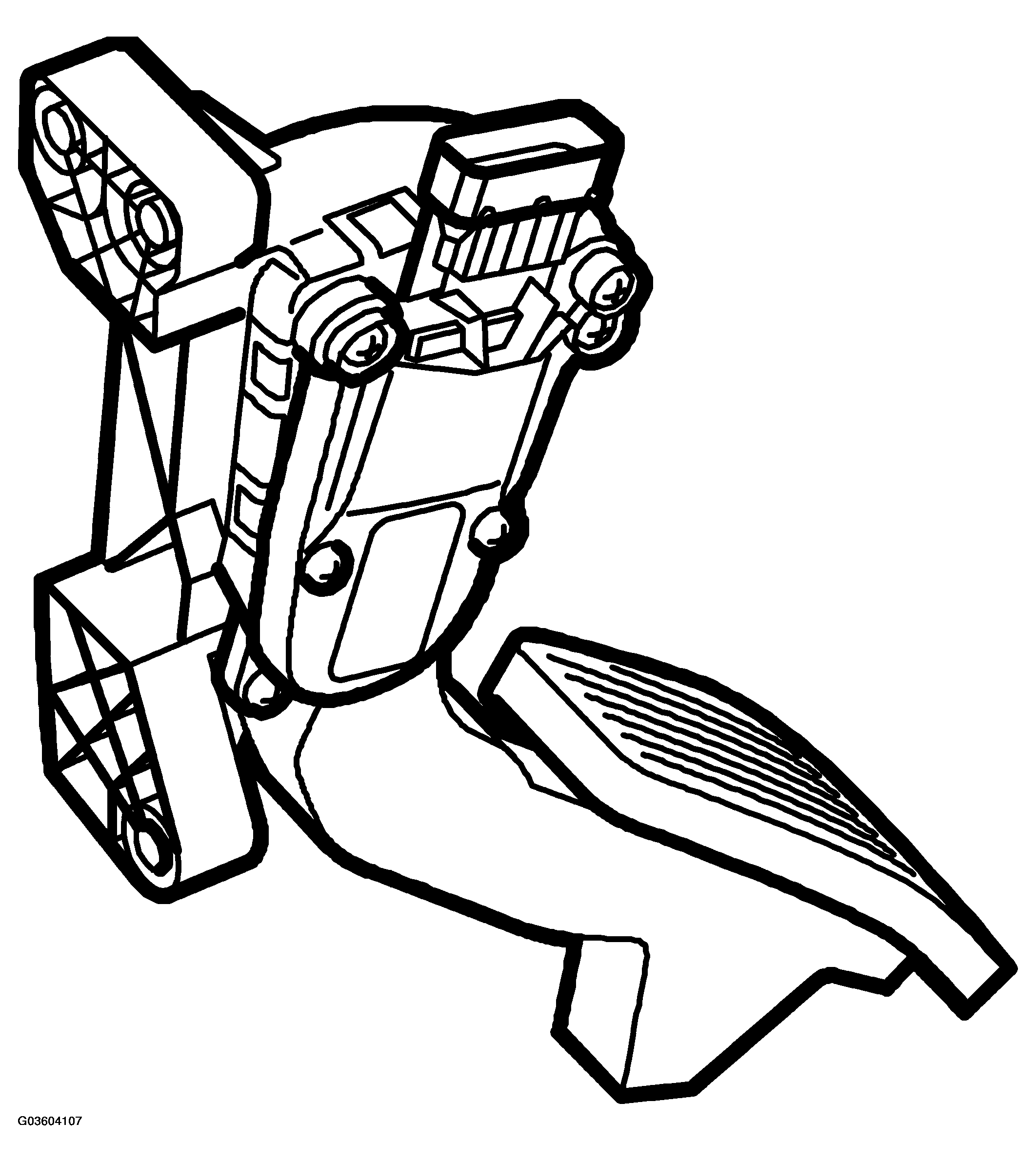

Fig 1: Identifying Accelerator Position Sensor (379)
G03604107Courtesy of SAAB-SCANIA OF AMERICA, INC.
ACCELERATOR POSITION SENSOR TECHNICAL DATA

Sensor resistance P1: 1.2 +/-0.4 kohm
P2: 1.7 +/-0.8 kohm
Power supply
(P1 pin 2, P2 pin 1)		 5,0 V
Signal voltage
(P1 pin 3, P2 pin 6)		 P1: 0-5.0 V
P2: 0-2.5 V
Ground
(P1 pin 4, P2 pin 5)
