Intake air sensor (688), T8: Notes

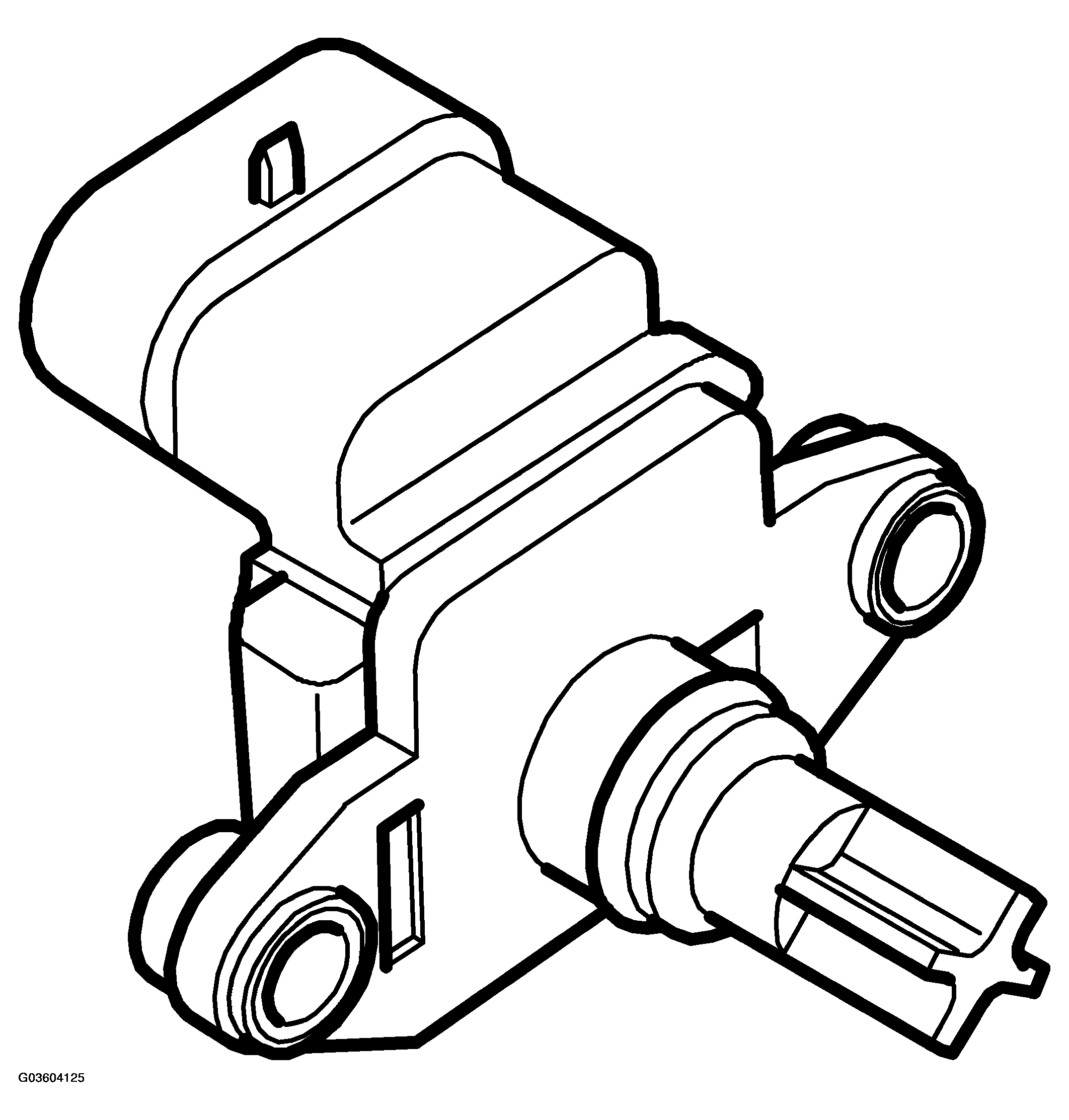

Fig 1: Identifying Intake Air Sensor (688), T8
G03604125Courtesy of SAAB-SCANIA OF AMERICA, INC.

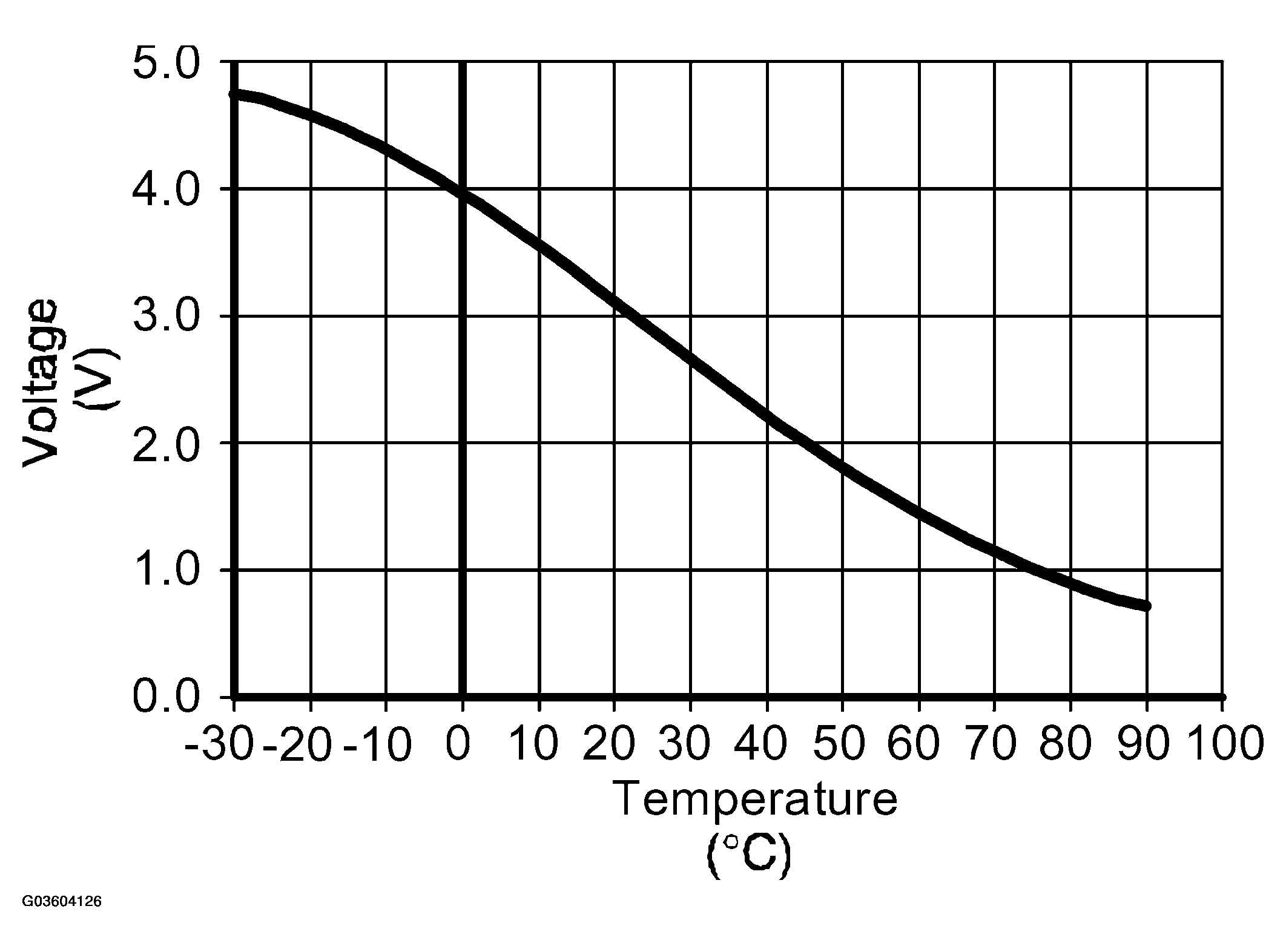

Fig 2: Identifying Intake Air Sensor Voltage/Temperature Graph
G03604126Courtesy of SAAB-SCANIA OF AMERICA, INC.

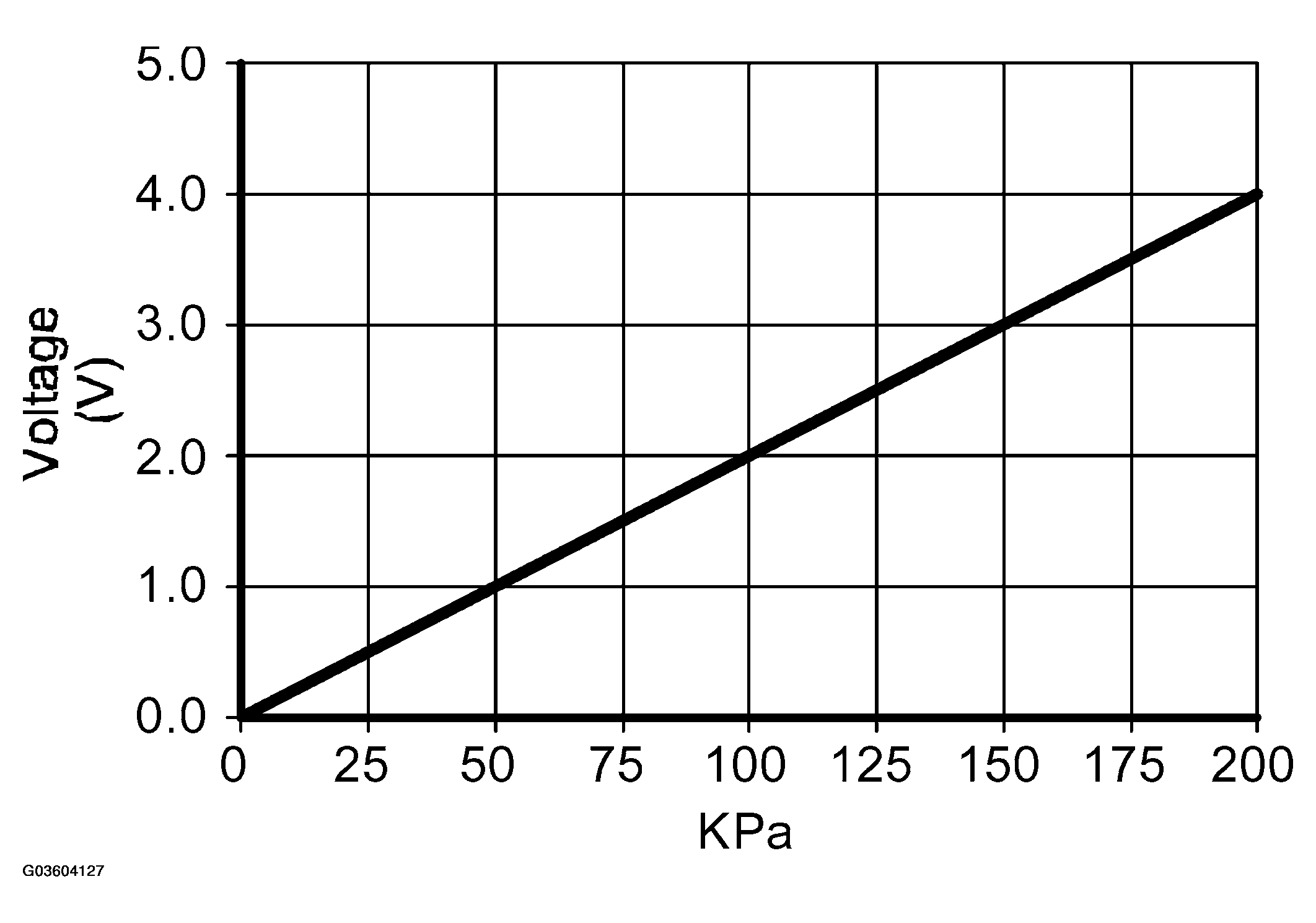

Fig 3: Identifying Intake Air Sensor Voltage/kPa Graph
G03604127Courtesy of SAAB-SCANIA OF AMERICA, INC.
