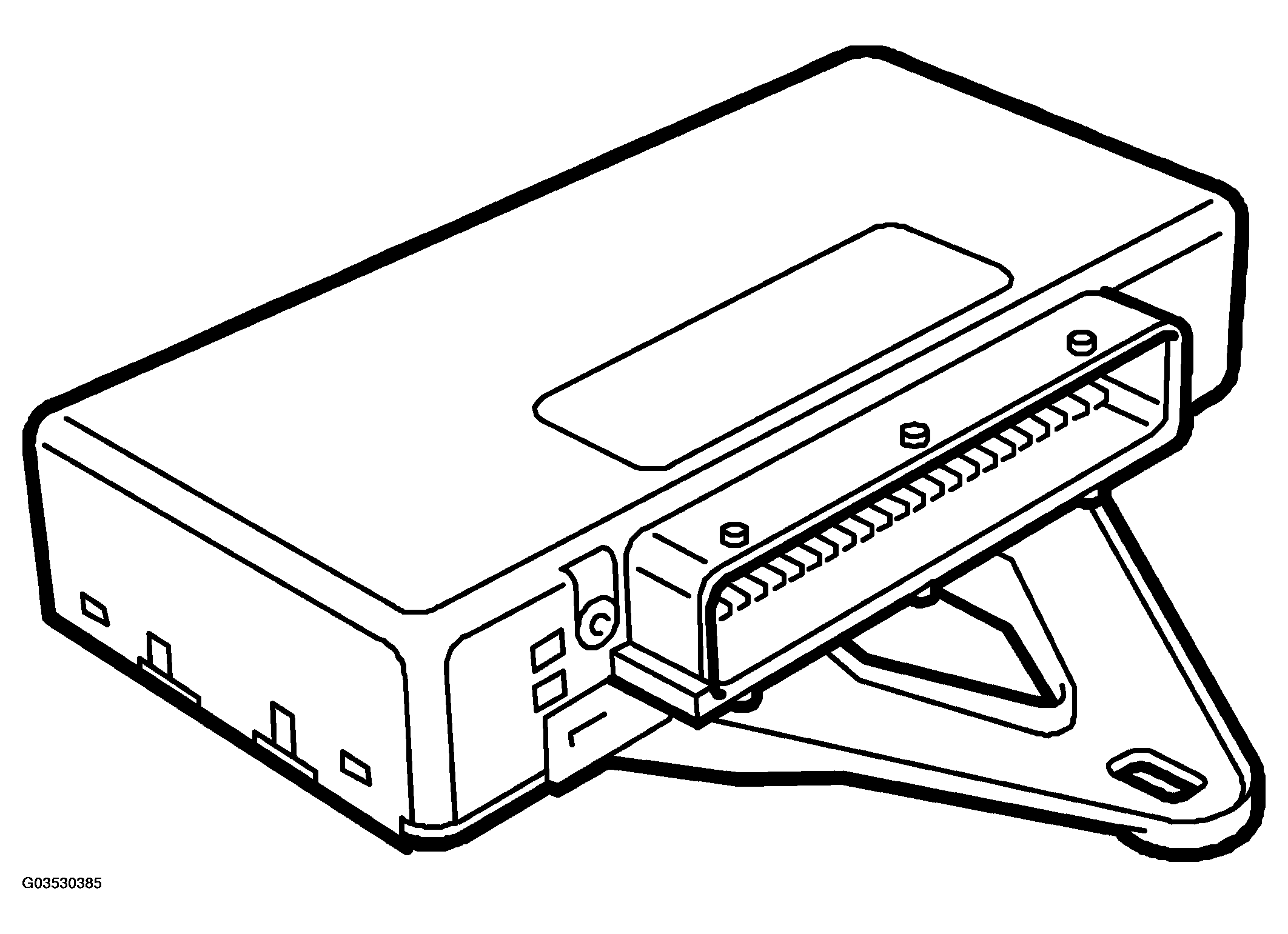

Control Module, TWICE
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
TOOLS COMPATIBILITY DESCRIPTIONS
| Location | Under left-hand front seat, screwed to the floor |
| Number of pins | 70 |
| Power supply (+30 circuit) | Pin No. 43 |
| Power supply +15, logic/key position | Pin No. 16 |
| Power supply +B, logic/key position | Pin No. 17 |
| Power ground | Pin No. 70 |
| Signal ground | Pin No. 37 |
| Instrument bus, I-BUS (+) | Pin No. 38 |
| Instrument bus, I-BUS (-) | Pin No. 15 |
