Remote Control, Programming

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

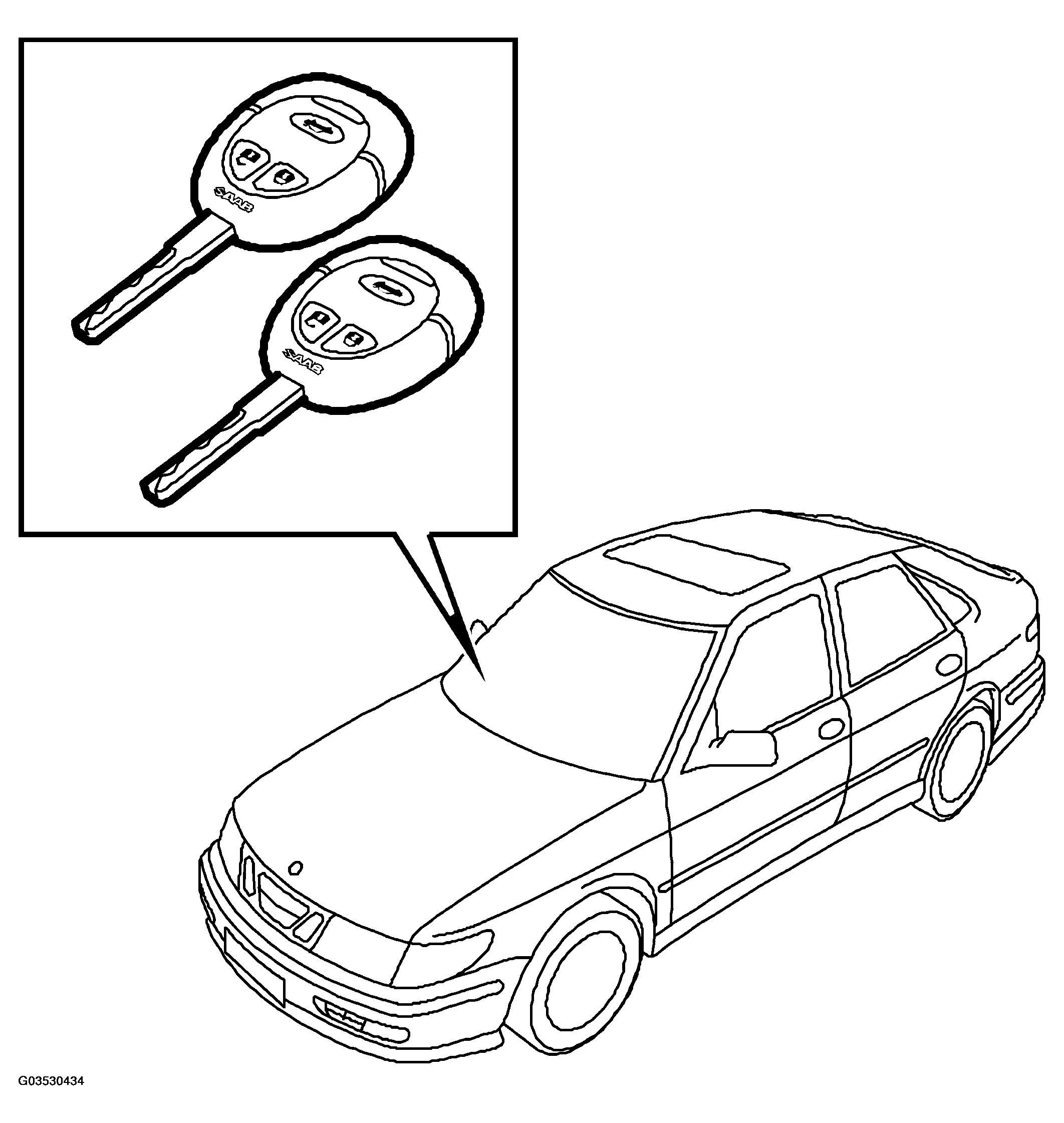

Fig 1: Identifying Remote Control
G03530434Courtesy of SAAB-SCANIA OF AMERICA, INC.

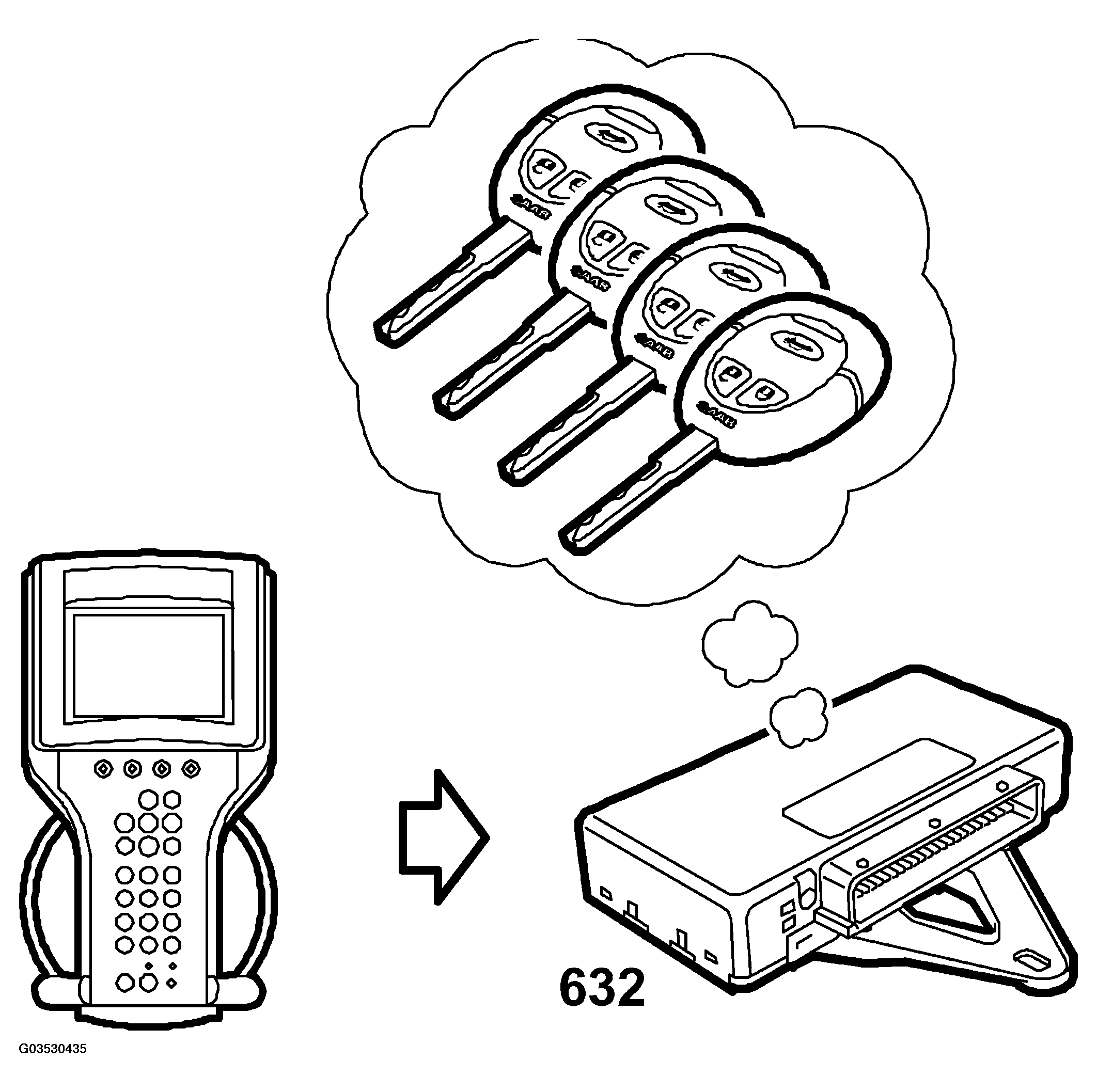

Fig 2: Communication Diagram - Remote Control, Programming
G03530435Courtesy of SAAB-SCANIA OF AMERICA, INC.

The remote control for the car must be programmed (coded) for that particular car.

When the car is delivered, 2 already programmed remote controls are supplied. It is possible to have another 2 remote controls (4 in all) for the car. Programming is performed with the diagnostics instrument.

The number of pre-programmed remote controls can be checked by pressing the TAILGATE button on the remote control when the ignition key is in the ON position. SID will normally display 2 REMOTE KEY for 5 seconds. The number of key transponders is also displayed, e.g. 2 TRANSPDR.
