To remove

  1. Remove the center console  .
  2. Remove the selector lever casing  .

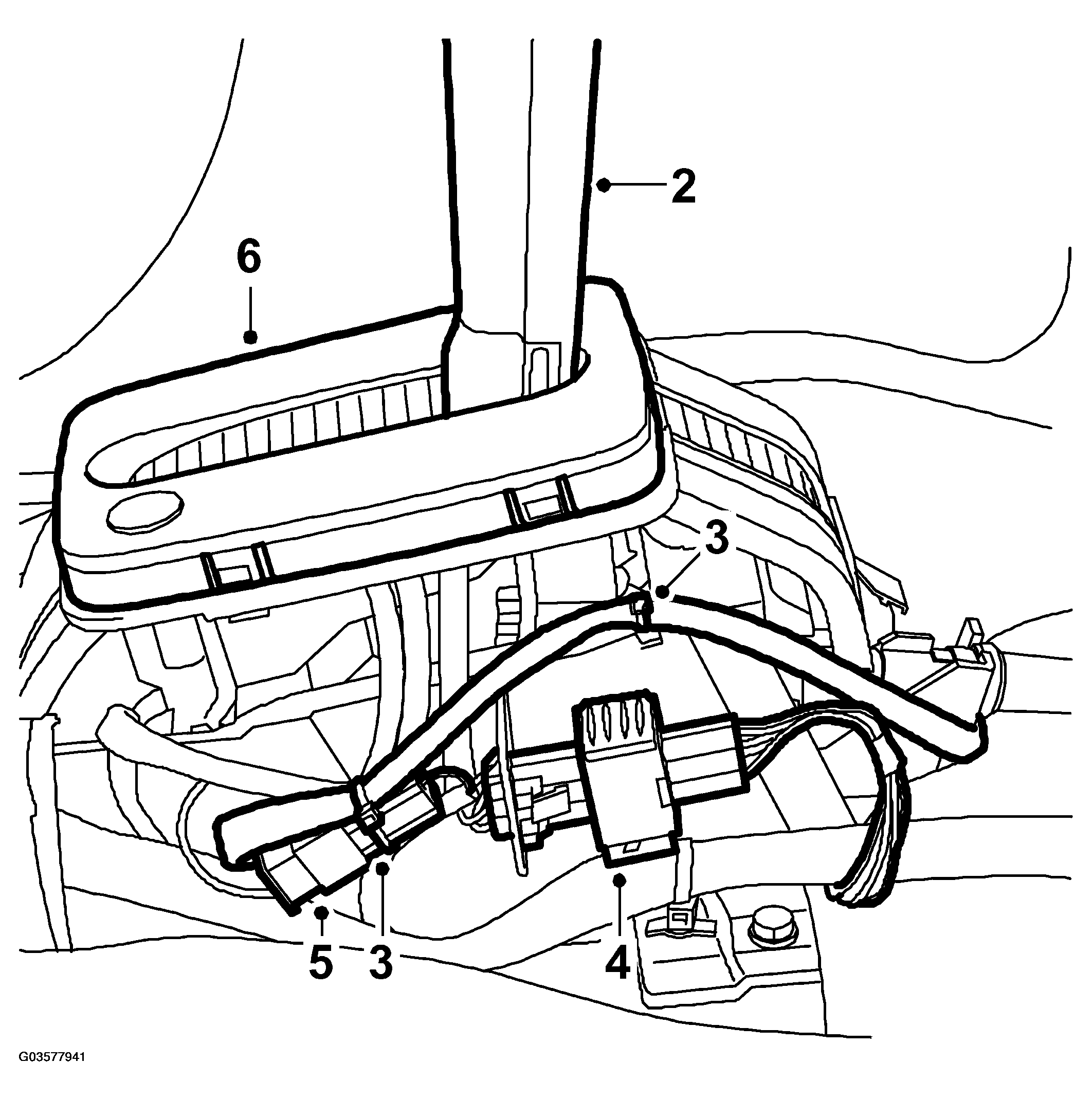

    Fig 1: Illustration For Steps 2-6
    G03577941Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Cut the cable ties.
  4. Undo the 6-pin connector, remove it from the bracket and remove the wires from pins 4, 5 and 6.
  5. Remove the wire from pin 2 of the 2-pin connector.
  6. Undo the catch on the front edge and hook out the light box from the rear edge. Keep the spring in a safe place.
