To remove

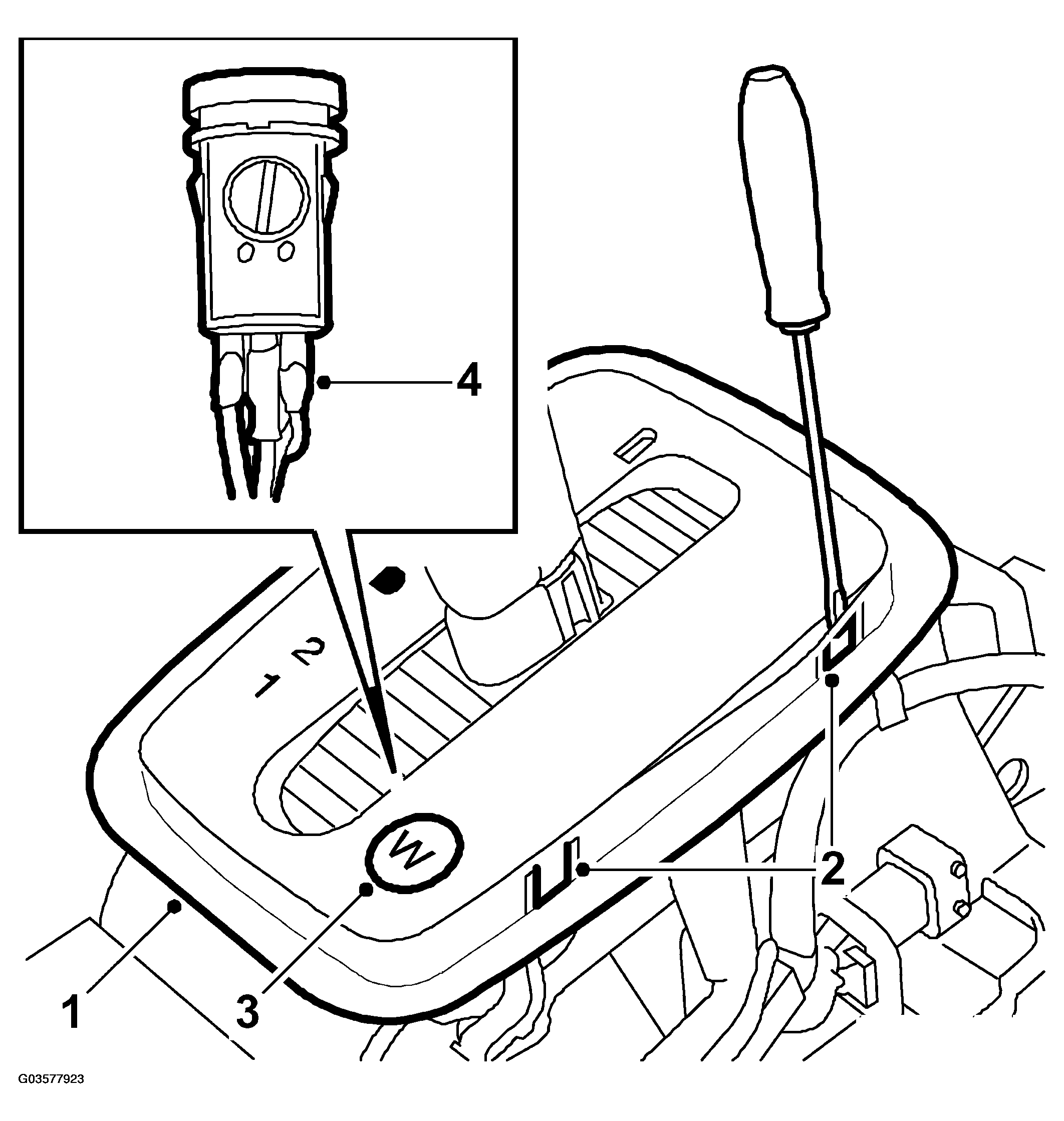

Fig 1: Illustration For Steps 1-4
G03577923Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the rim around the indicator display.
  2. Carefully press in the 4 catches and lift up the indicator display.
  3. Press out the WINTER button from the indicator display.
  4. Move the protective tubing from the soldered joint on the center wire and unsolder the wiring.
    NOTE: Protect the indicator display when soldering
