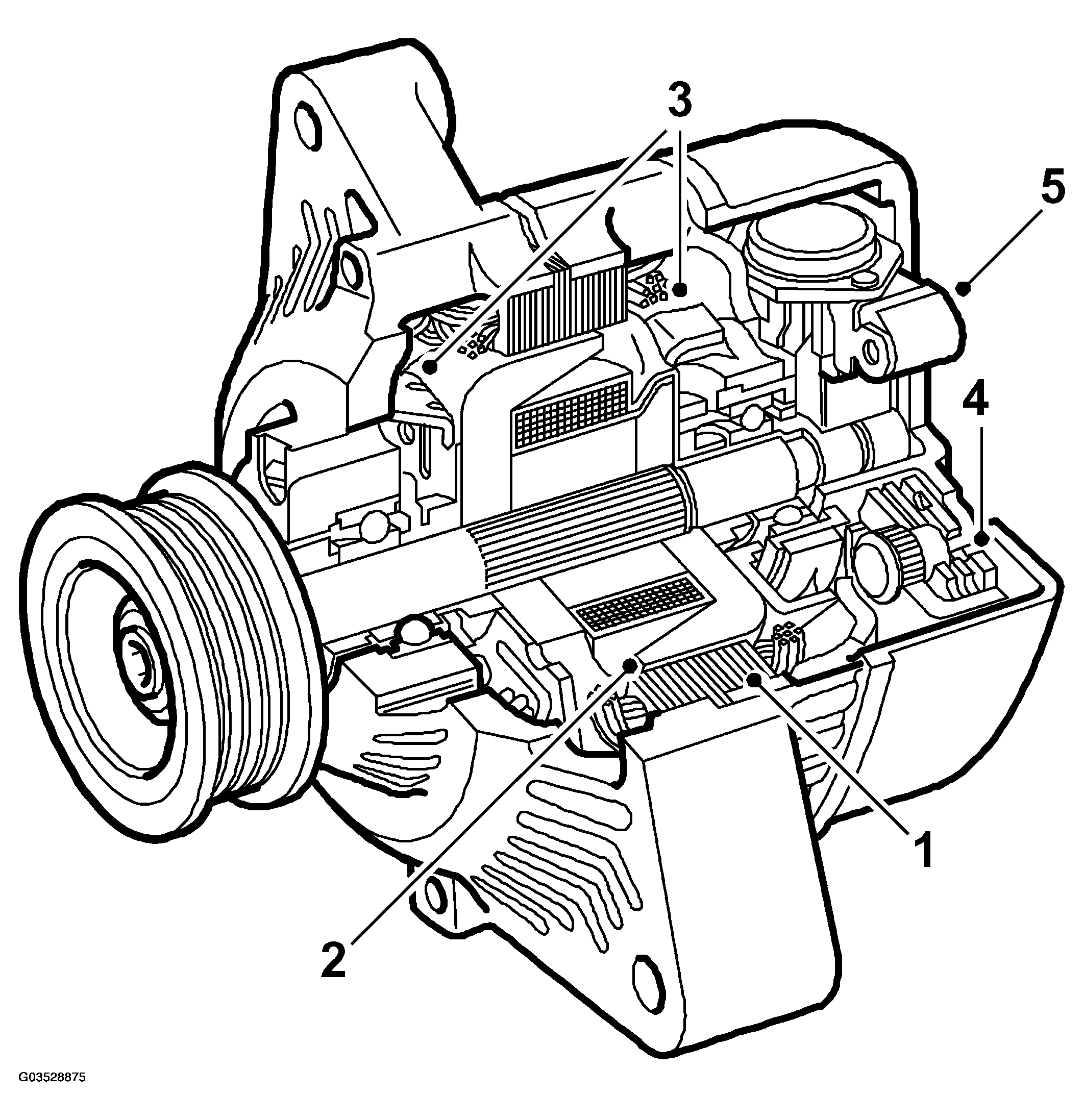

Generator Design: Notes

1. Stator
2. Rotor with slip rings
3. Integral fans
4. Rectifier unit
5. Voltage regulator

The generator is of AC type, with a built-in charge regulator.

The generator is driven by the engine via a multigroove V-belt from the crankshaft pulley.

The gear ratio is 1:2.8 for petrol engines and 1:2.9 for diesels.

Three different generators are available for the Saab 9-3:

• 90 Ampere
• 120 Ampere
• 130 Ampere

The 120 A generator being used in diesel-engined vehicles.
