Fog lights: Programming
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

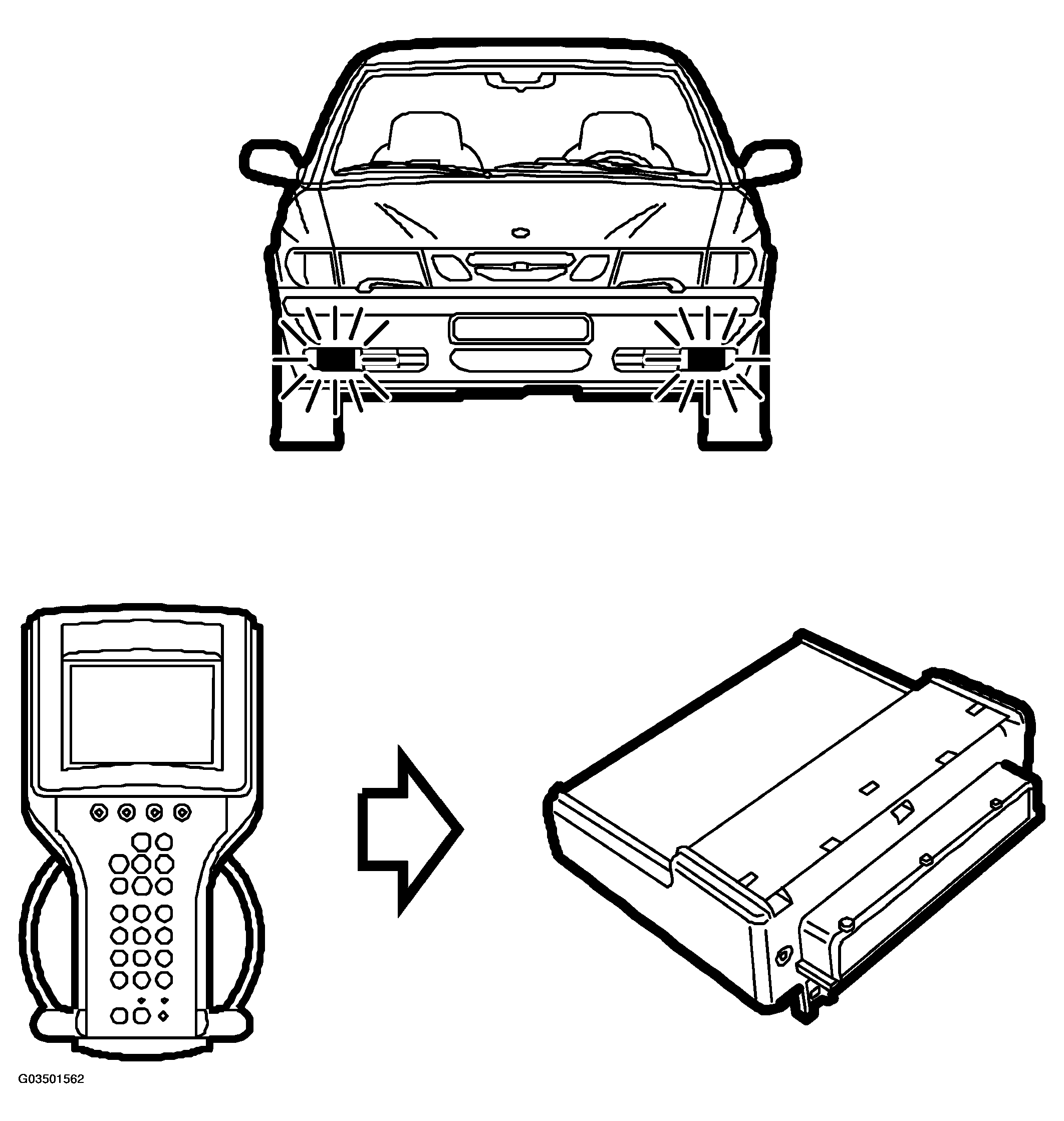

The DICE system can be programmed for three different types of fog light logic:
- Alternative 1 - The front fog lights can be turned on independent of the main and dipped beams if the light switch (10) is in position 1 or 2.
- Alternative 2 - The front fog lights can be turned on when the main beam is on. The light switch must be in position 2 for headlamp alternative 3 and position 1 or 2 for headlamp alternatives 1 and 2.
- Alternative 3 - The front fog lights can be turned on if the light switch is in position 2 and the main beam is on or if the light switch is in position 1 (no headlamps).
