Interior lighting
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL DATA - INTERIOR LIGHTING

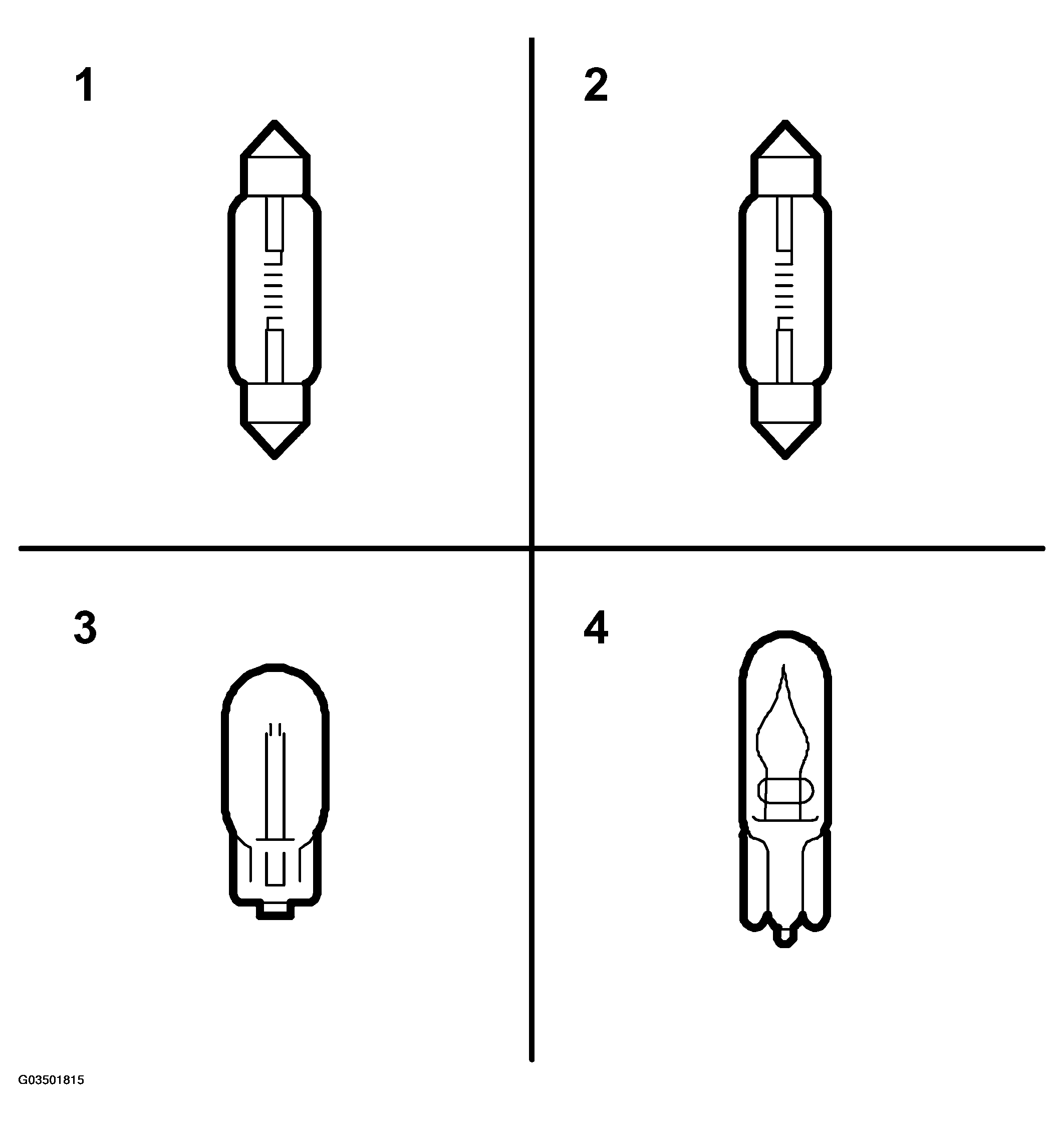

| Application | Rating (W) | Fitting | Position |
|---|---|---|---|
| Glove box | 10 | SV 8.5-8 | 1 |
| Roof lighting Luggage compartment lighting |
10 | SV 8.5-8 | 2 |
| Lighting for switch/ashtray Seat-belt warning lamp Ignition switch lighting |
1.2 | W2x4.6d | 4 |
| Warning and indicator lamps (not charging indicator lamp) | 1.4 | Black | 3 |
TECHNICAL DATA - INTERIOR LIGHTING

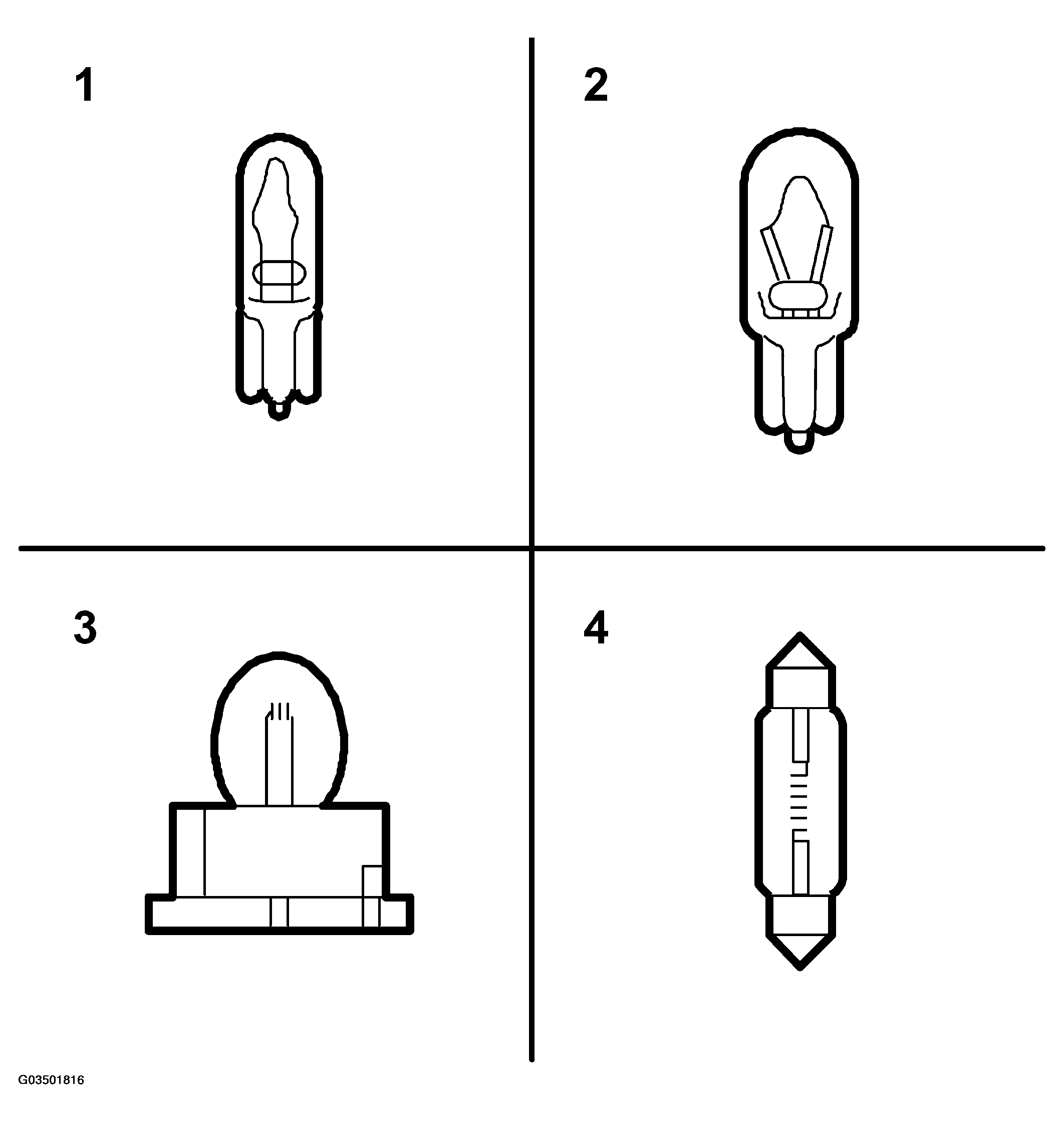

| Application | Rating (W) | Fitting | Position |
|---|---|---|---|
| Charging indicator lamp | 2.0 | Grey | 3 |
| Odometer lighting | 3.0 | ||
| Lighting for heating and ventilation controls ACC | 2.0 | W2x4.6d W2.1 x 9.5d |
3 |
