To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the control module to the bracket with two screws and plug in the connectors to the control module.

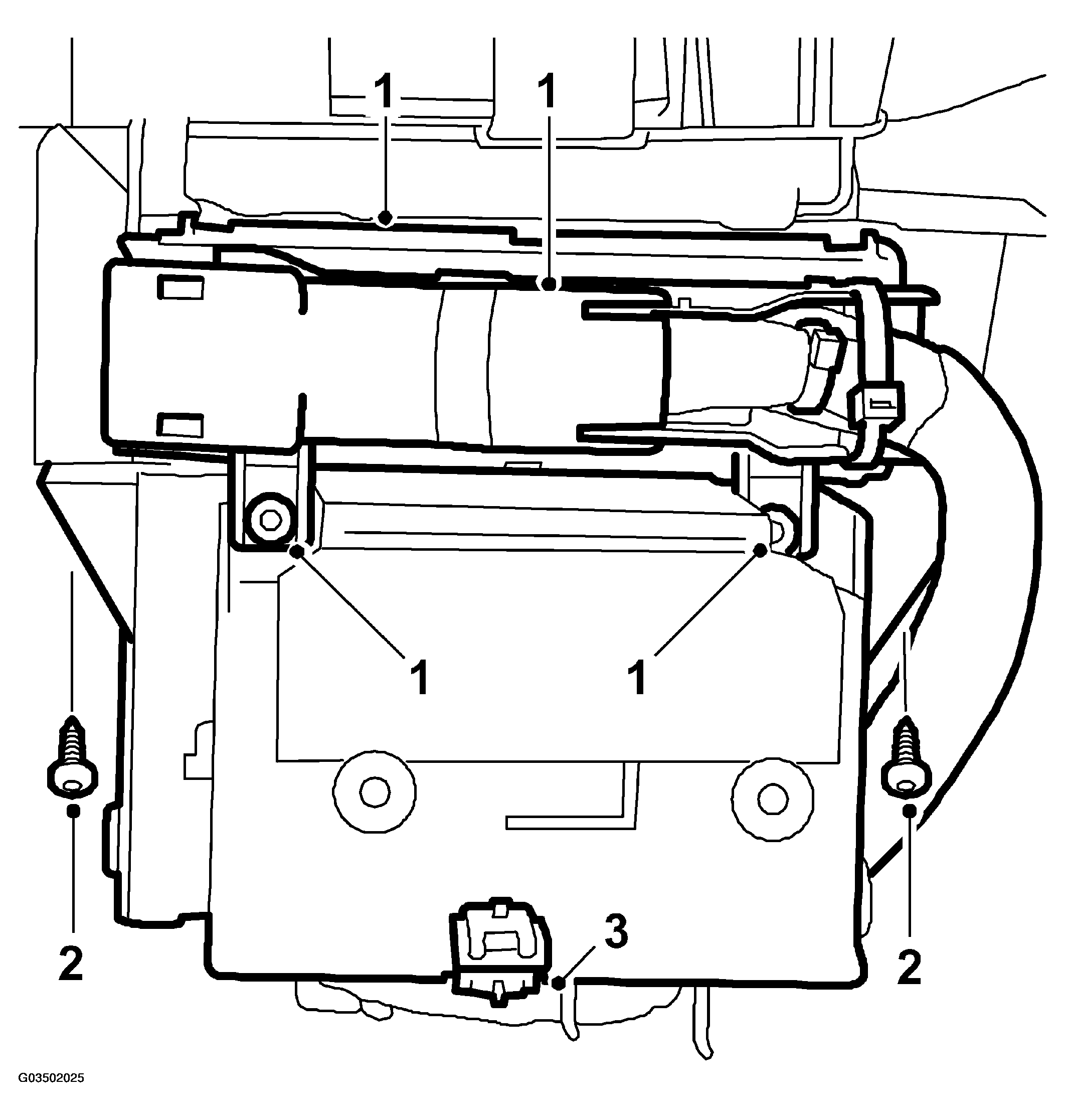

    Fig 1: Illustration For Steps 1-3
    G03502025Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the bracket.
  3. Reposition the relay retainer and tighten the screws.
  4. Fit the knee shield.

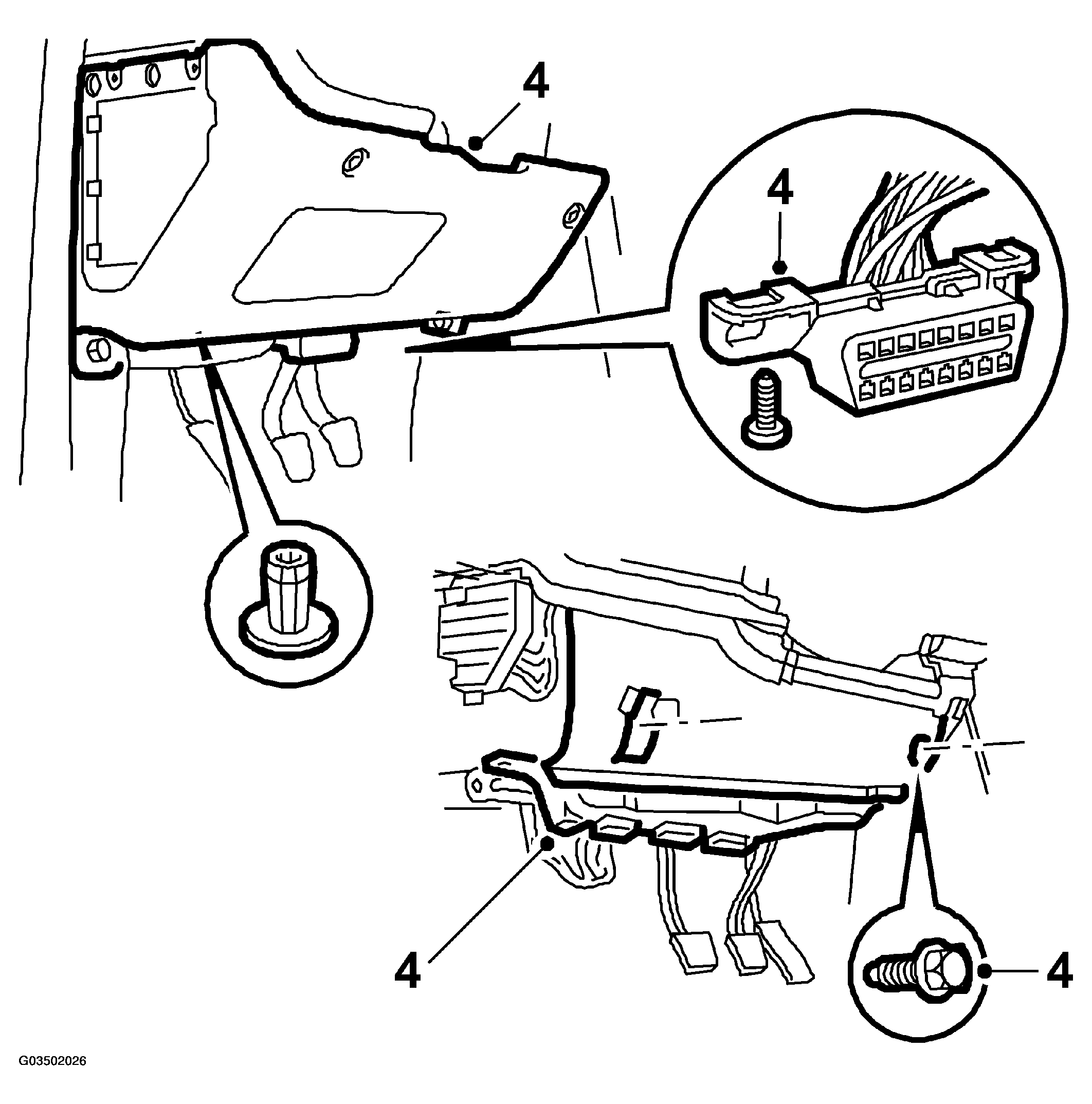

    Fig 2: Illustration For Step 4
    G03502026Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Spare parts programming must  be carried out after changing the DICE control module. Follow the instructions given in the "Programming" menu in the diagnostic tool.
