Control module power supply: Notes
WARNING:
This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

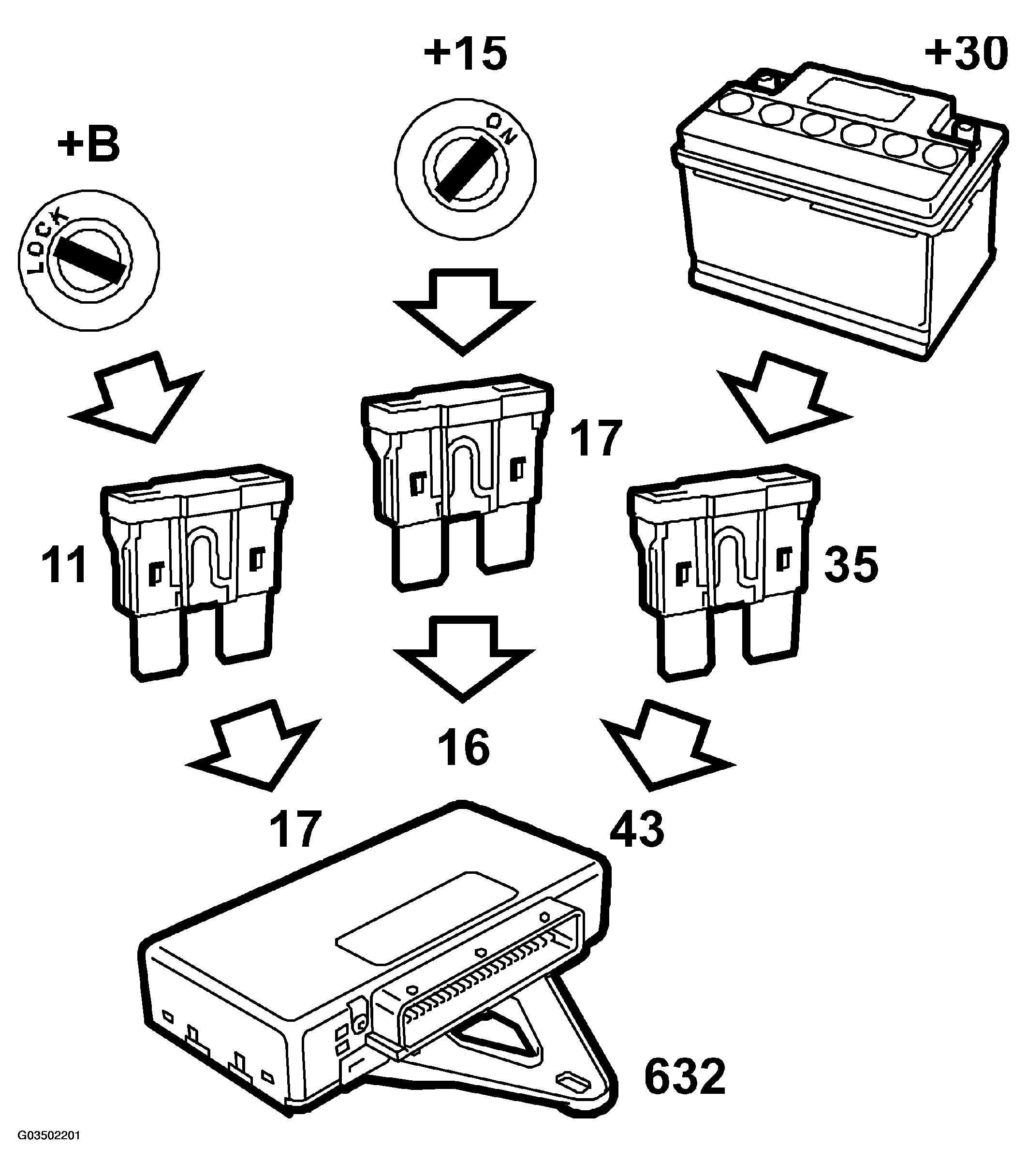

Fig 1: Identifying Control Module Power Supply Components
Courtesy of SAAB-SCANIA OF AMERICA, INC.

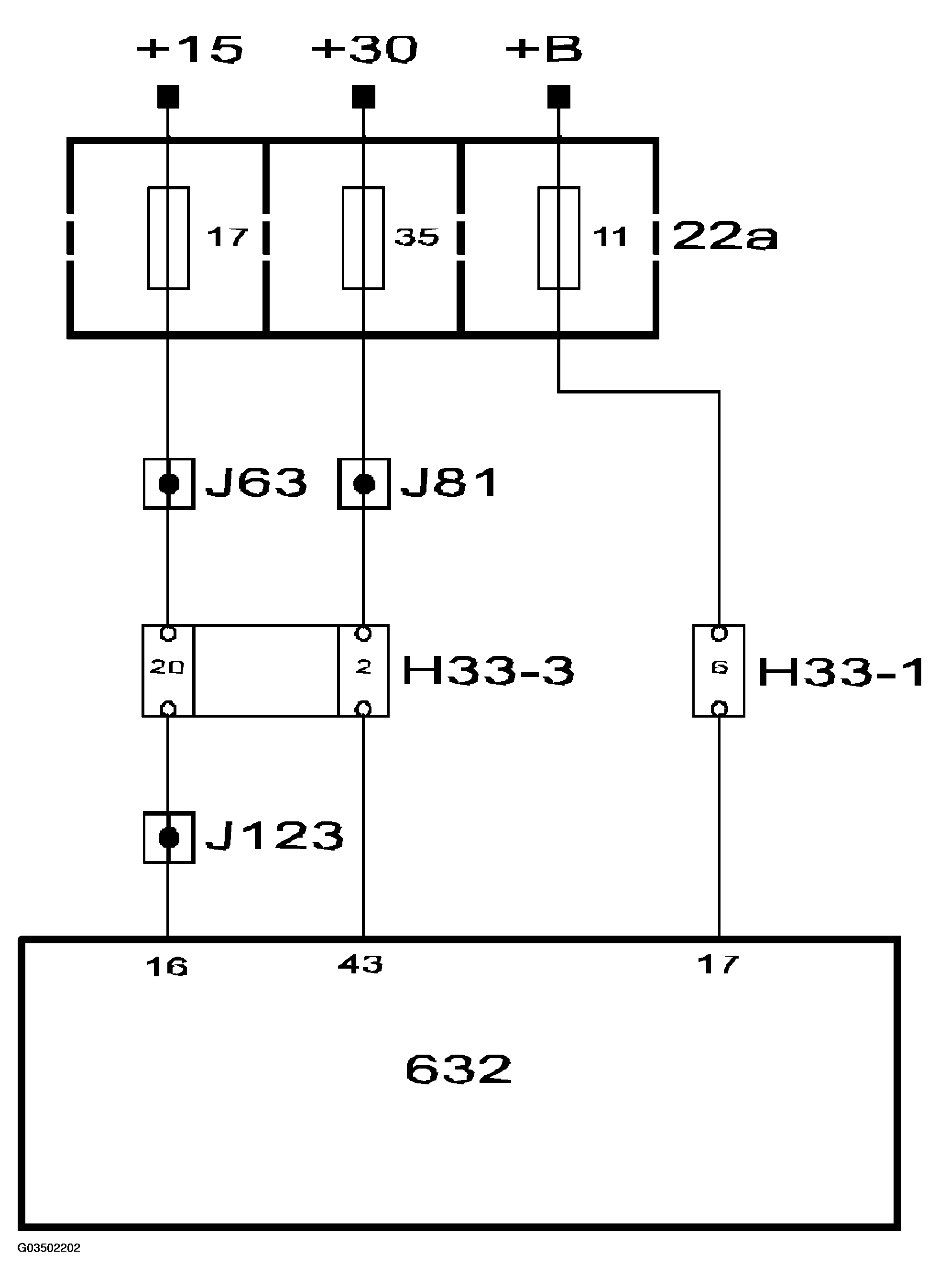

Fig 2: Circuit Diagram - Control Module Power Supply
Courtesy of SAAB-SCANIA OF AMERICA, INC.
