To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach and move aside the main fuse box.

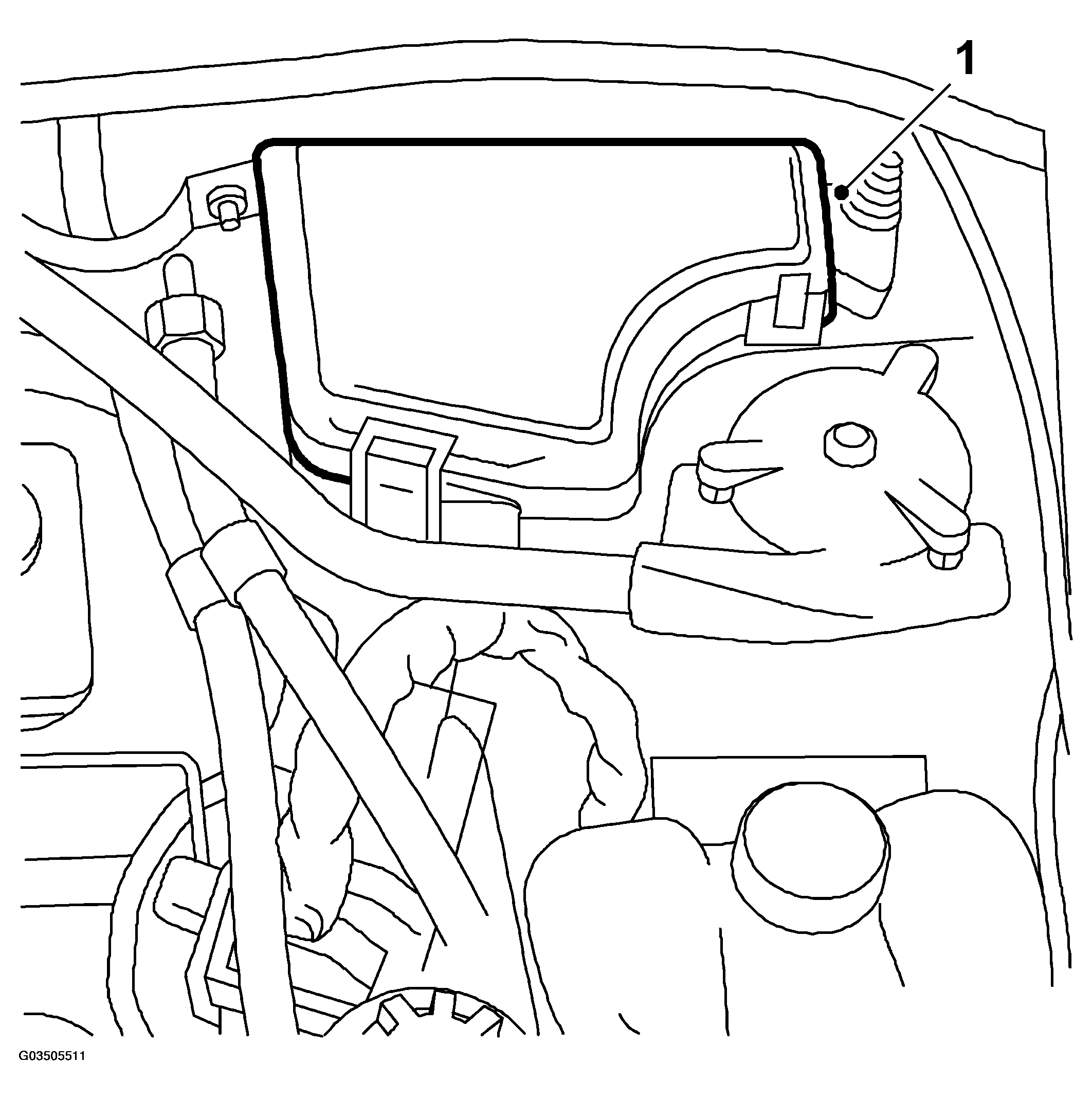

    Fig 1: Illustration For Step 1
    G03505511Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector and move it aside.

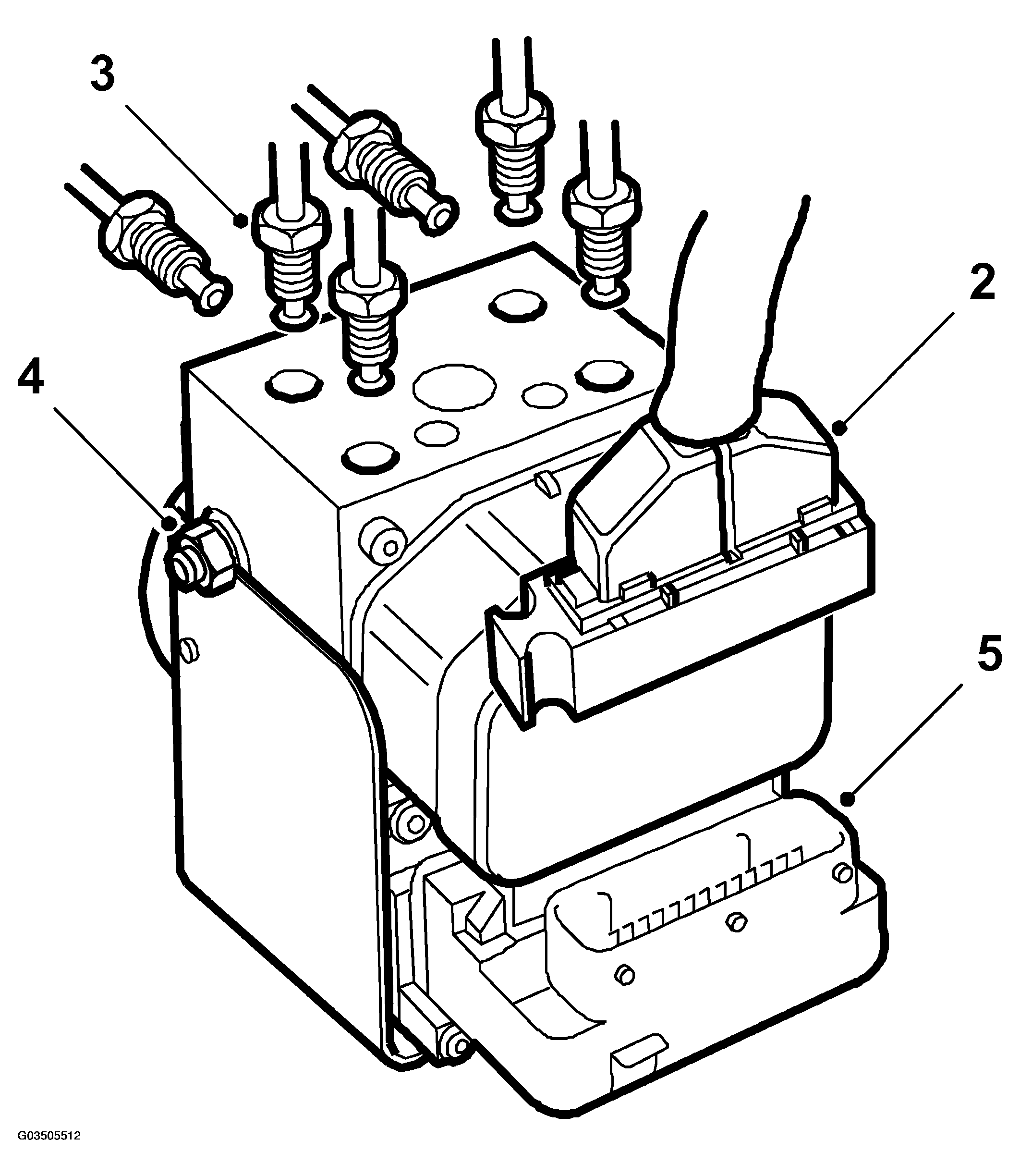

    Fig 2: Illustration For Steps 2-5
    G03505512Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unscrew the brake line unions and plug the holes.
  4. Undo the two nuts securing the unit to the bracket.
  5. Lift up the unit.
