Control module ground: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

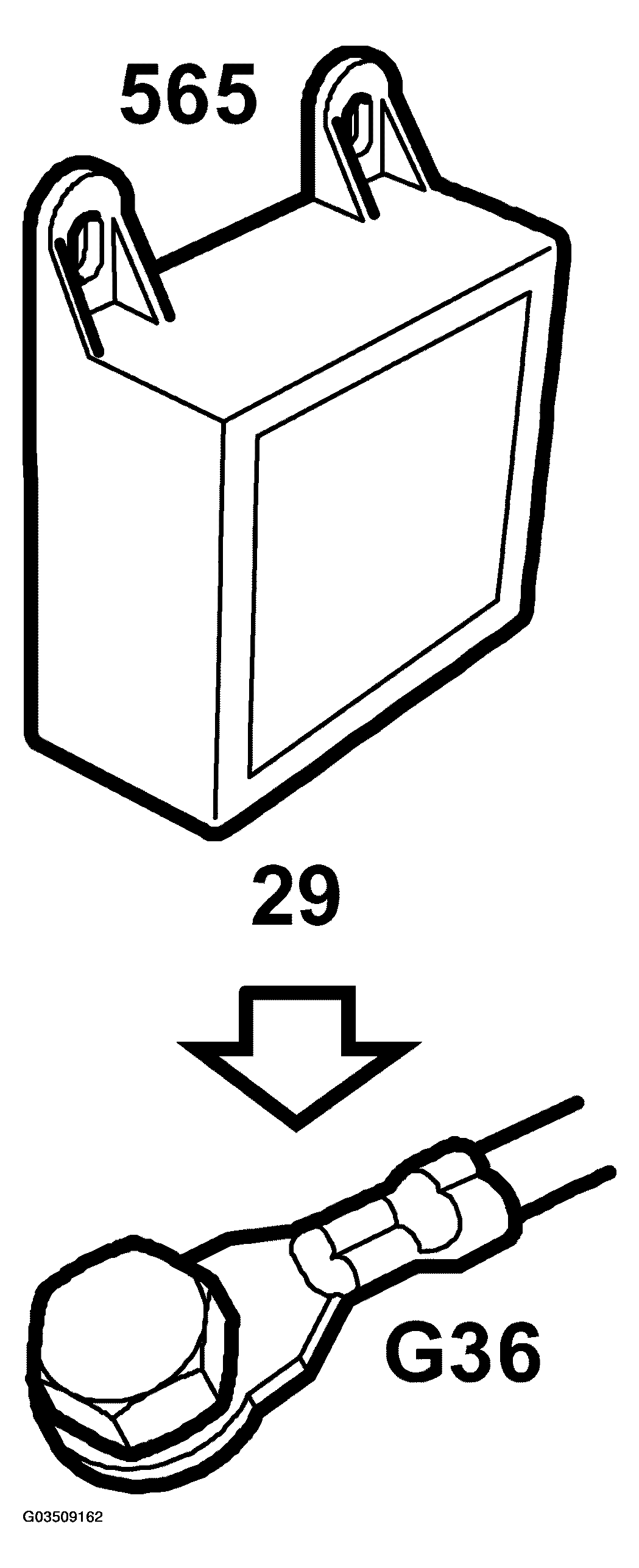

Fig 1: Identifying Control Module Grounding Point

Courtesy of SAAB-SCANIA OF AMERICA, INC.

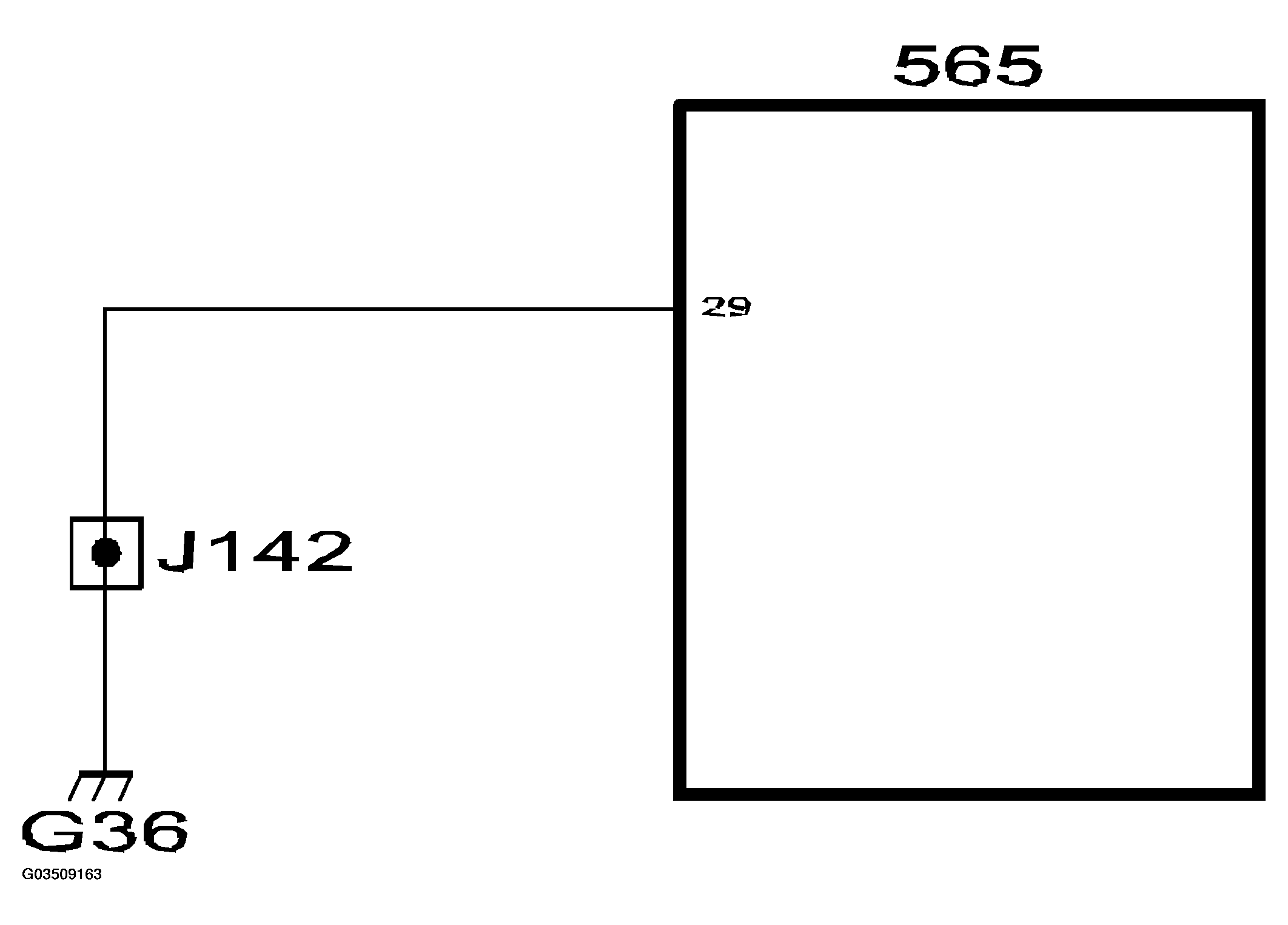

Fig 2: Control Module Grounding Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The control module is grounded through pin 29 in grounding point G36. This grounding point is common to, among other, microswitches, switches and hydraulic valves through crimp J142.
