Control module outputs

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

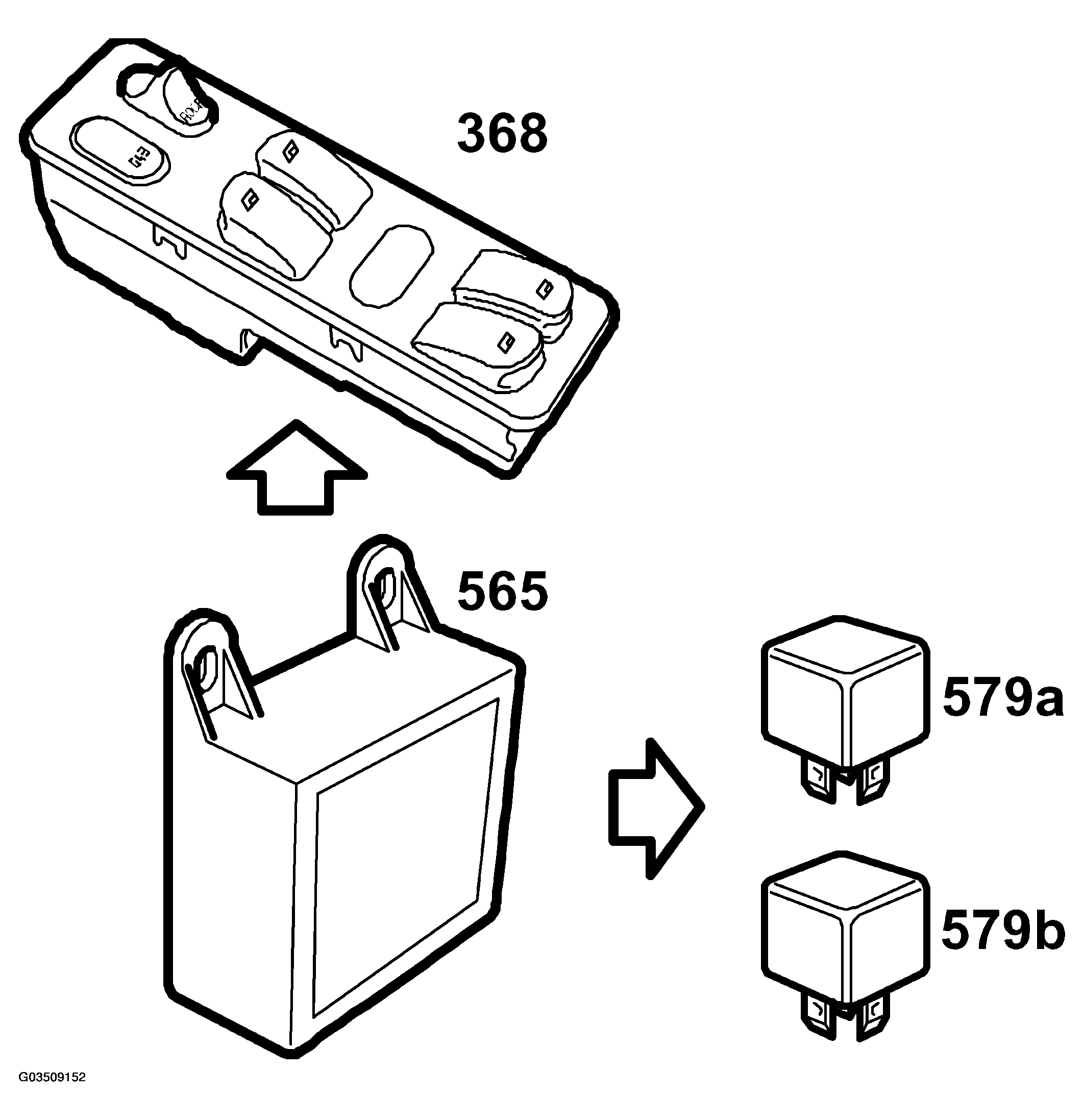

Fig 1: Control Module Outputs Communication Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Pump relay, push (579a). See FUSES & CIRCUIT BREAKERS
Pump relay, pull (579b). See FUSES & CIRCUIT BREAKERS
Power supply, switch panel (386). See FUSES & CIRCUIT BREAKERS
