Level Sensor: Removal

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the washer fluid reservoir.
  2. Raise the car and remove the wing liner at the front (3 screws).

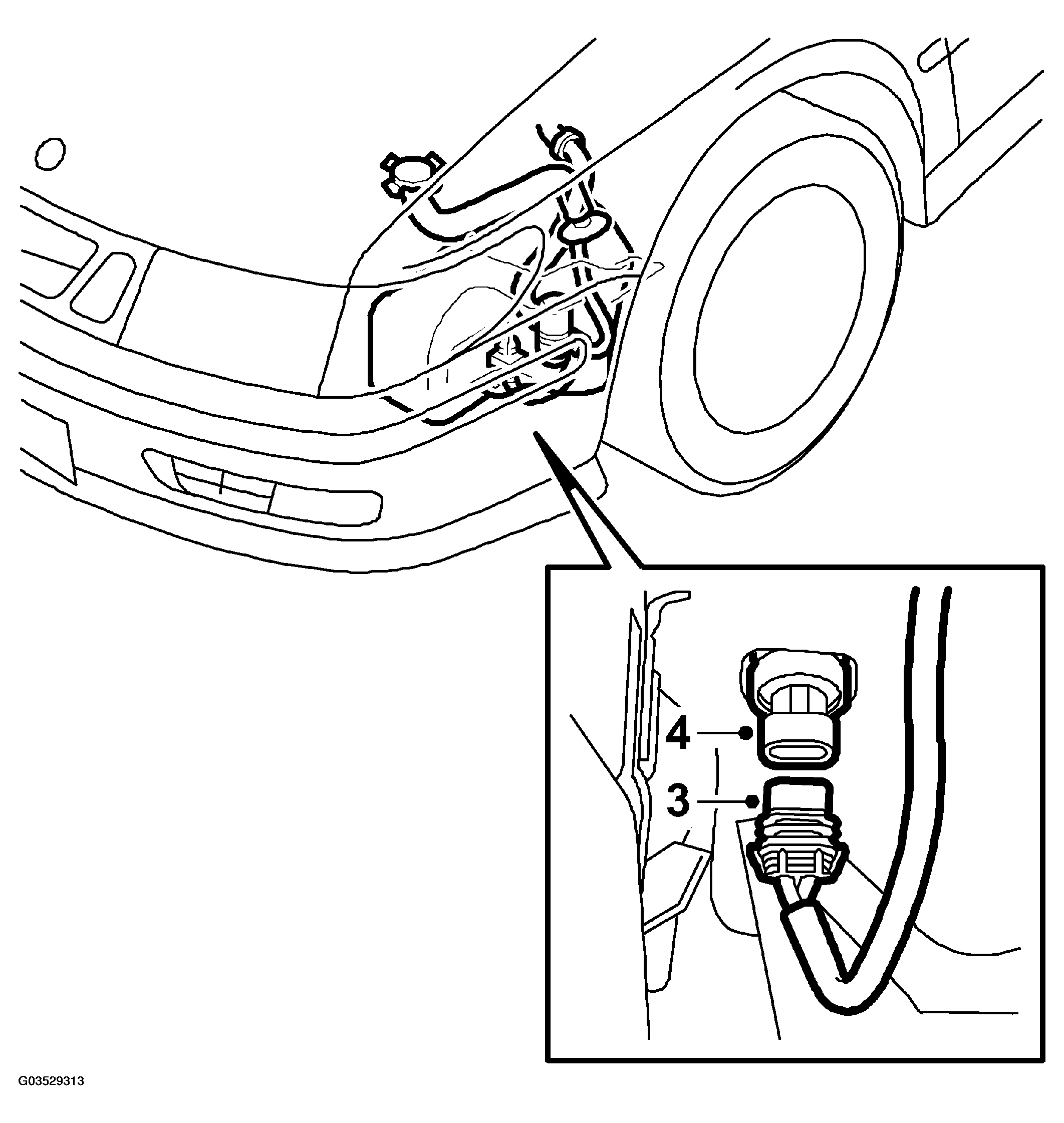

  3. Fig 1: Illustration For Steps 3-4
    G03529313Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the connector.
  5. Pull away the level sensor to remove it from the washer fluid reservoir.
