To Fit: Programming

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: All keys to the car must be programmed at the same time.
IMPORTANT: The transponders and remote controls that are not available during programming will be rendered unusable.
  1. Connect the diagnostic tool.
  2. Remove the antenna unit for immobilization by turning it clockwise. Do not unplug the contact. Place the antenna to the side of the ignition switch.

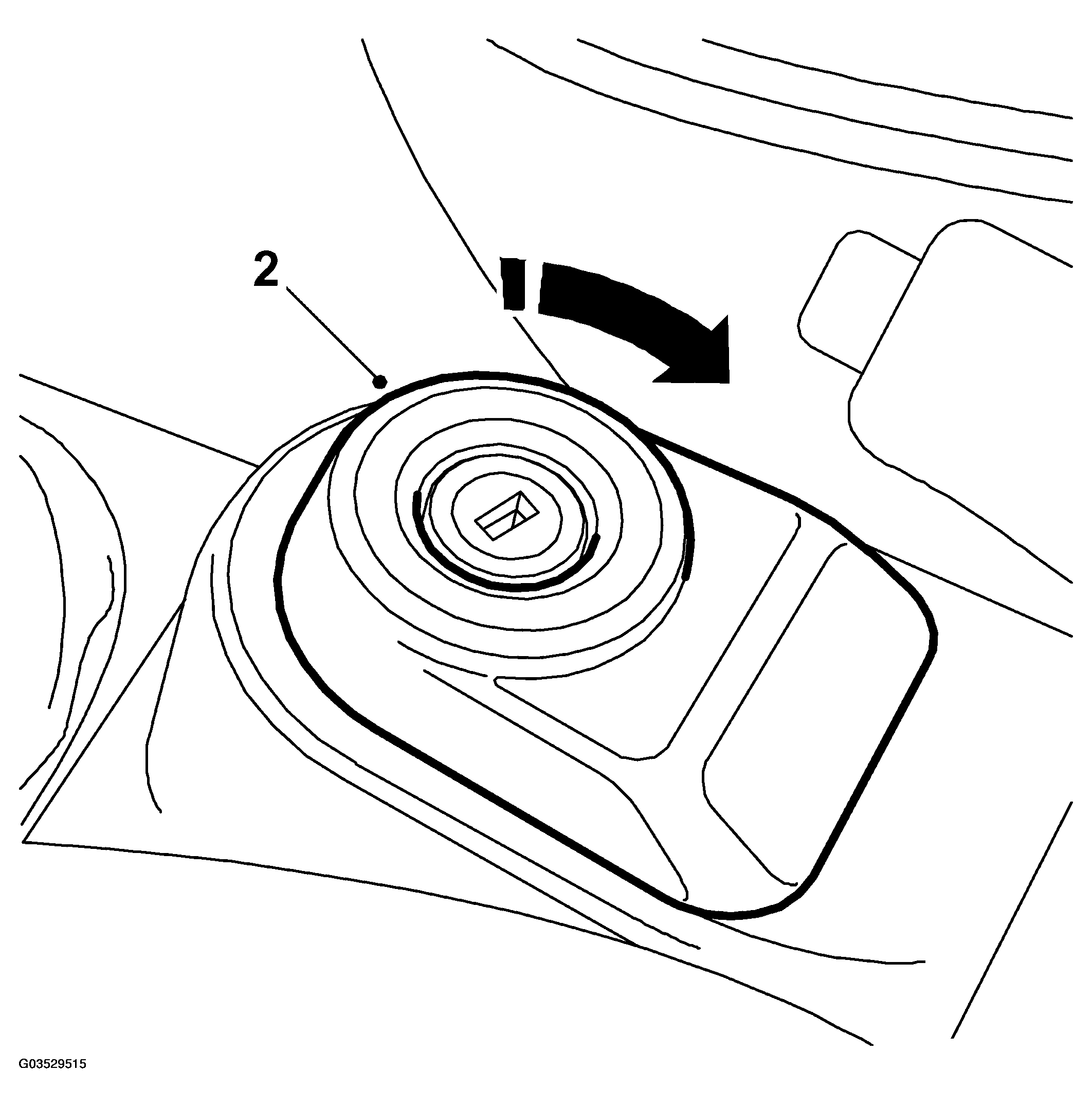

    Fig 1: Illustration For Step 2
    G03529515Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: The antenna unit should not be removed in low temperatures as cracks may form.

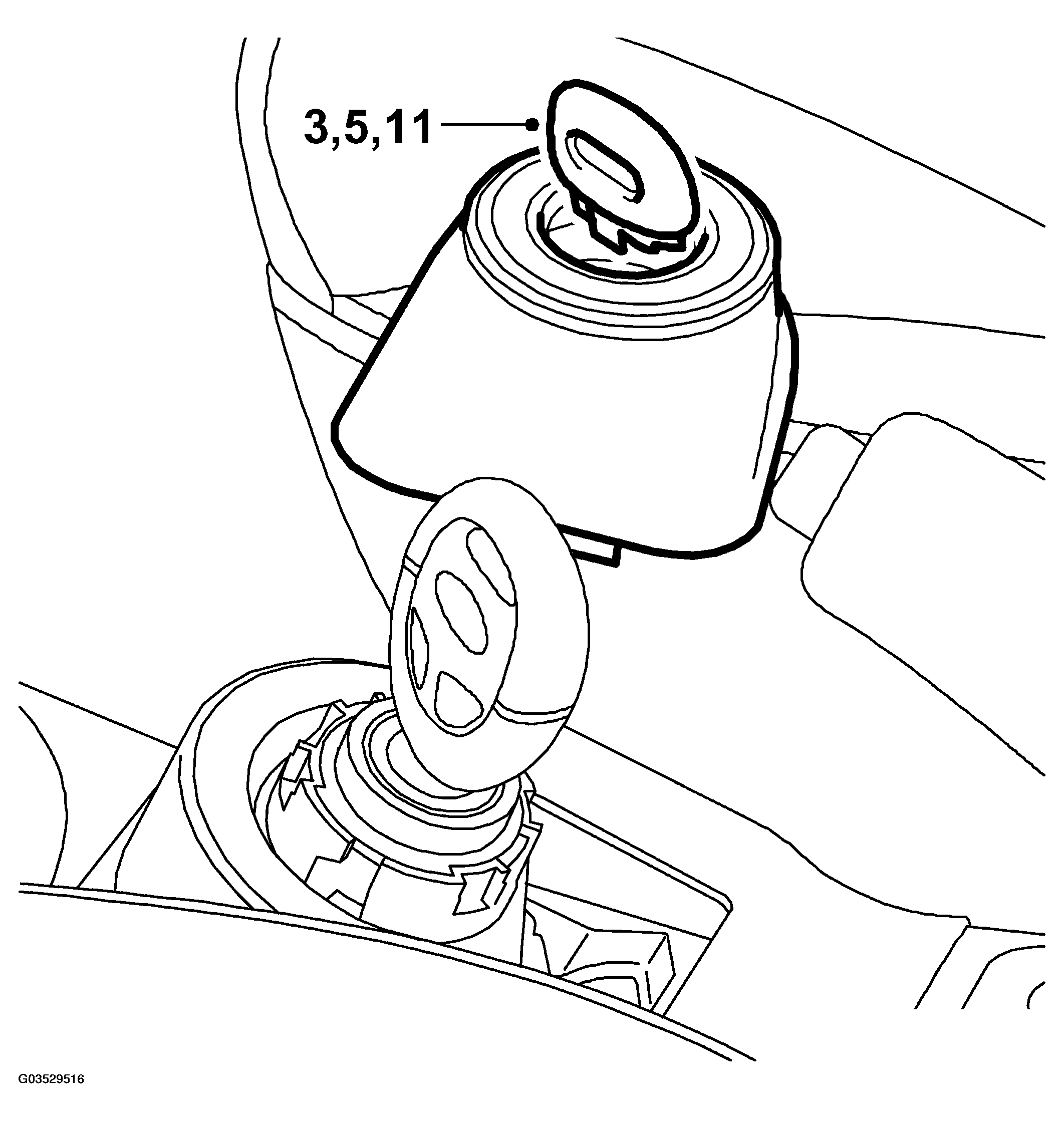

    Fig 2: Illustration For Step 3, 5, 11
    G03529516Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Hold the included transponder above the hole in the antenna unit. Turn the ignition to the ON position. Hold the transponder in the same position for a few seconds.

    When the alarm indicator diode stops flashing, the transponder code has been read by TWICE. If the alarm indicator diode does not stop double flashing, repeat step  3 . Adjust the position of the included transponder.

  4. Select body system and navigate to TWICE with the diagnostic tool. Do not press ENTER.
  5. Hold the included transponder above the hole in the antenna unit.
  6. Press ENTER on the diagnostic tool.
  7. Select Programming.
  8. Select Spare Part Programming.
  9. Carry out Spare Part Programming; select the alternatives applicable to the car.
  10. Once Spare Part Programming has been carried out, select "Programming transponders and remote controls". Press ENTER. When asked "Do you wish to exit", press NO.
  11. Hold the included transponder above the hole in the antenna unit. The seat belt warning lamp should flash to indicate that the transponder code was understood by TWICE. Press OK.
  12. If the seat belt warning lamp does not flash, turn the ignition to the OFF position and try again from step  3 .
  13. Follow the instructions in the diagnostic tool, with the following exception: The first time, the following should be done at step three in Tech 2: Refit the antenna unit. Reinsert the same key.
    NOTE: The antenna unit should not be removed in low temperatures as cracks may form.
  14. Follow the instructions in the diagnostic tool.
