Control Module

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

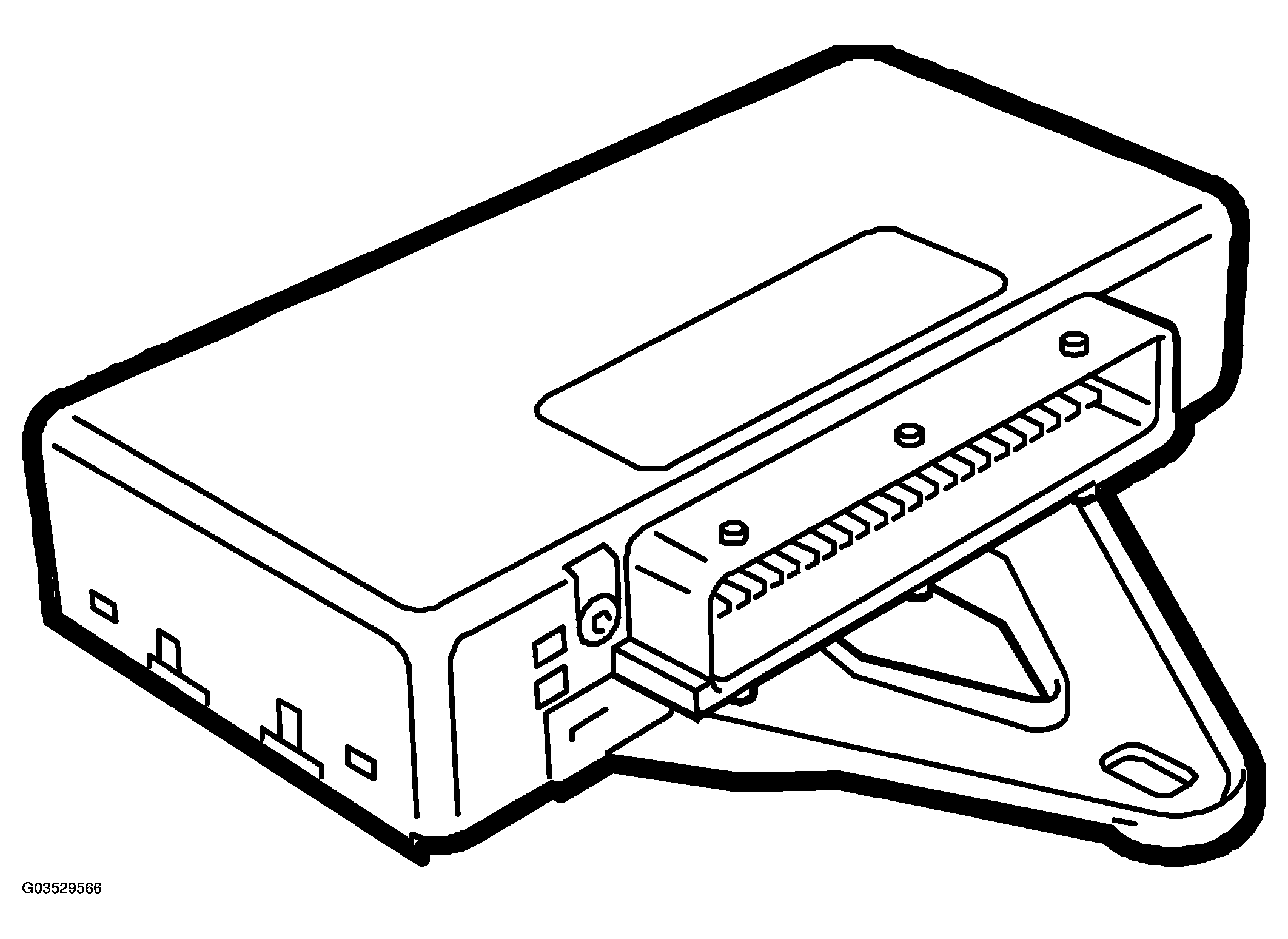

Fig 1: Identifying Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CONTROL MODULE REFERENCE DATA

Location	Under Left-Hand Front Seat, Screwed To The Floor
Number of pins	70
Power supply +30	Pin No. 43
Power supply +15, logic/key position	Pin No. 16
Power supply +B, logic/key position	Pin No. 17
Power ground	Pin No. 70
Signal ground	Pin No. 37
Instrument bus, I-BUS (+)	Pin No. 38
Instrument bus, I-BUS (-)	Pin No. 15
