Control Module Power Supply: Notes
WARNING:
This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

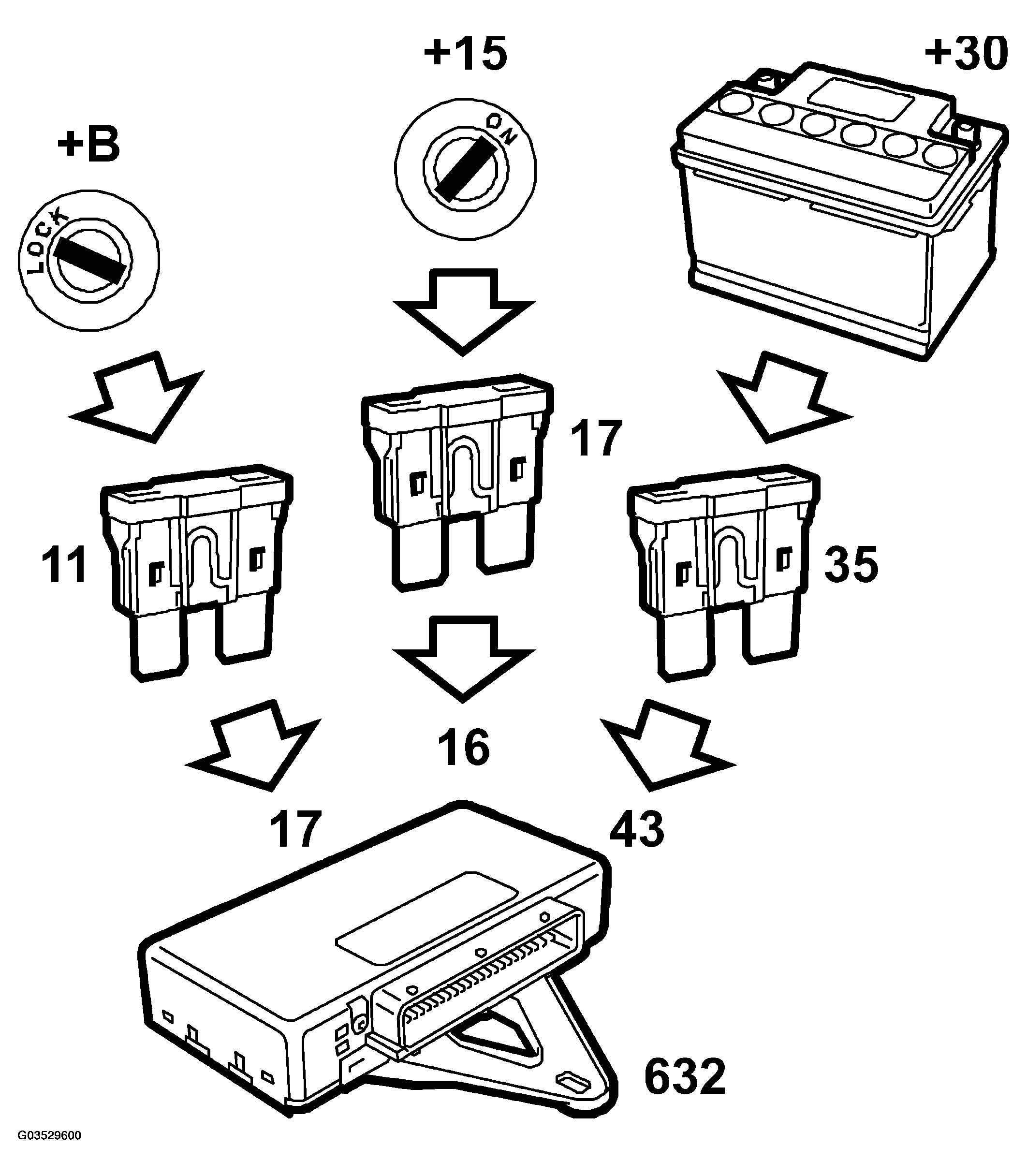

Fig 1: Identifying Control Module Power Supply
Courtesy of SAAB-SCANIA OF AMERICA, INC.

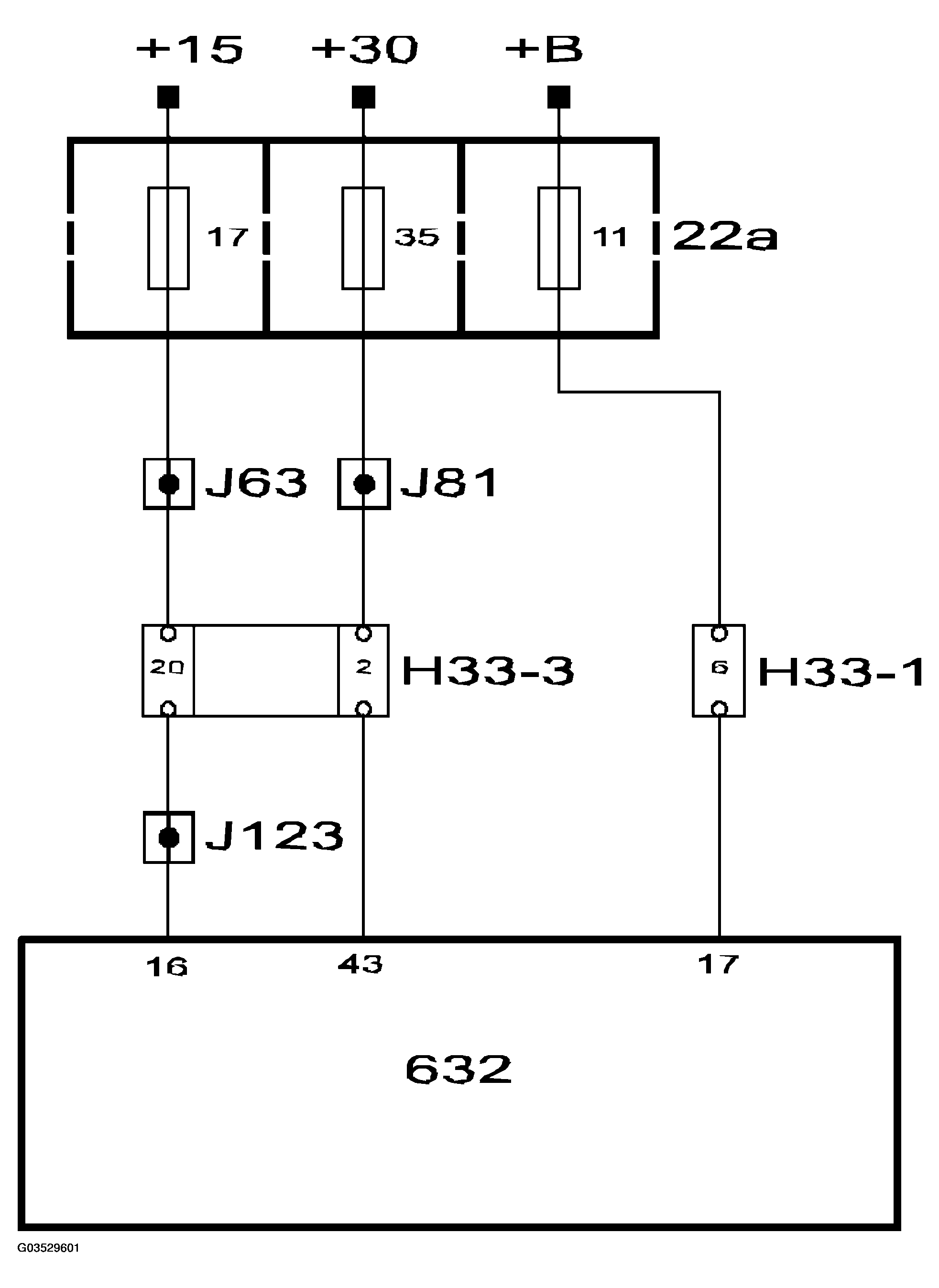

Fig 2: Identifying Power Supply (+30 Circuit) Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
