System Overview, Functions, Cars With Engine Management System Trionic T7: LHD

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

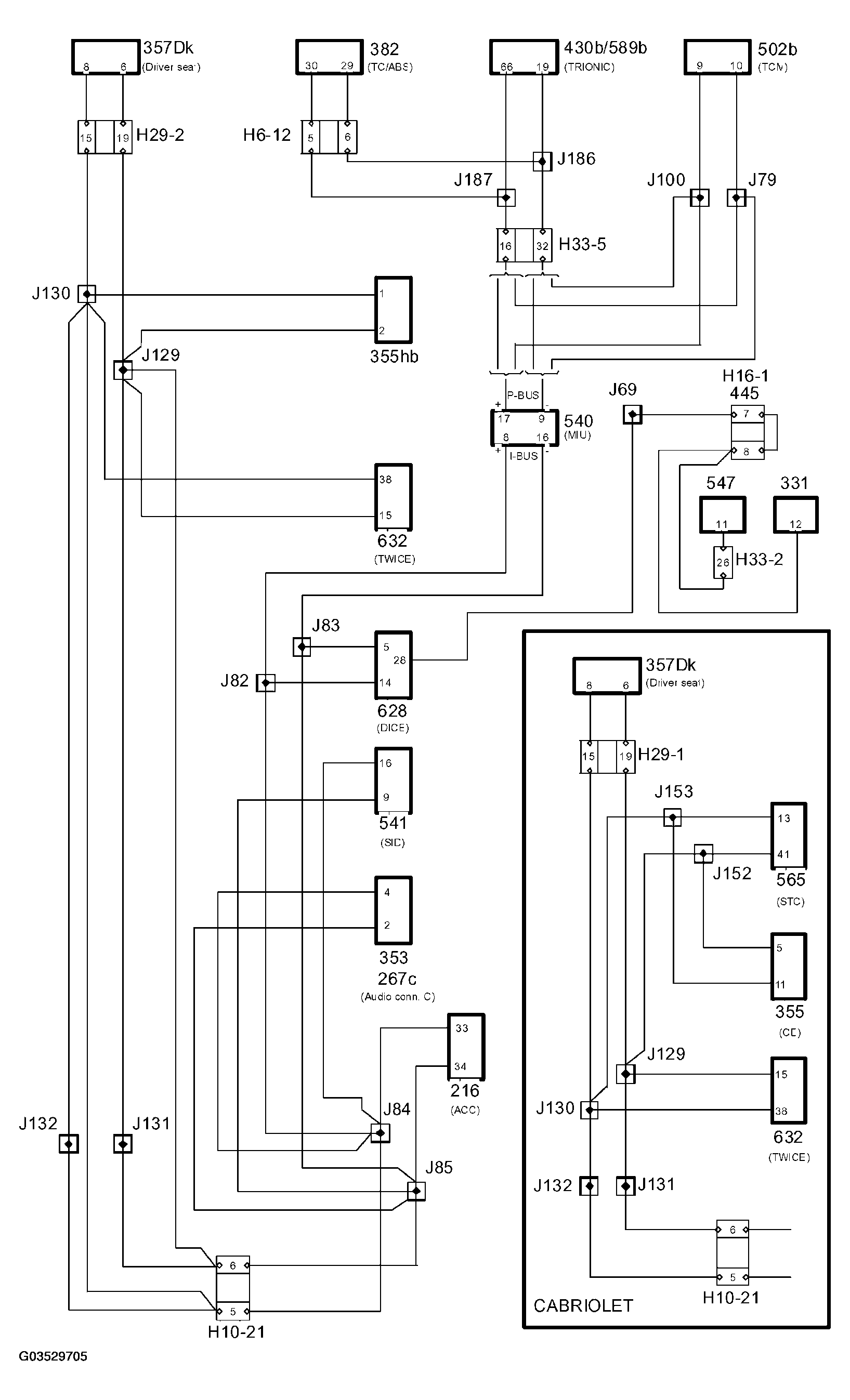

Fig 1: Circuit Diagram - Engine Management System Trionic T7 (LHD)
G03529705Courtesy of SAAB-SCANIA OF AMERICA, INC.

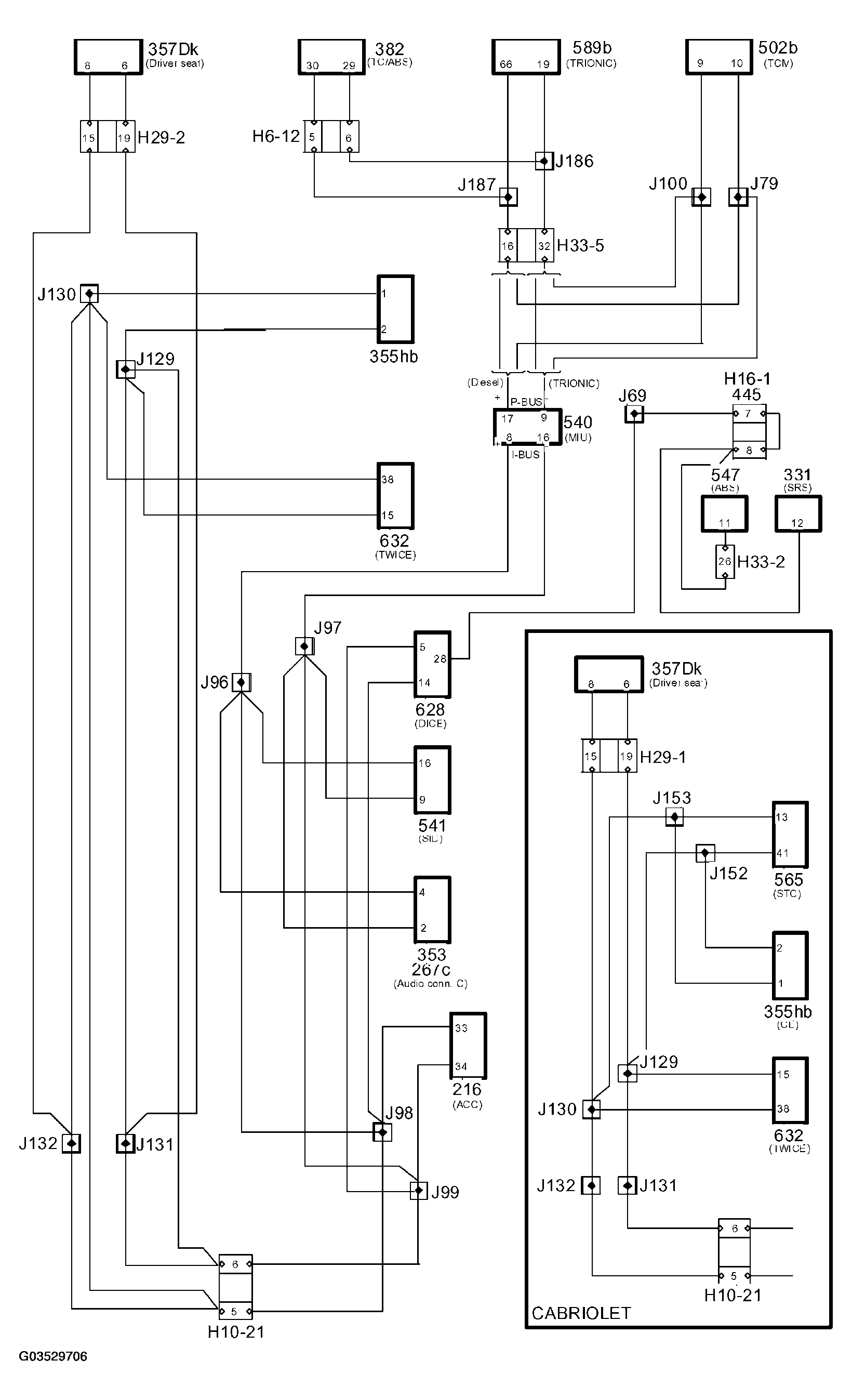

Fig 2: Circuit Diagram - Engine Management System Trionic T7 (RHD)
G03529706Courtesy of SAAB-SCANIA OF AMERICA, INC.
