Luggage Compartment Switch, Lighting
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

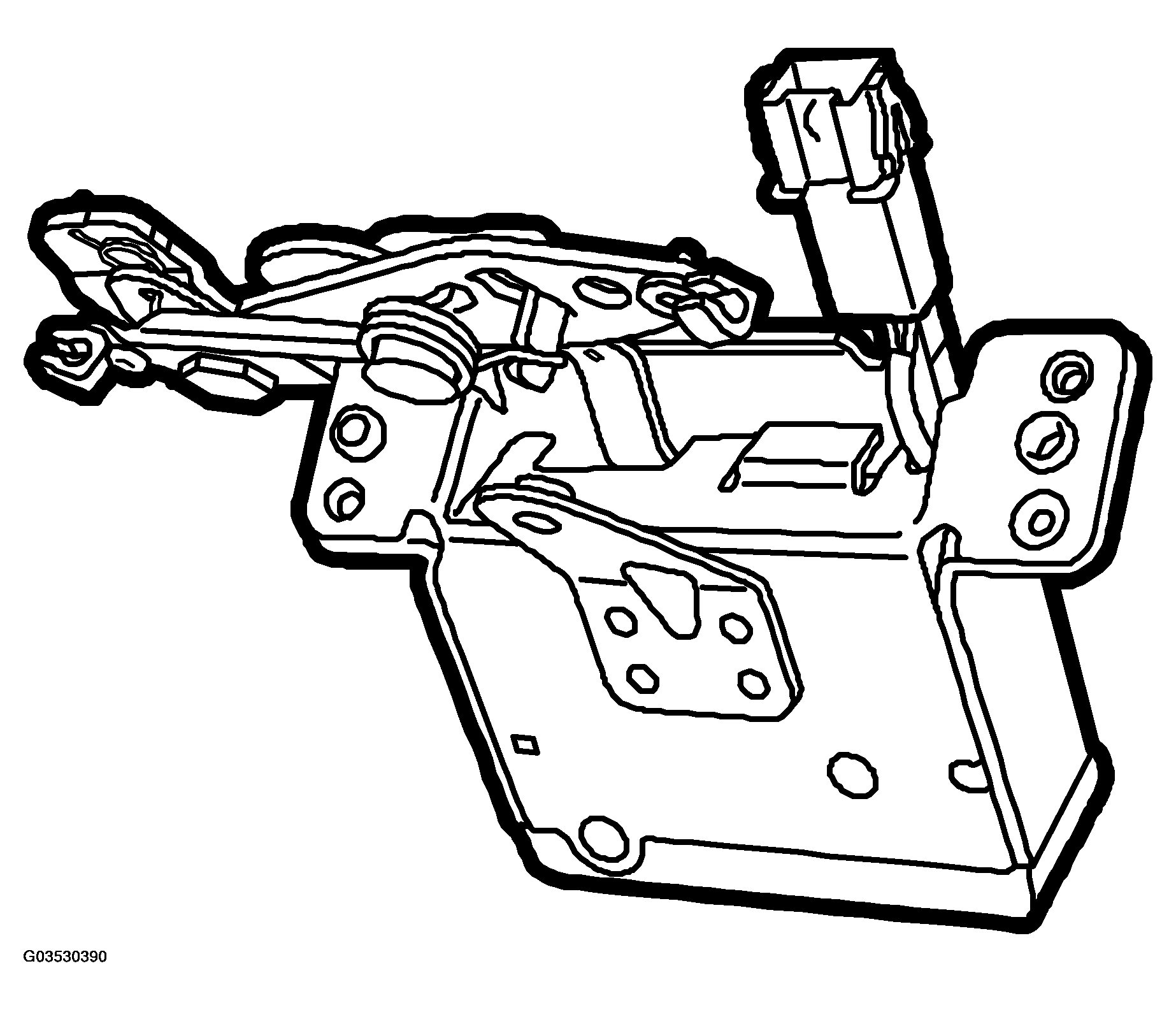

Courtesy of SAAB-SCANIA OF AMERICA, INC. LUGGAGE COMPARTMENT SWITCH (LIGHTING) TECHNICAL DATA
| Location |
In tailgate locking mechanism |
| Type |
Normally open when tailgate is closed |
| Power supply PWM approx. 3.5% |
Pin No. 1 |
| Ground |
Pin No. 2 |
