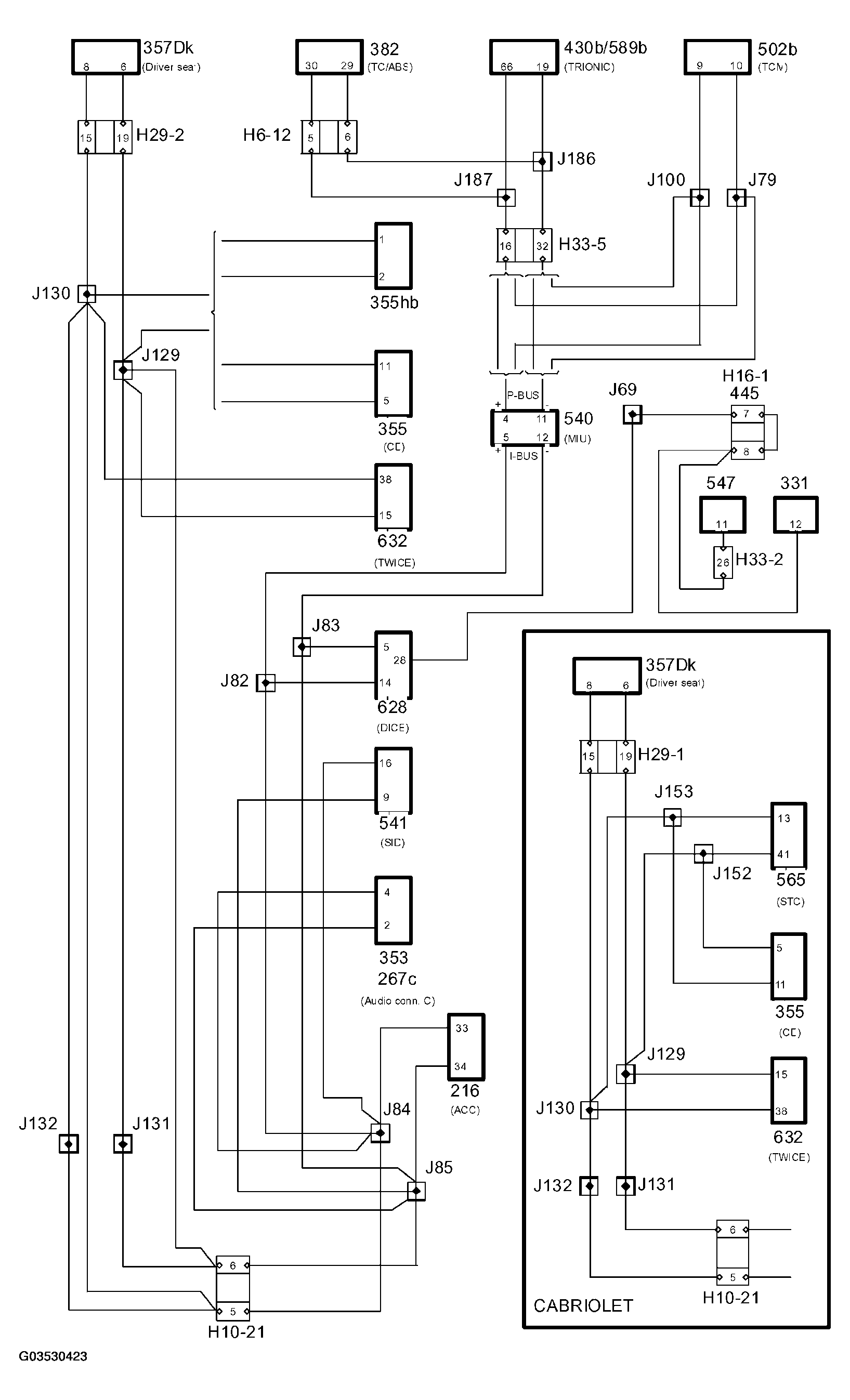

Bus Communication, Trionic T7
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Control module ACC (216)
- Radio connector C (267c)
- Control module airbag/SRS (331)
- Radio (353)
- CD changer (355)
- Control module PSM (357Dk)
- Trionic T7 control module (430b)
- Transmission control module, TCM (502b)
- MIU (540d)
- SID (541)
- Control module, ABS (547)
- Control module STC (565)
- Trionic T7 OBDII control module (589b)
- Control module, DICE (628)
- Control module, TWICE (632)
- TC/ABS (382)
