Disconnecting The Tilt Sensor: Notes

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

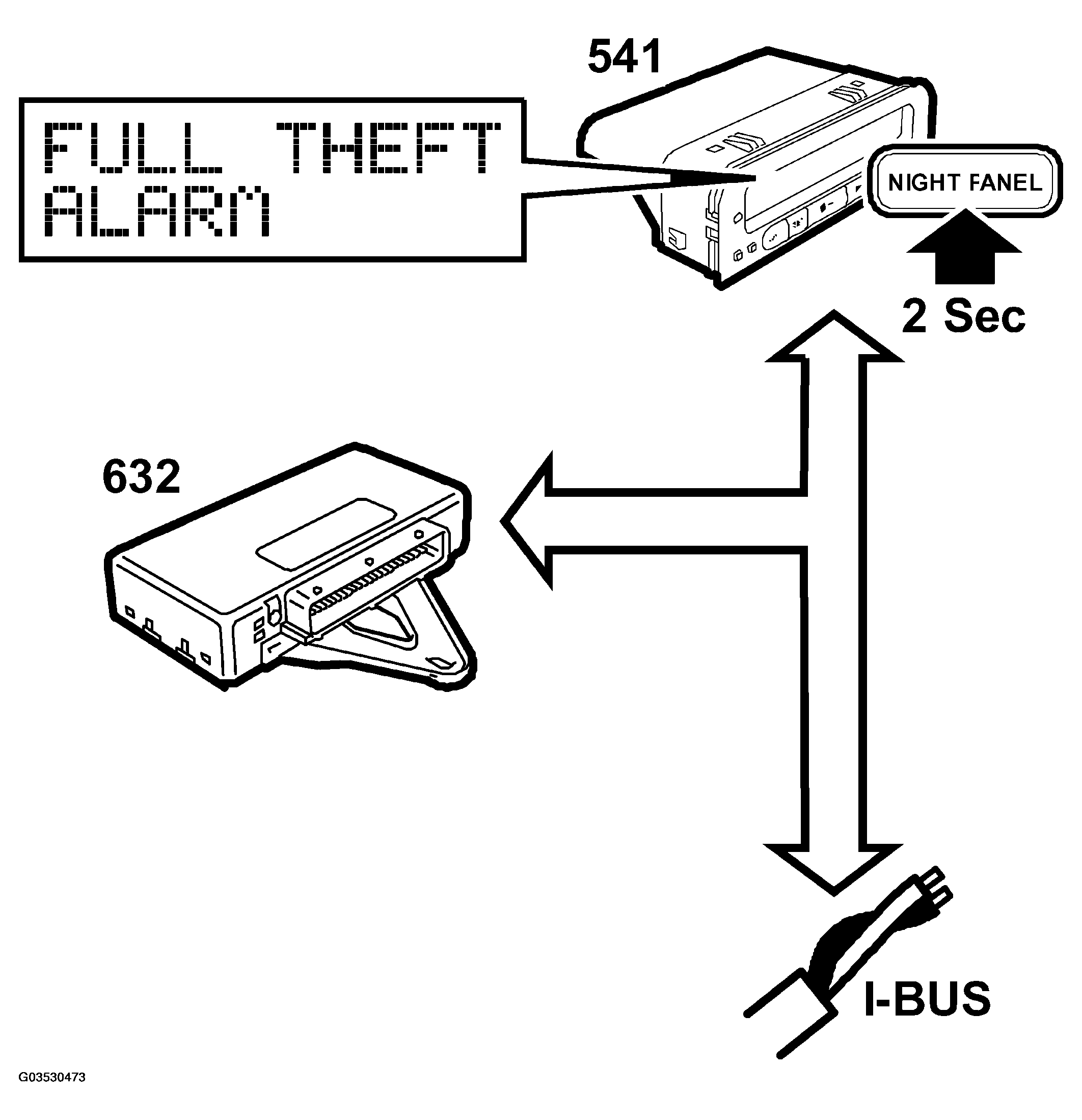

Fig 1: Communication Diagram - Disconnecting Tilt Sensor (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

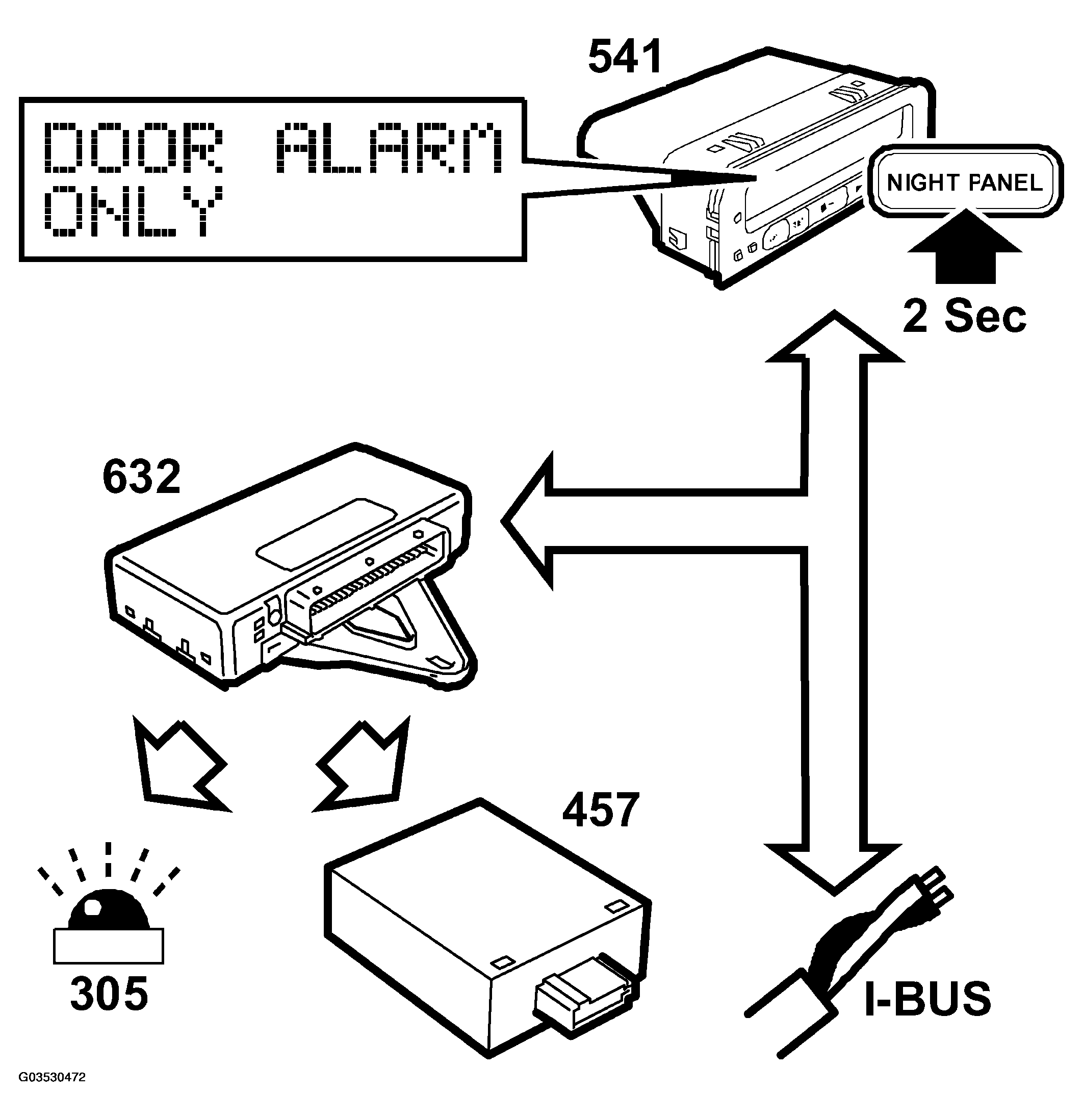

Fig 2: Communication Diagram - Disconnecting Tilt Sensor (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

To avoid false alarms if the car is parked on a floor that may move, for example on a car ferry, the tilt sensor can be disconnected.
