To Remove

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

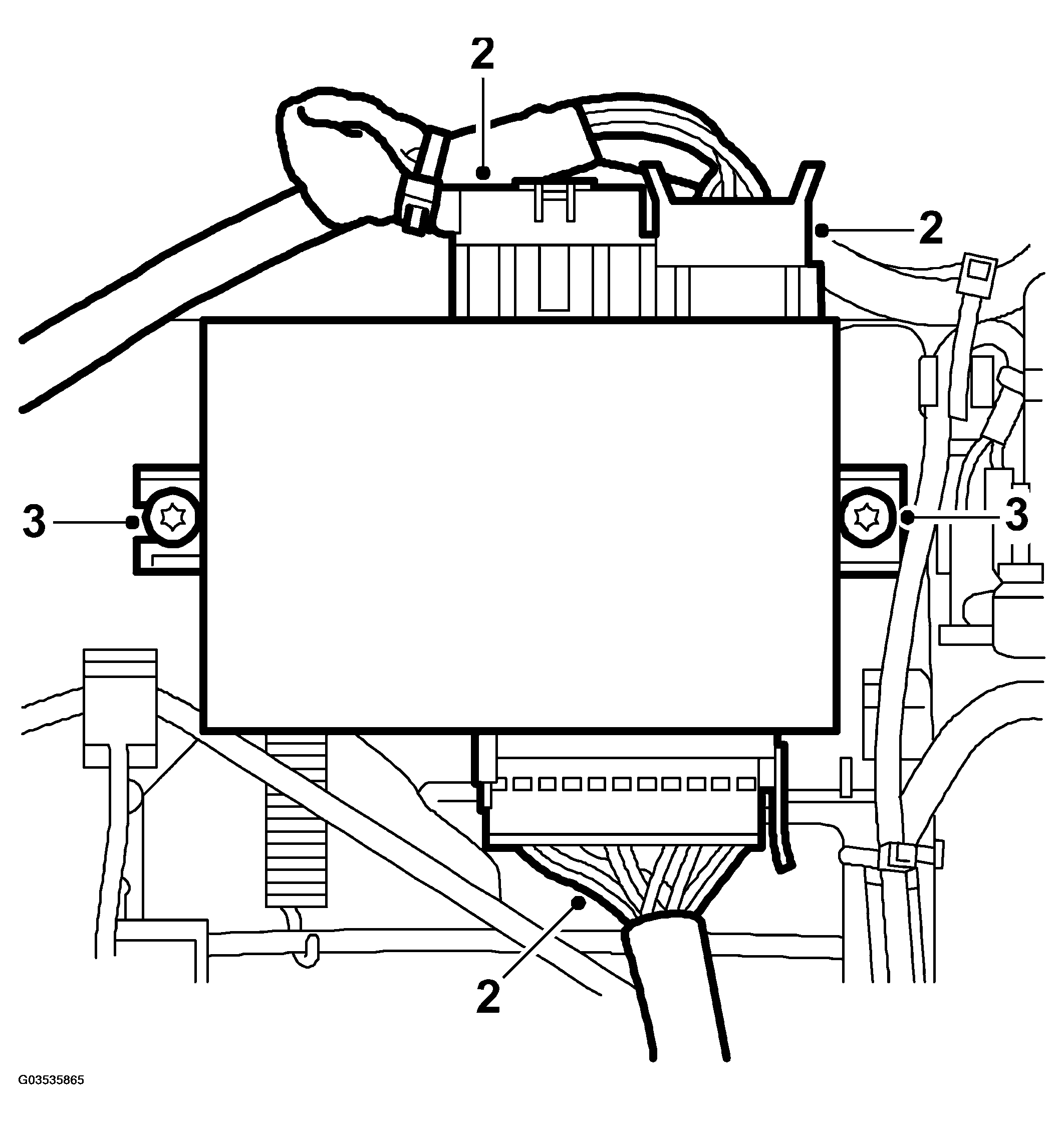

Fig 1: Illustration For Step 2-3
G03535865Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front seat and tip it rearward, see FRONT SEAT  .
  2. Unplug 3 connectors on the control module.
  3. Unscrew the control module from the console, 2 screws.
