Main Components, PSM

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

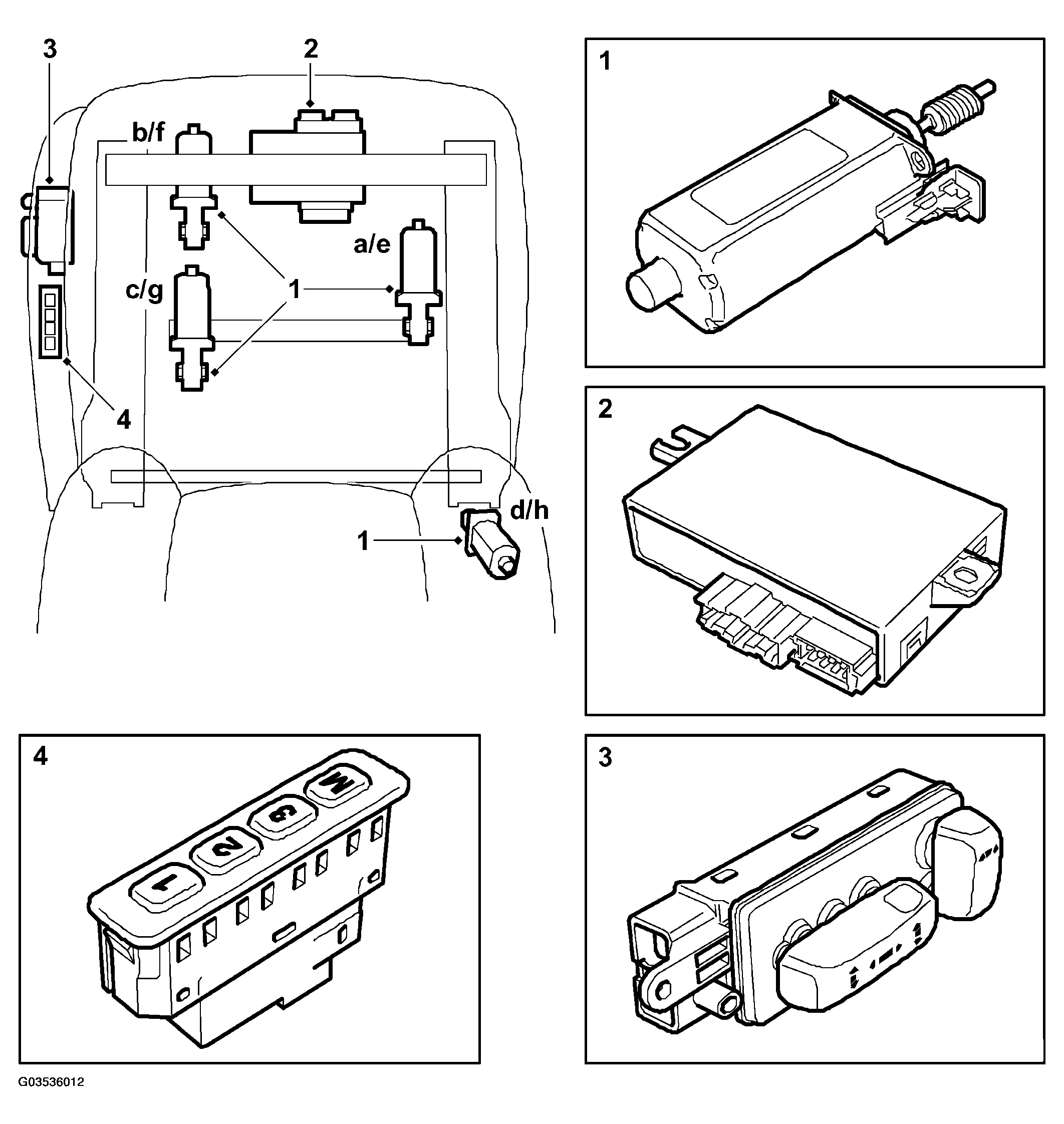

Fig 1: Identifying PSM Main Components
G03536012Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Electric motors with position sensors for adjusting driver's seat (357De-Dh)
  2. PSM CONTROL MODULE  (357Dk)
  3. SWITCH UNIT  for seat adjustment (357D)
  4. MEMORY BUTTONS  (357Dj)
