Memory Buttons: Notes

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

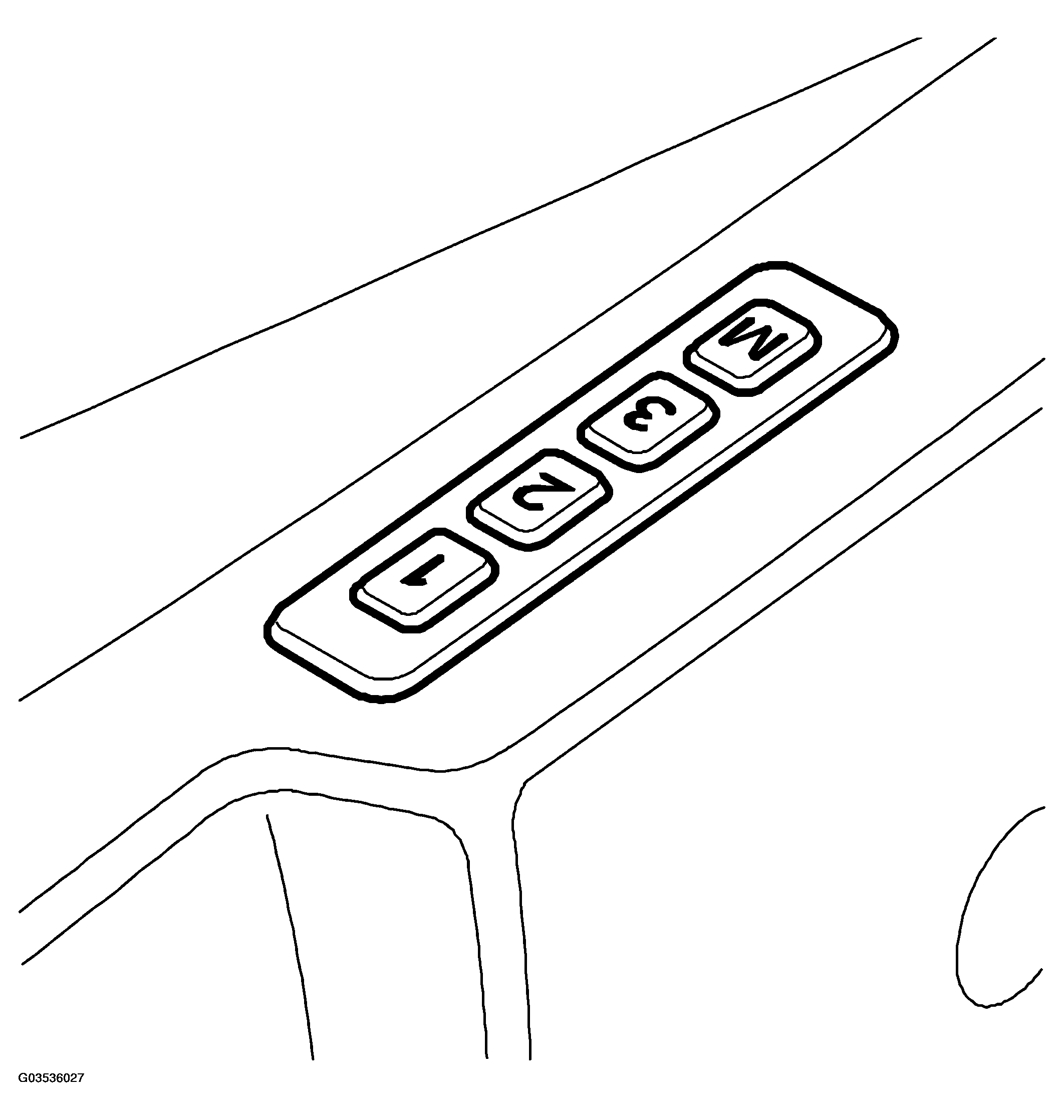

Fig 1: Identifying Memory Buttons

Courtesy of SAAB-SCANIA OF AMERICA, INC.

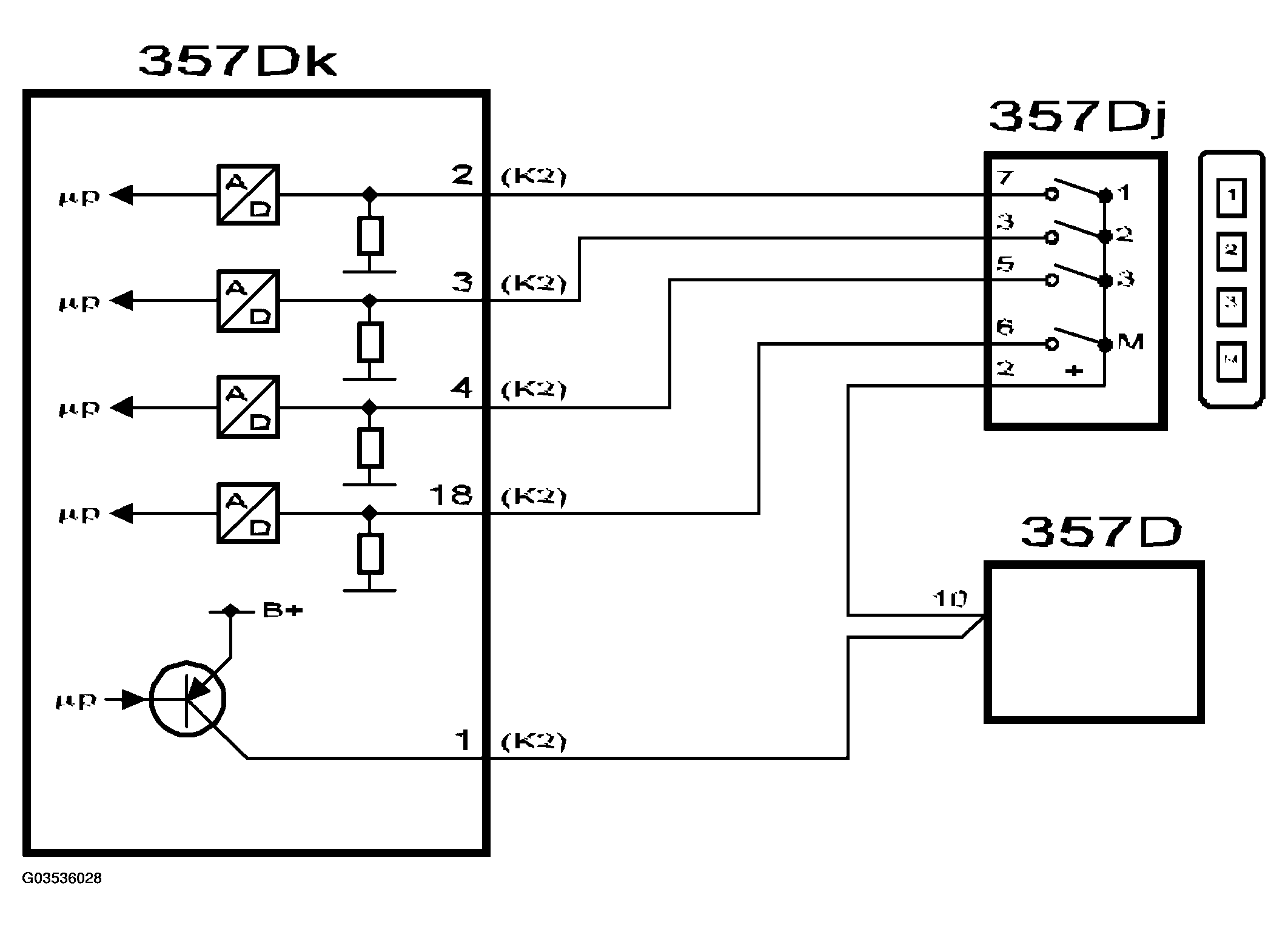

Fig 2: Memory Buttons - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The switch unit for memory retrieval and programming contains four buttons. Three memory buttons, "1", "2" and "3" and the memory store button "M".
