Power Supply: Notes

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

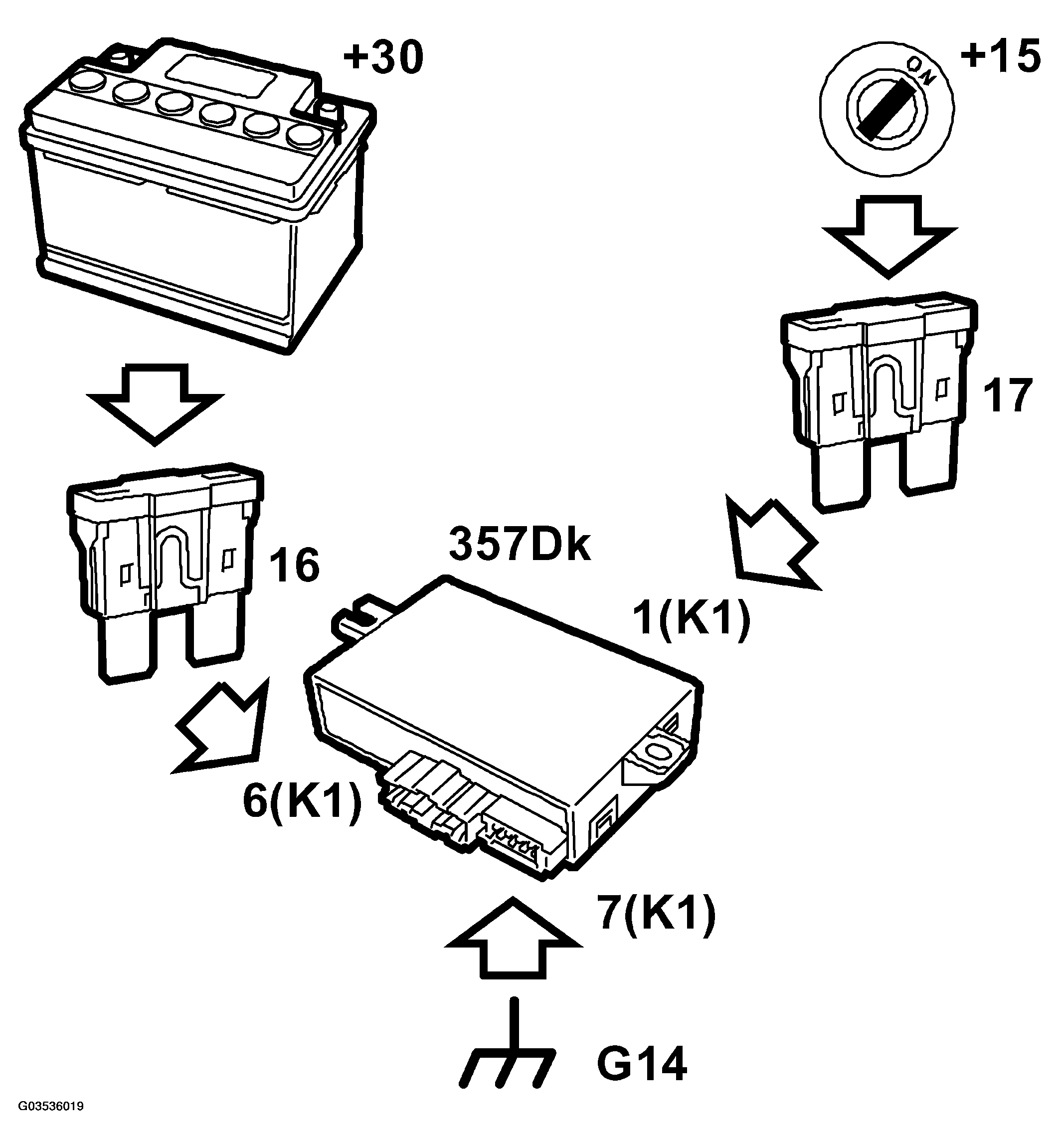

Fig 1: Power Supply - Communication Diagram
G03536019Courtesy of SAAB-SCANIA OF AMERICA, INC.

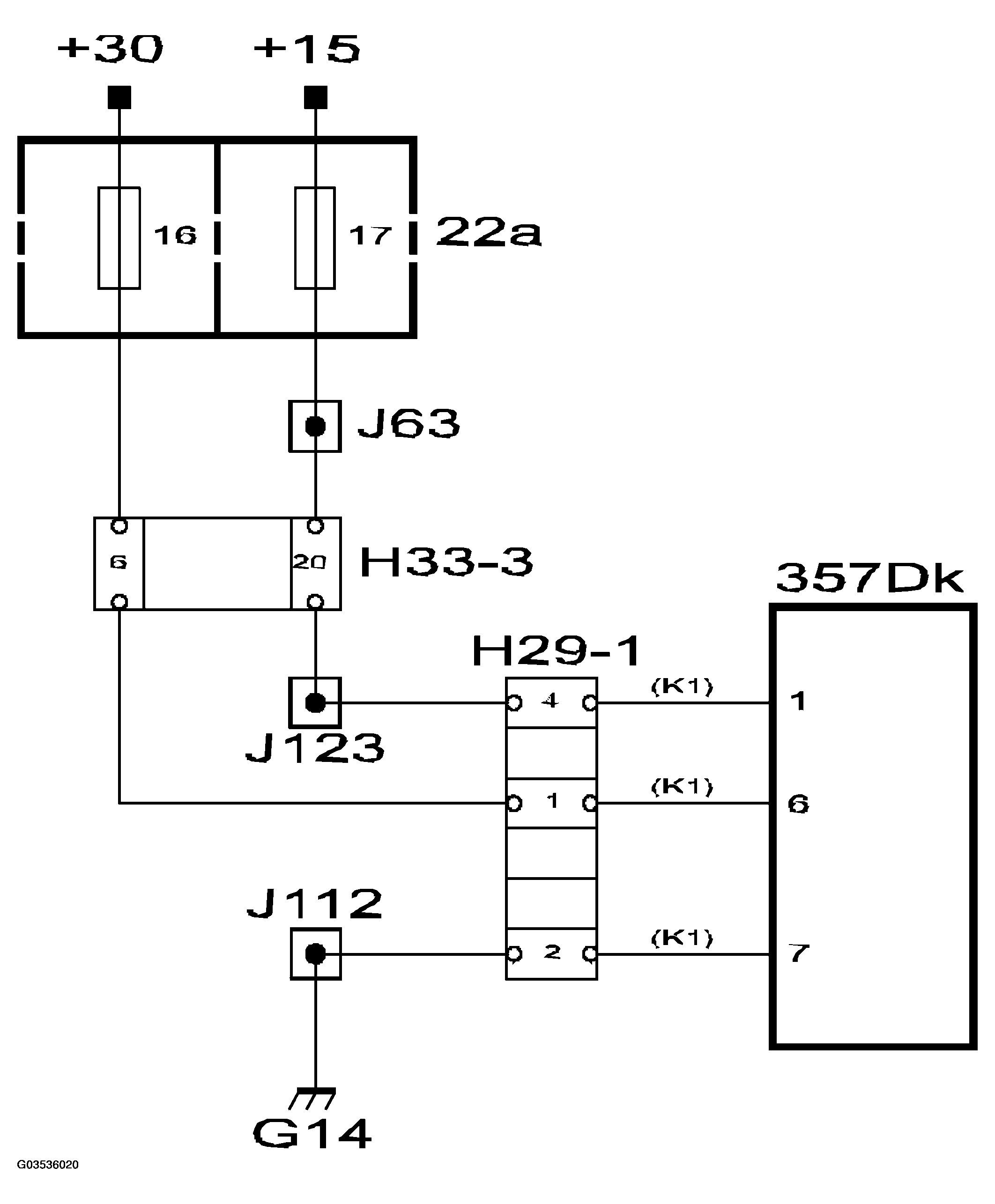

Fig 2: Power Supply Circuit - Diagram
G03536020Courtesy of SAAB-SCANIA OF AMERICA, INC.
