5th synchromesh assembly, input shaft: Checking

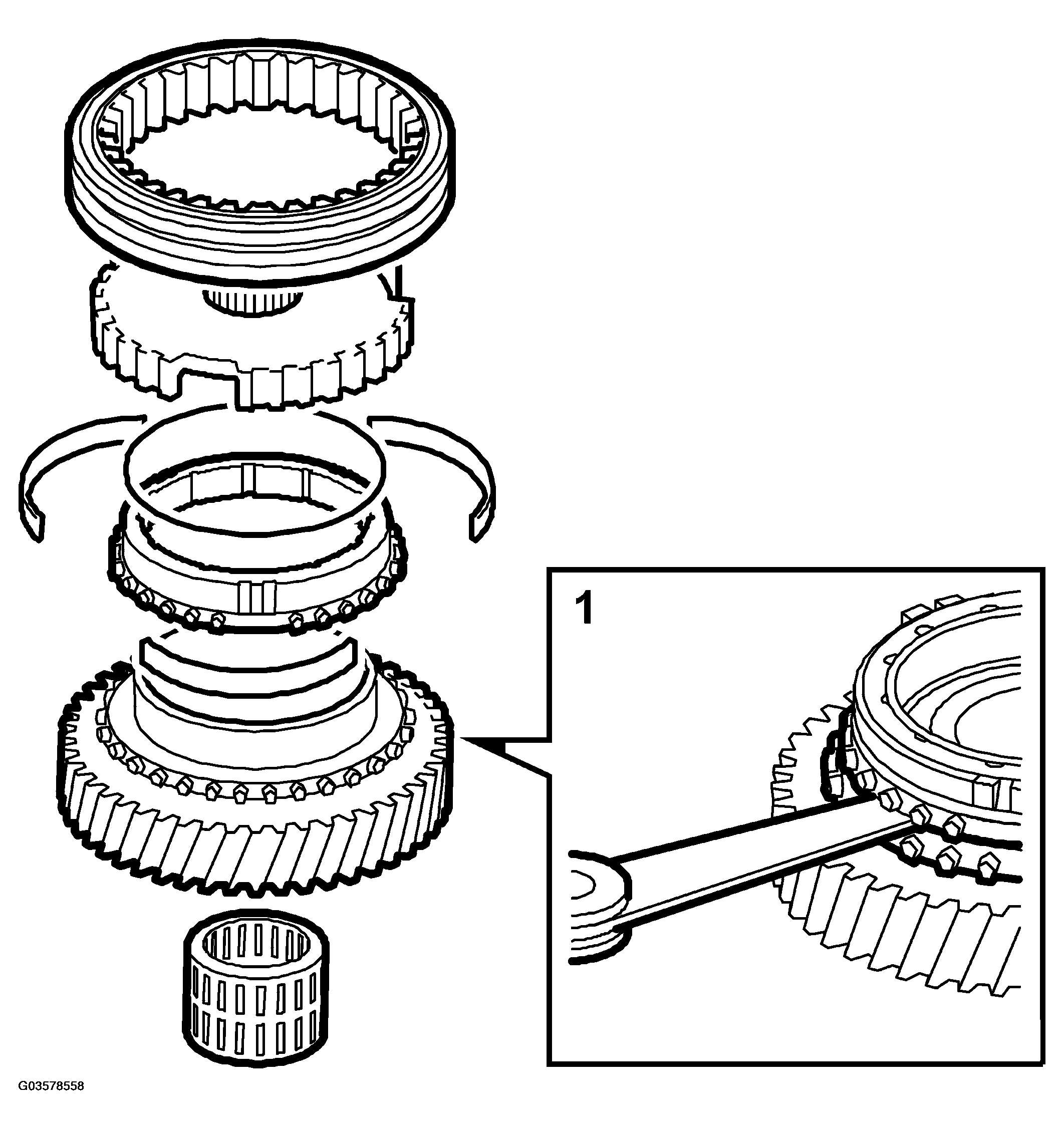

Fig 1: Illustration For Step 1

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Check synchromesh wear by placing it on the 5th pinion. Use a feeler gauge to measure at three points and calculate an average. If the average value is less than 0.5 mm, the synchromesh should be replaced.
