DTC P1131: O2S Switch Point - Lean (Sensor 1): Notes

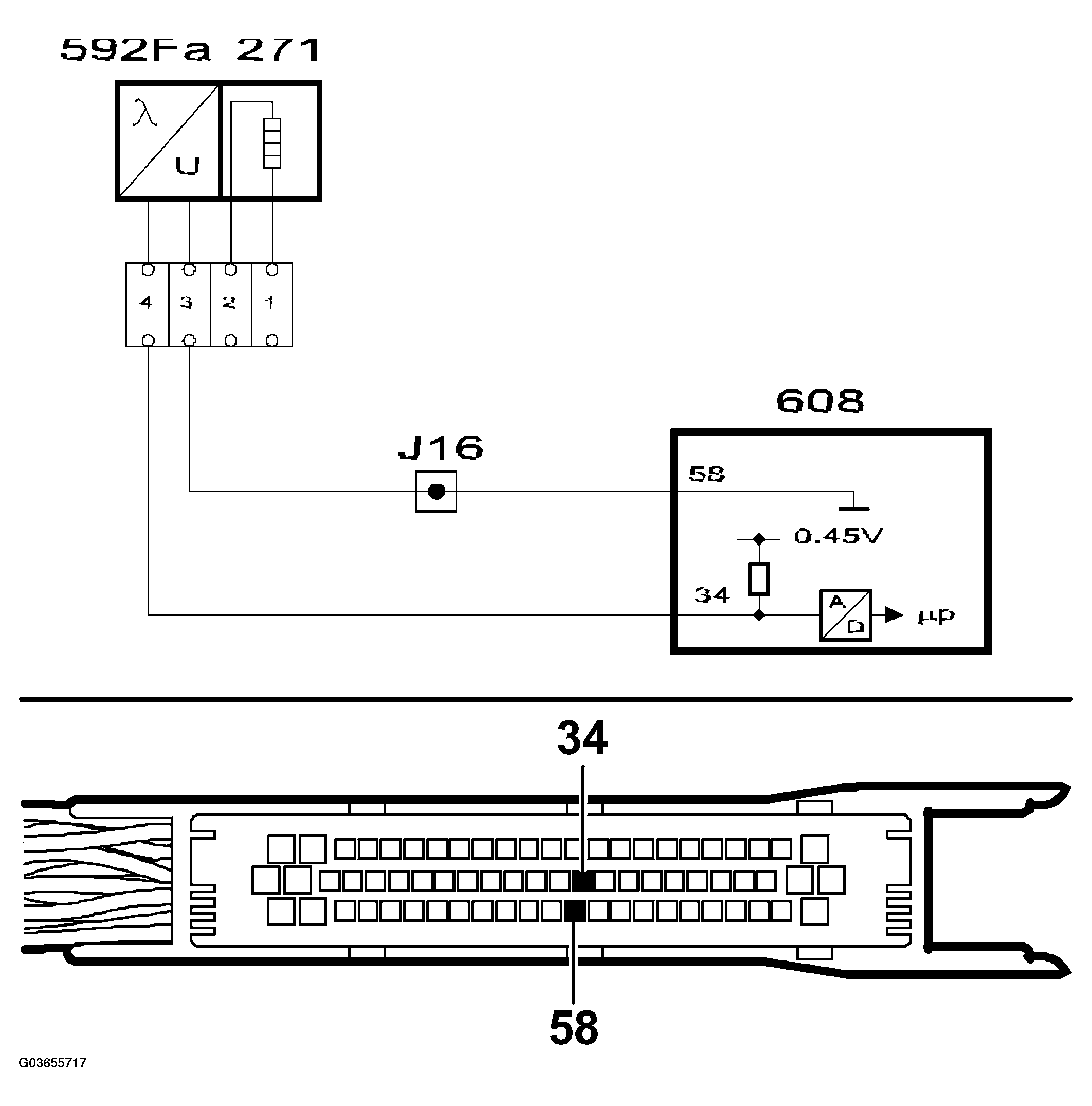

Fig 1: Identifying O2S Switch Point Circuit Diagram - Lean Sensor 1
G03655717Courtesy of SAAB-SCANIA OF AMERICA, INC.
