Main components, Navigation

4D

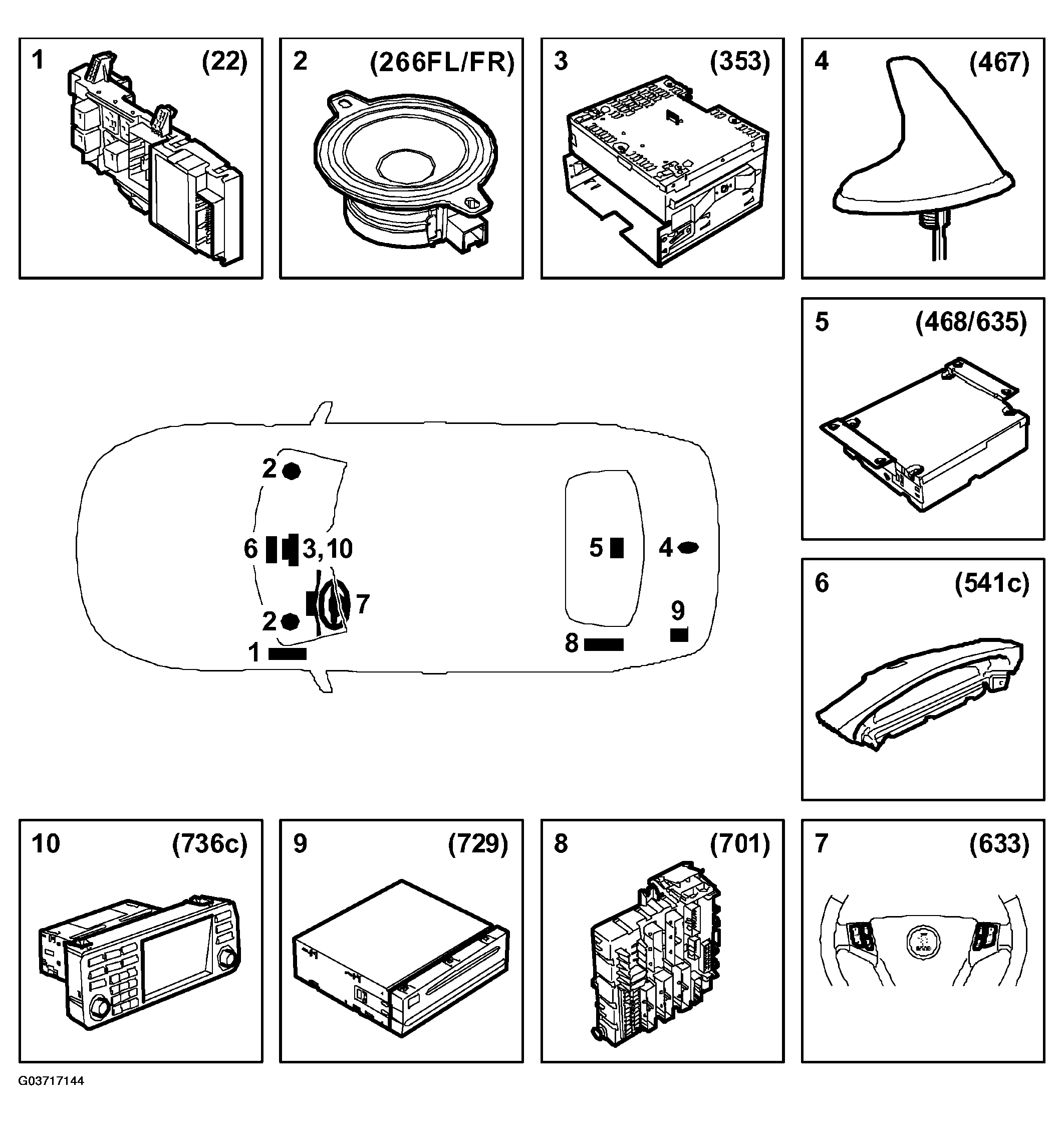

Fig 1: Identifying 4D Main Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV

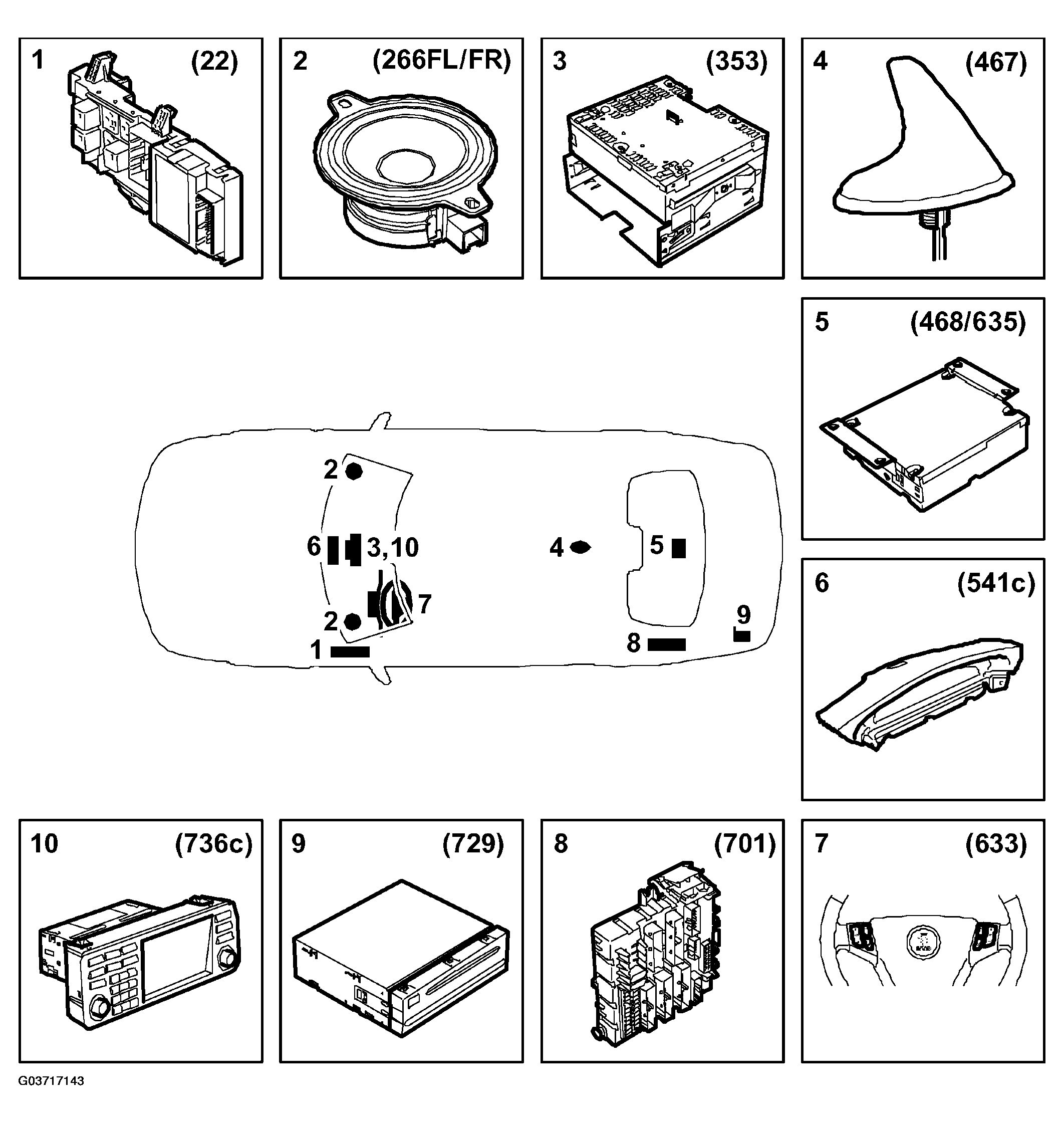

Fig 2: Identifying CV Main Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Electrical center, dashboard (22)
2. Speaker (266 FR, FL)
3. Entertainment Head Unit, EHU (353)
4. Antenna, GPS/GSM (467)
5. Navigation unit, CU/PU (468/635)
6. SID (541c)
7. Steering wheel controls (633)
8. Rear Electrical Center, REC (701)
9. DVD unit (729)
10. Control panel, Infotainment system 3, ICM3 (736c)
