Starter motor, B207: Notes

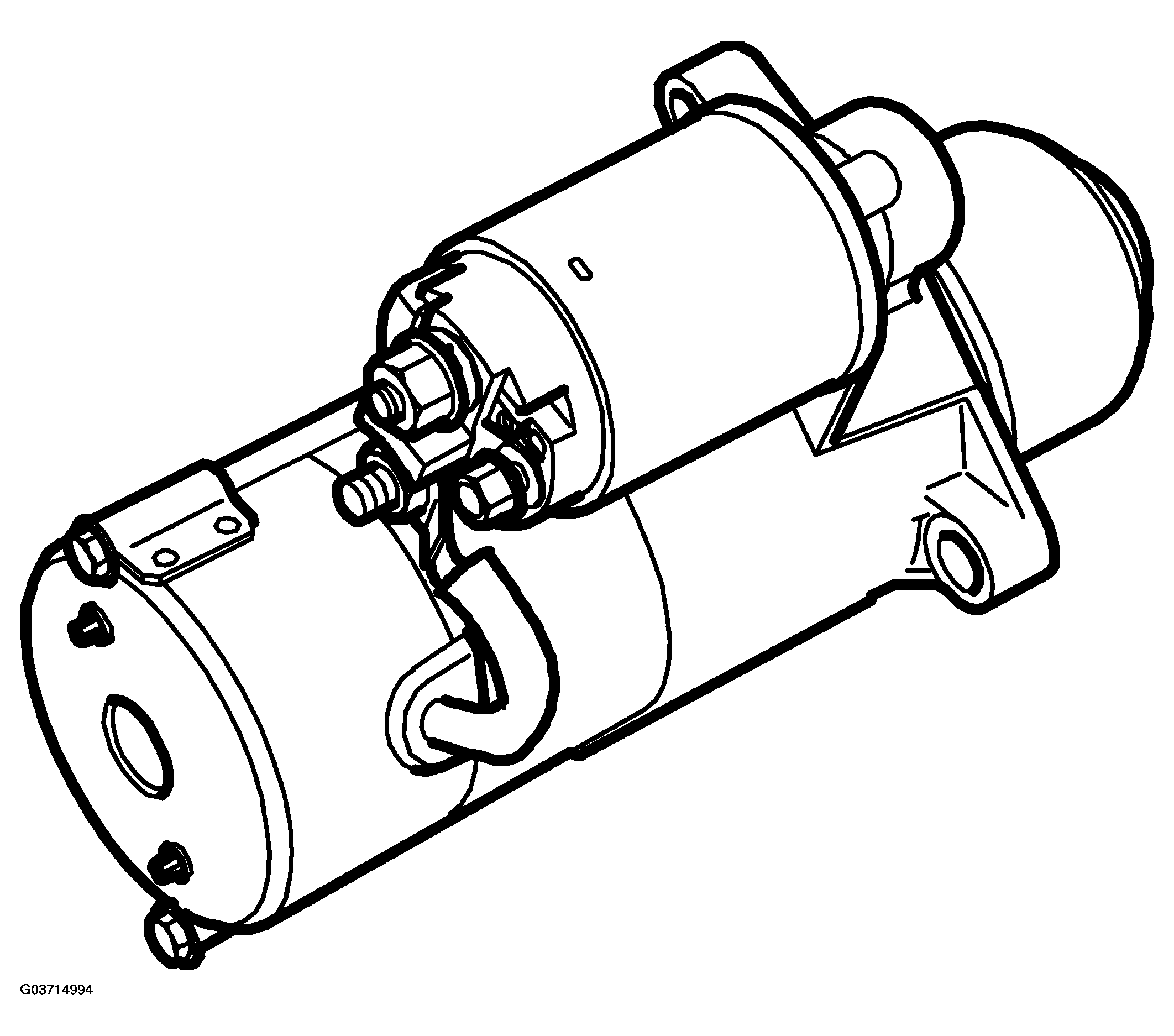

Fig 1: Identifying Starter Motor (B207)
G03714994Courtesy of SAAB-SCANIA OF AMERICA, INC.
STARTER MOTOR DESCRIPTION (B207)

Type designation   Delco
Power kW 1.8
No. of teeth on starter motor pinion   11
Number of teeth on ring gear   135
Ratio engine/starter motor   12.5:1
