Coolant temperature sensor (202): Location:: Simtec

on the engine's top right front corner

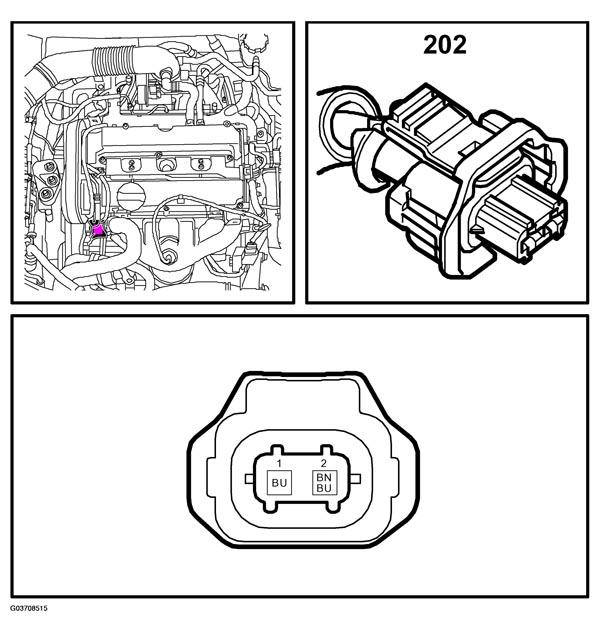

Fig 1: Identifying Coolant Temperature Sensor Connector Pinout (Simtec)
G03708515Courtesy of SAAB-SCANIA OF AMERICA, INC.
