Fuse 6, instrument panel electrical center 22: Notes

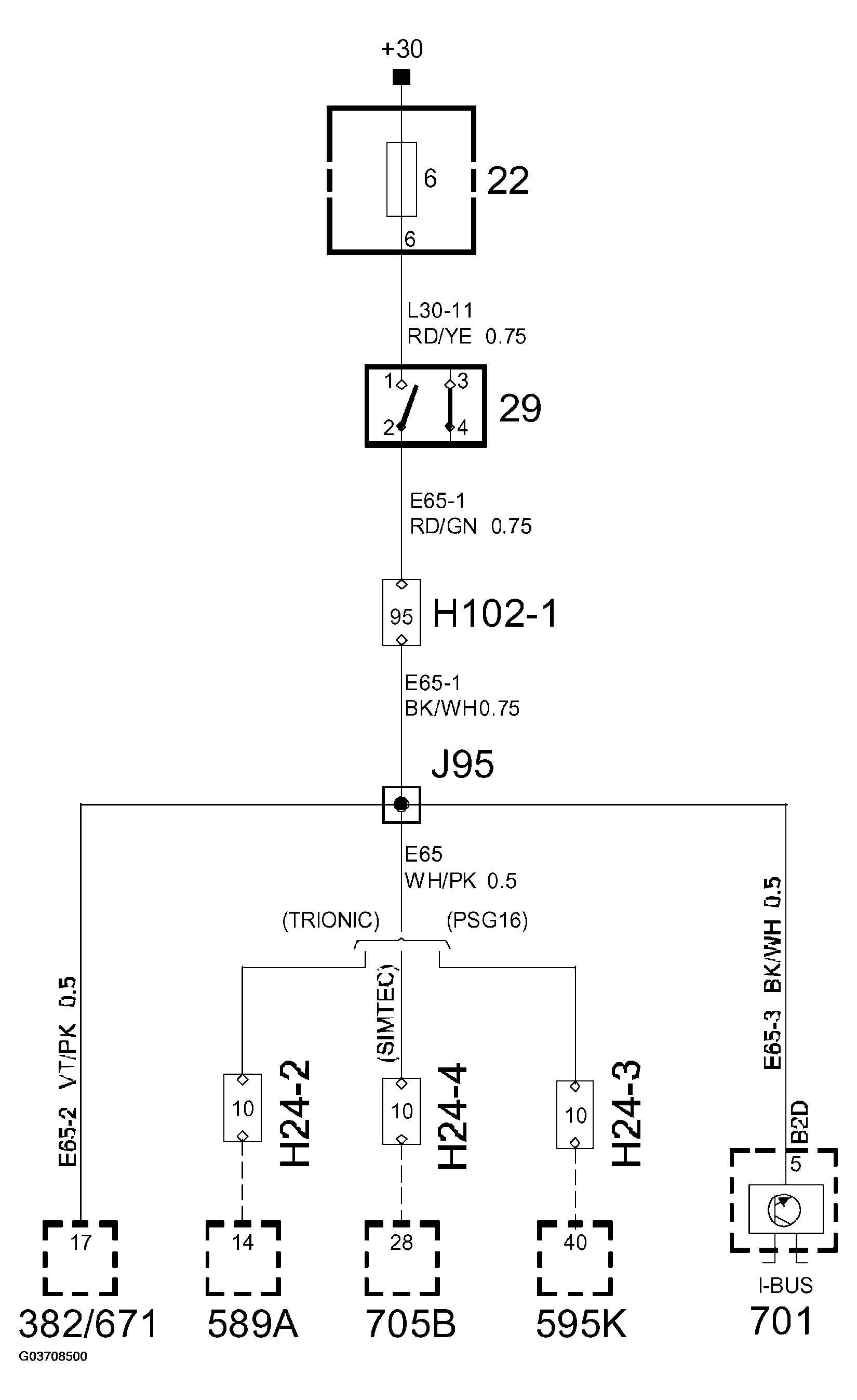

Fig 1: Identifying Fuse 6 And Instrument Panel Electrical Centre 22 Wiring Diagram
G03708500Courtesy of SAAB-SCANIA OF AMERICA, INC.
