To remove

Place covers over the wing to keep the paintwork clean and protect it from damage.

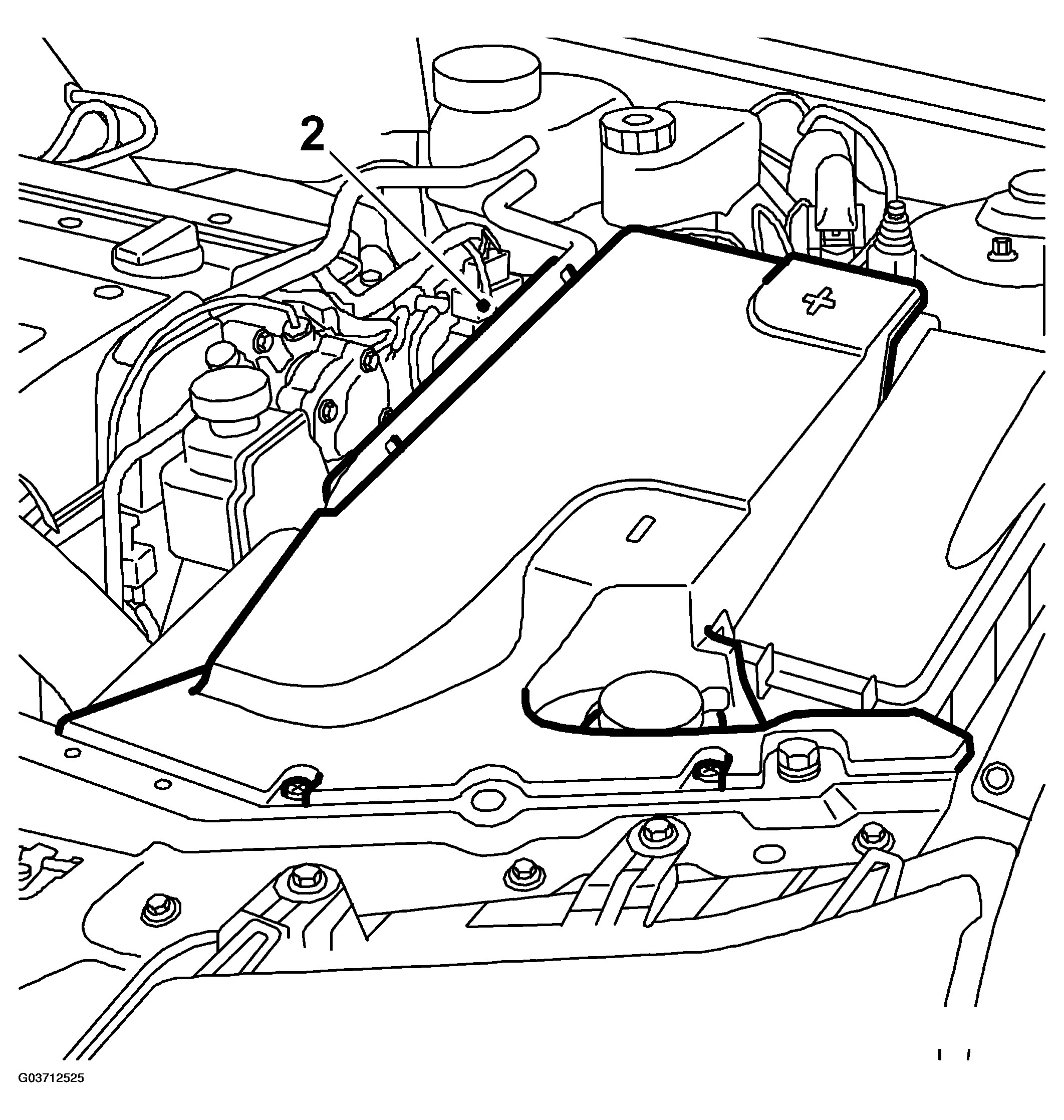

Remove the battery cover.

Fig 1: Removing Battery Cover
Courtesy of SAAB-SCANIA OF AMERICA, INC.

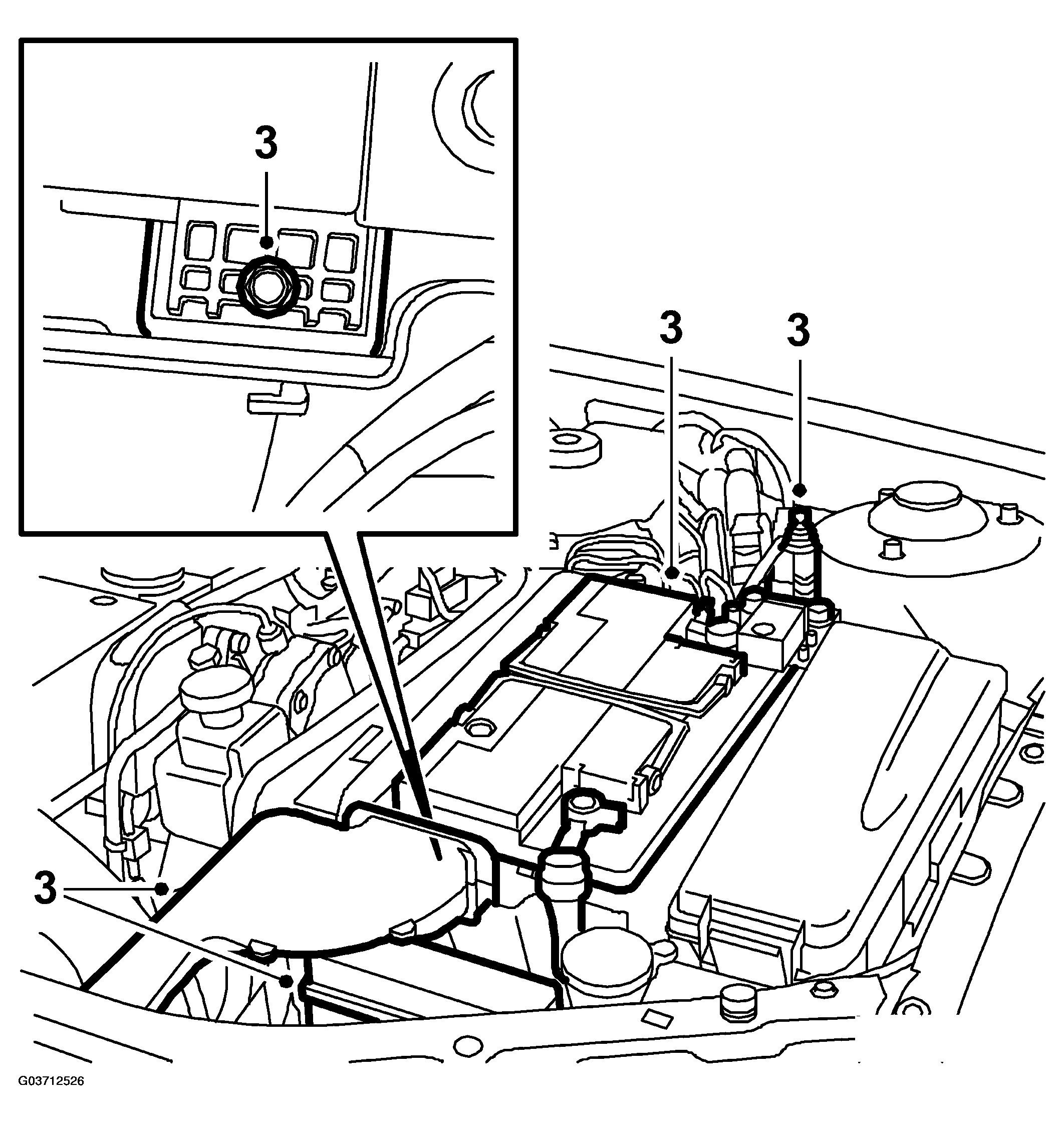

Remove the battery, coolant pipe, main fuse box and bonnet switch.

Fig 2: Removing Battery, Coolant Pipe, Main Fuse Box And Bonnet Switch
Courtesy of SAAB-SCANIA OF AMERICA, INC.

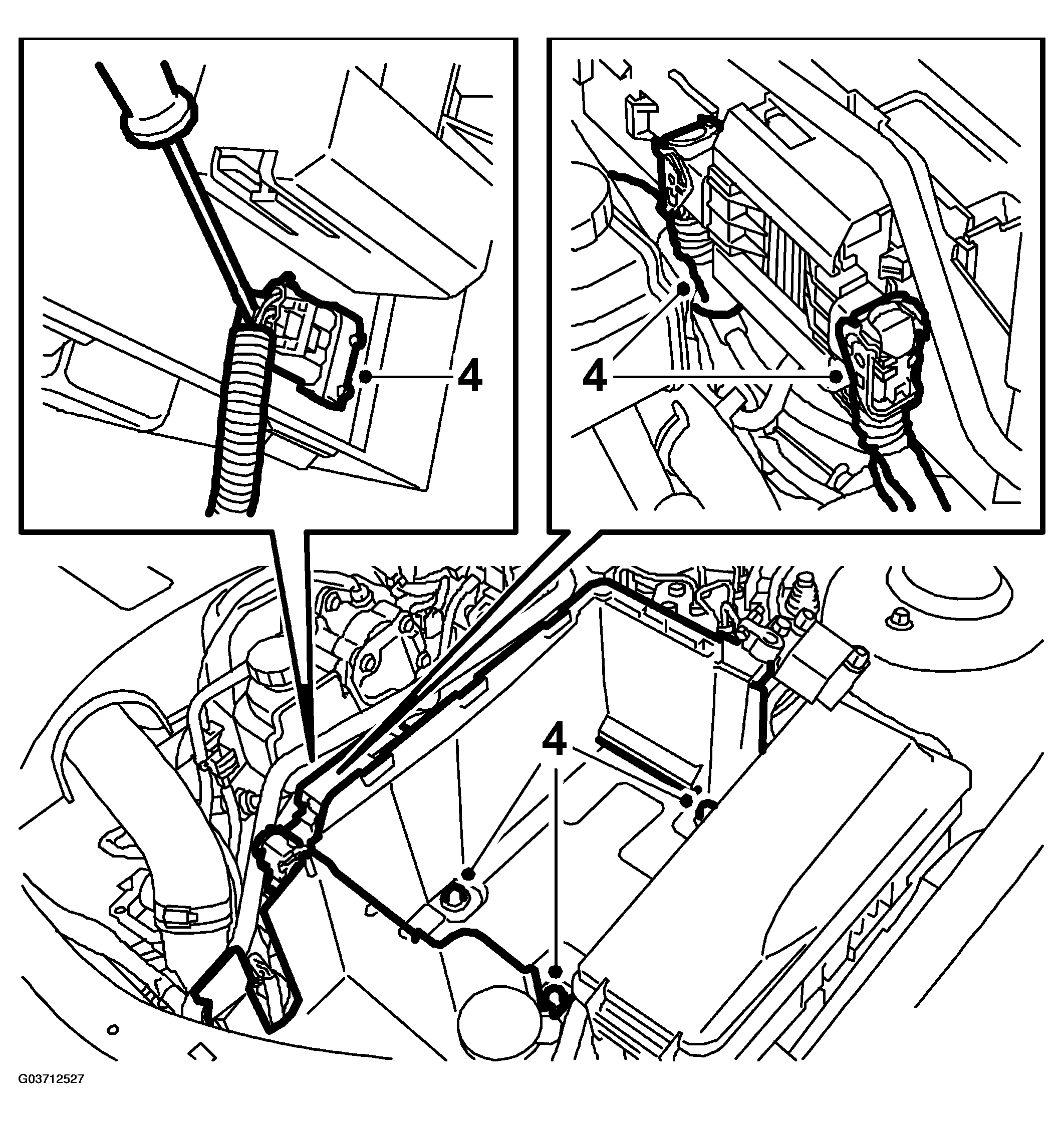

Unplug the control module connector and remove the battery tray. Unplug the connector under the control module.
WARNING: If the car has recently been driven, the oil cooler is very hot. Wait until it has cooled.

Fig 3: Removing Battery Tray
Courtesy of SAAB-SCANIA OF AMERICA, INC.

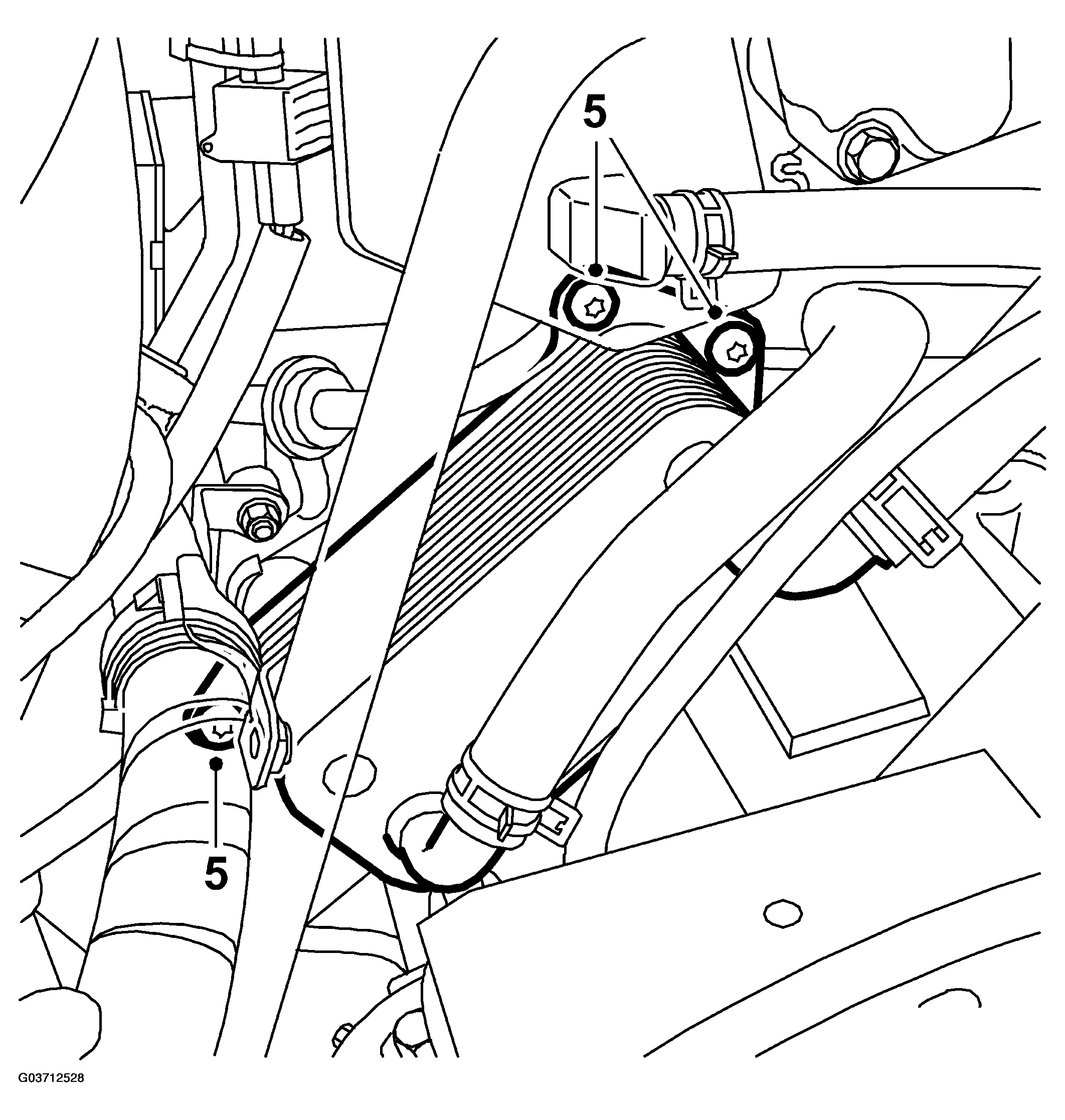

Place a receptacle under the car and lay a rag under the oil cooler. Remove the oil cooler. Leave the water hoses in place and move the oil cooler so that the gear selector position sensor screw is accessible.

Fig 4: Removing Oil Cooler
Courtesy of SAAB-SCANIA OF AMERICA, INC.

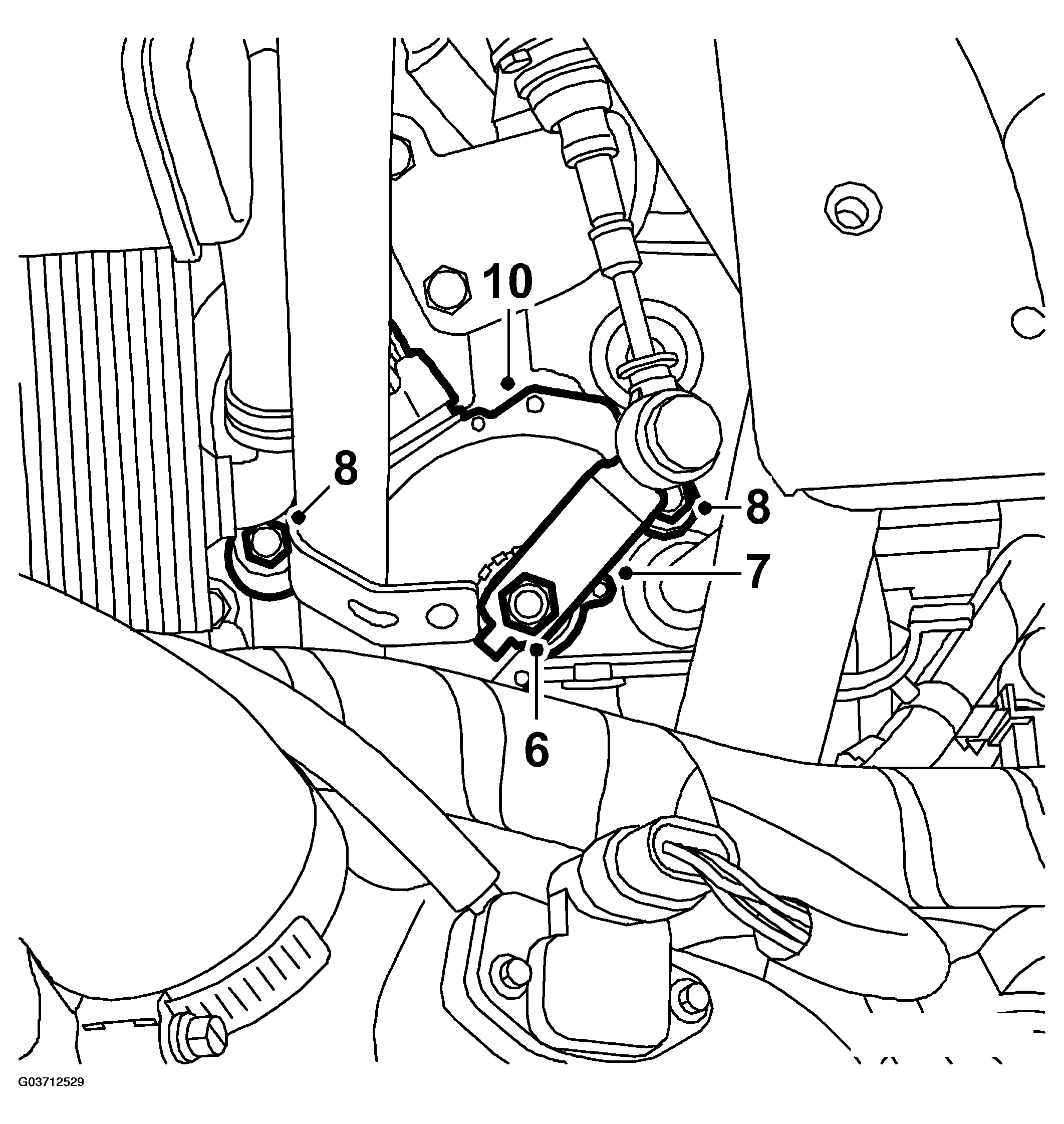

Put the gear lever in position N and undo the nut on the lever.

Fig 5: Illustration For Steps 6, 7, 8 & 10
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the lever.
Remove the gear selector position sensor retaining bolts.
Bend out the lugs and remove the gear selector position sensor nut.
Unplug the electric connector and lift the sensor off the shaft.
