Transmission range switch, automatic (245)

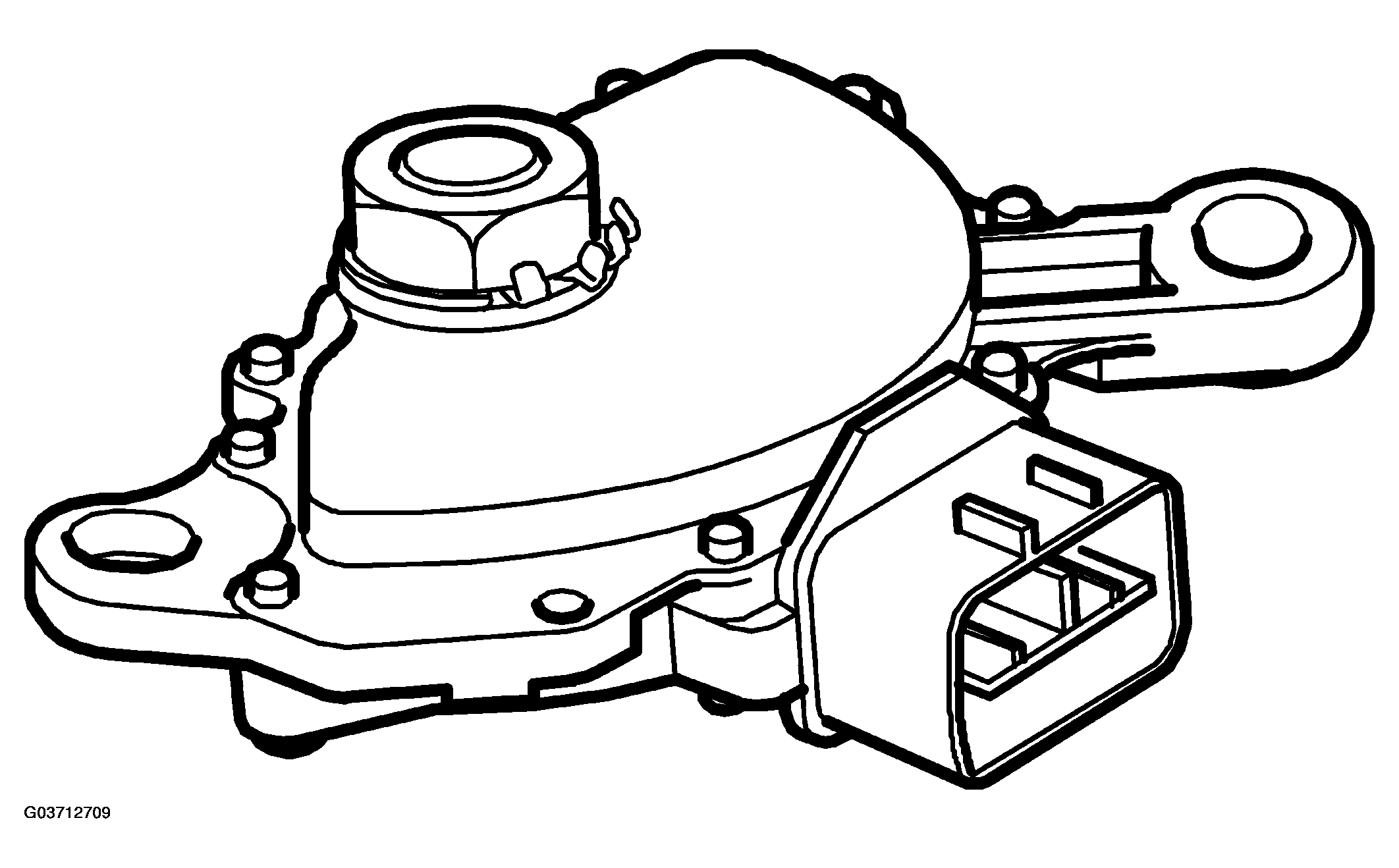

Fig 1: Identifying Transmission Range Switch, Automatic (245)
G03712709Courtesy of SAAB-SCANIA OF AMERICA, INC.
VOLTAGE, CURRENT, RESISTANCE DESCRIPTION

Type Voltage, current, resistance Description
Mechanical position switch Voltage drop: 2V
Current: 30mA
20mA		 max.
at 16V
normal at 12V
