Technical Data: Siren

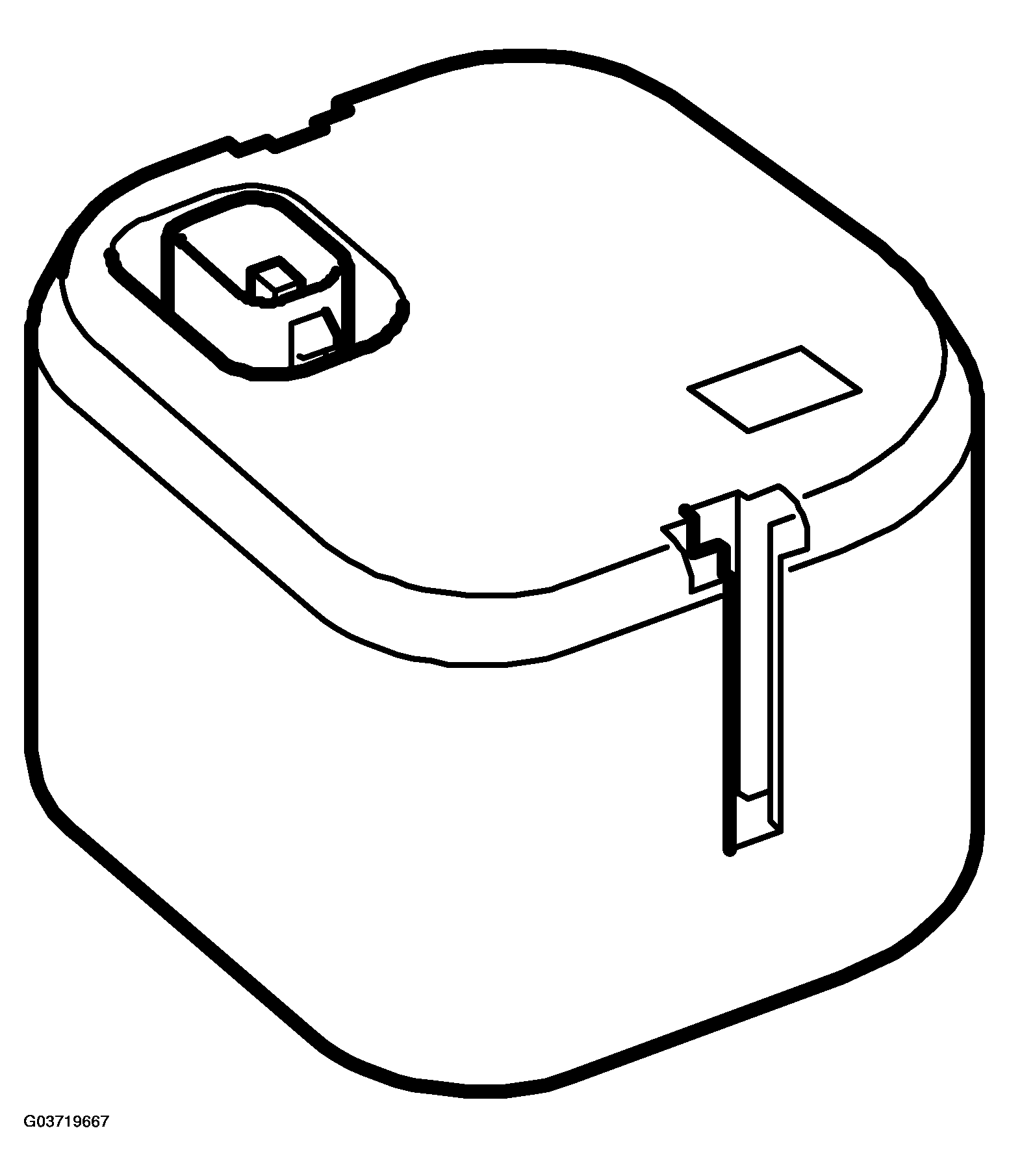

Fig 1: Identifying Siren
G03719667Courtesy of SAAB-SCANIA OF AMERICA, INC.
SIREN DESCRIPTION

NC Pin 1
+30 Pin 2
Communication cable BCM <- ASM Pin 3
Ground Pin 4
Battery Rechargeable NiMH
Alarm limit, voltage drop 10V/h
Sound volume @ 1m 105-118dB (A)
Tone range 1800-3550Hz
Sweep frequency 2Hz
