To remove

  1. Raise the seat and tip the backrest forward.
  2. Remove the backrest cover.
  3. Unplug the connector from the microswitch.

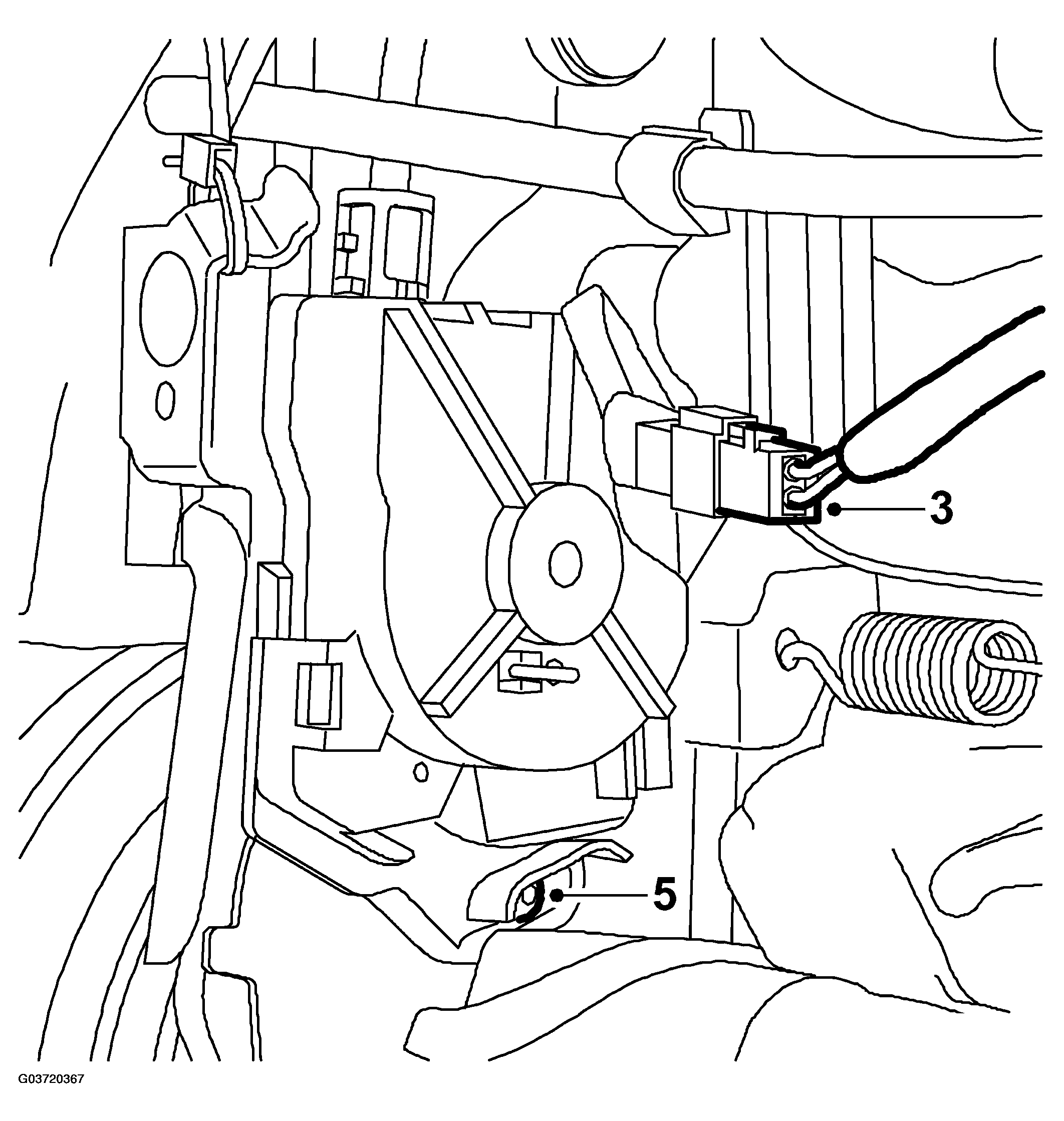

    Fig 1: Illustration For Steps 3 & 5
    G03720367Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fold up the backrest.
  5. Remove the screw and control unit from the seat frame.
  6. Remove the retaining clips from the cable.

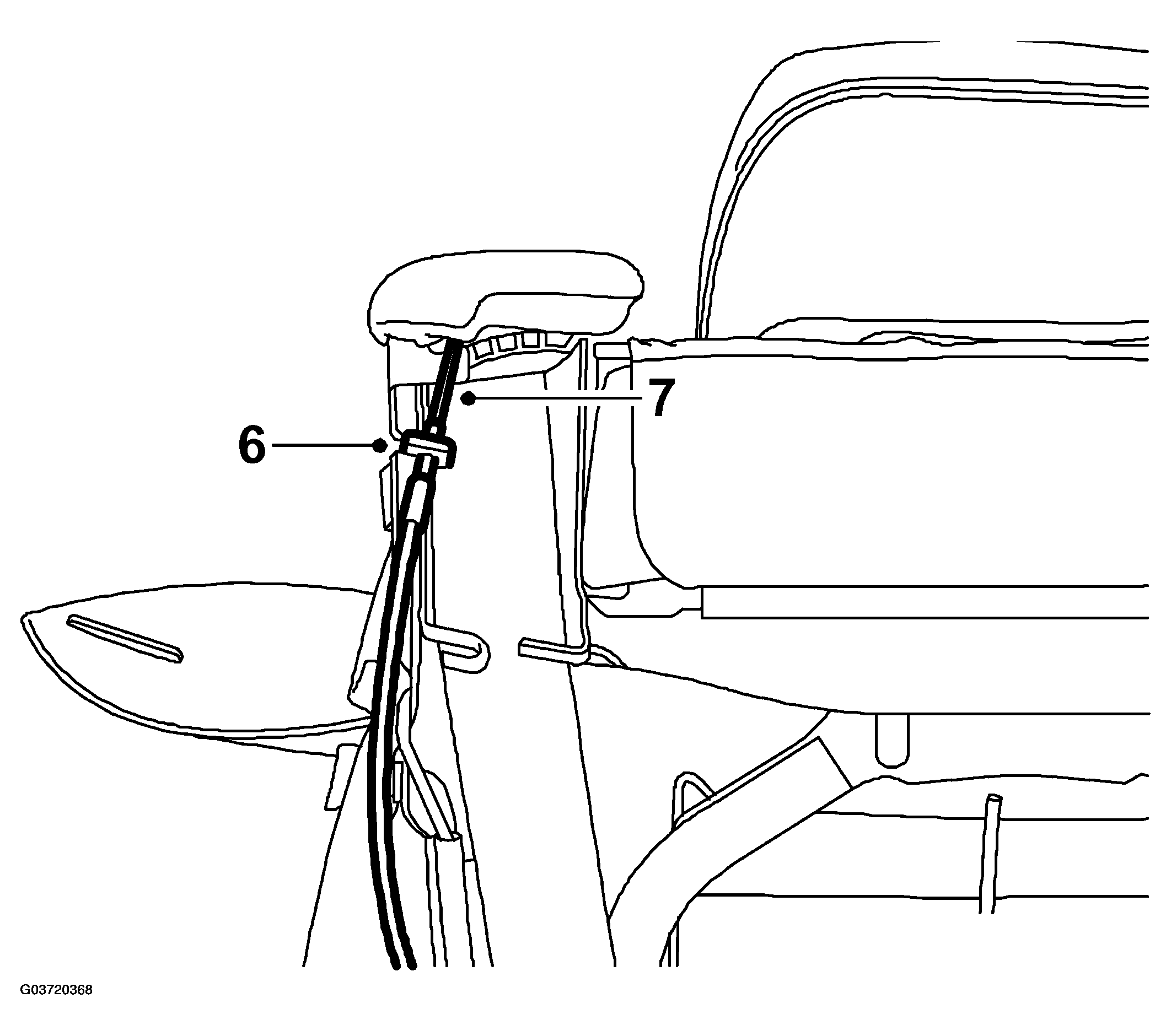

    Fig 2: Illustration For Steps 6-7
    G03720368Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the cable from the control arm.
