To remove

  1. Remove SIDE PANEL, ELECTRICALLY ADJUSTABLE FRONT SEAT, 4D  , SIDE PANEL, ELECTRICALLY ADJUSTABLE FRONT SEAT, CV  .
  2. Remove the controls using 2 x 82 93 474 REMOVAL TOOL  . Fit the tools onto the sides of the controls and press in the clips. Lift away the controls.

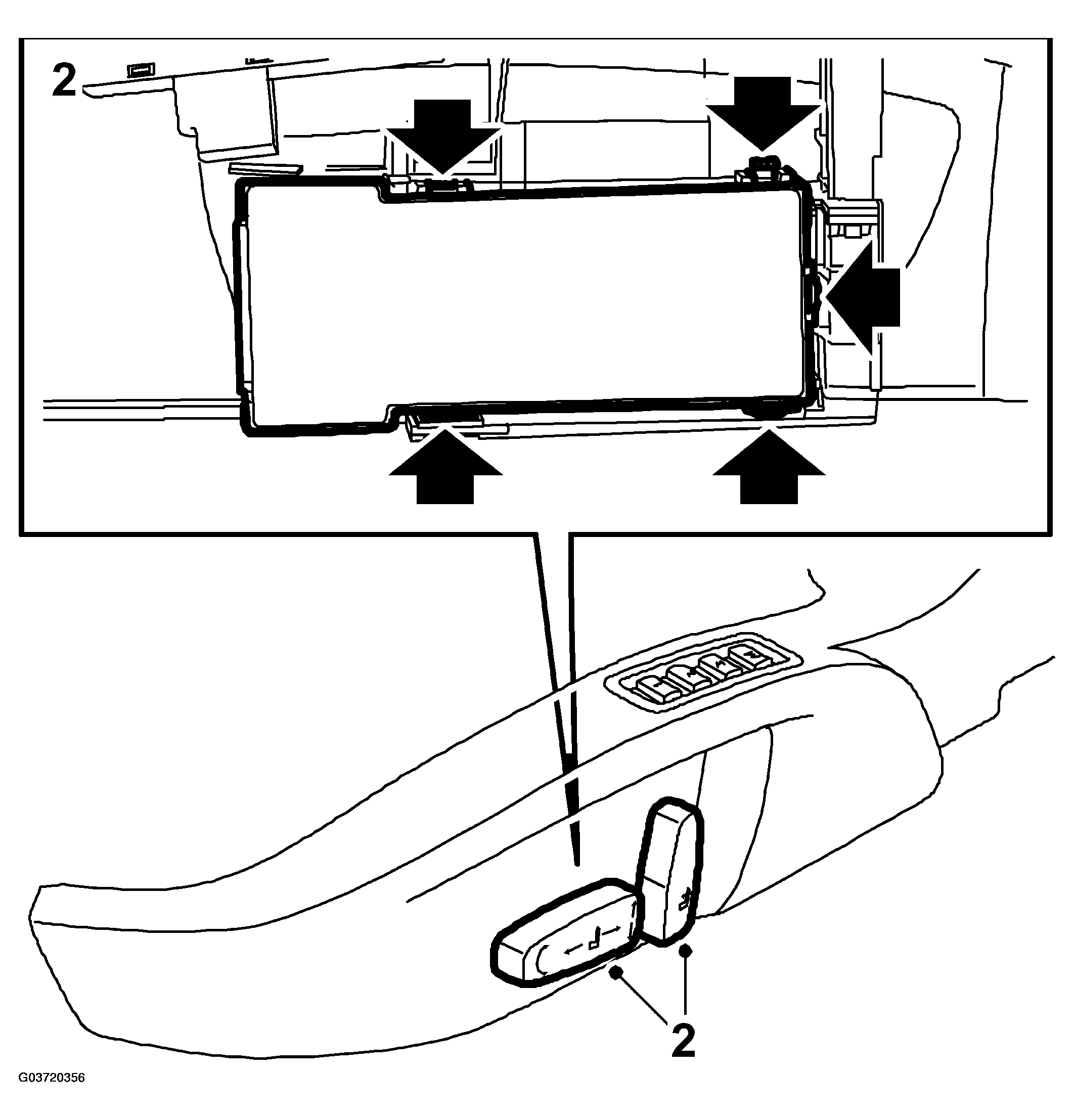

    Fig 1: Illustration For Step 2
    G03720356Courtesy of SAAB-SCANIA OF AMERICA, INC.
