Main components: 4D

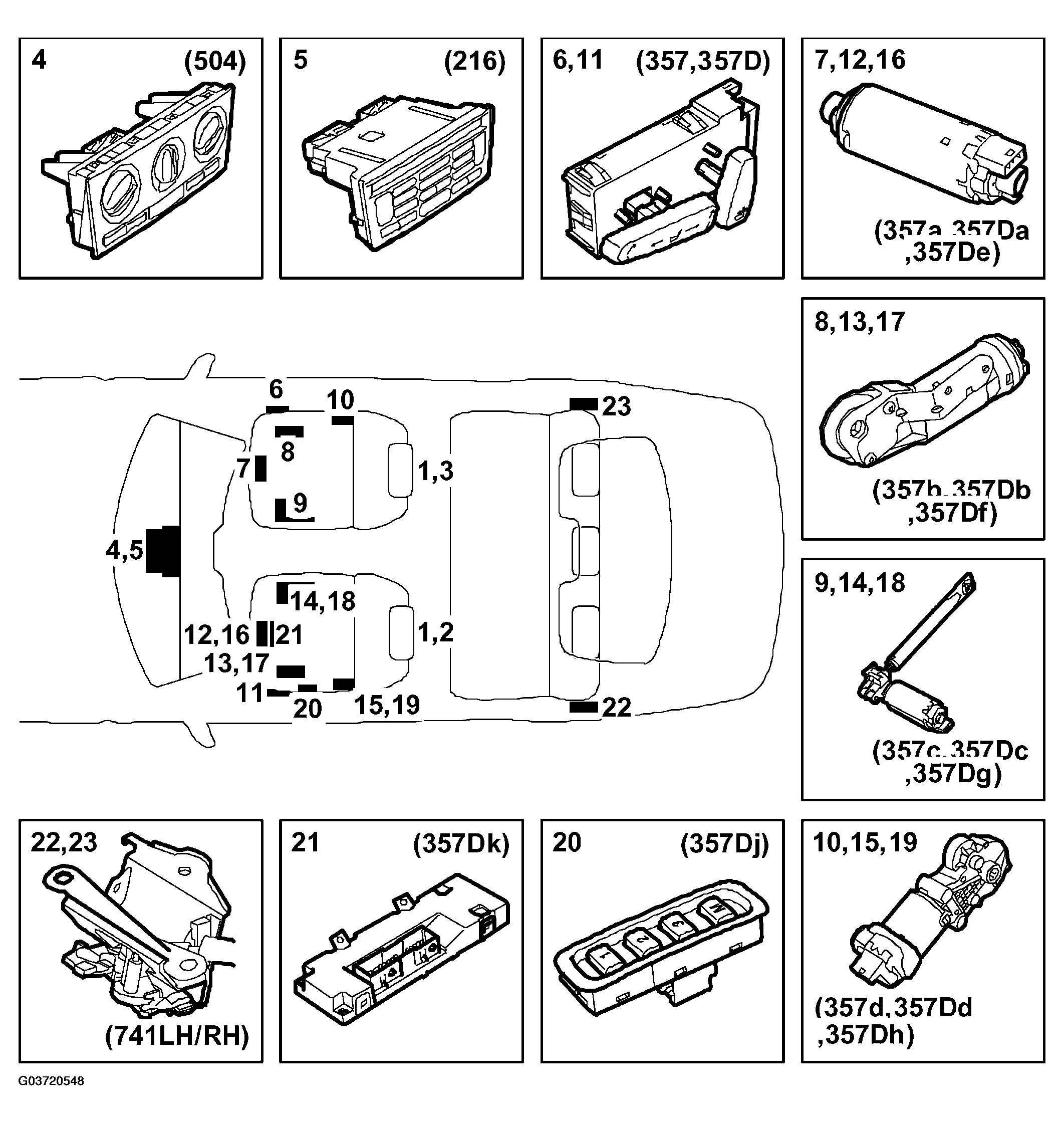

Fig 1: Identifying 4D Main Components
G03720548Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Heating pad temperature sensor (254)
  2. Left seat heating pad (64FL)
  3. Right seat heating pad (64FR)
  4. Manual climate control MCC (504)
  5. Automatic climate control ACC (216)
  6. Electrically adjustable seat switch (357)
  7. Legroom adjustment motor, electrically adjustable seat (357a)
  8. Motor, slope adjustment, electrically operated seat (357b)
  9. Motor, height adjustment, electrically operated seat (357c)
  10. Backrest adjustment motor, electrically adjustable seat (357d)
  11. Switch, electrically adjustable driver's seat with memory (357D)
  12. Legroom adjustment motor, electrically adjustable driver's seat (357Da)
  13. Motor, rake adjustment, electrically operated driver's seat with memory (357Db)
  14. Motor, height adjustment, electrically operated driver's seat with memory (357Dc)
  15. Motor, backrest adjustment, electrically operated driver's seat with memory (357Dd)
  16. Electrically adjustable driver's seat with memory, legroom adjustment position sensor, (357De)
  17. Position sensor, slope adjustment, electrically operated driver's seat with memory (357Df)
  18. Position sensor, height adjustment, electrically operated driver's seat with memory (357Dg)
  19. Rear height adjustment position sensor, electrically adjustable driver's seat with memory (357Dh)
  20. Memory switch, electrically operated driver's seat with memory (357Dj)
  21. Electrically adjustable driver's seat with memory control module (357Dk)
  22. Backrest rear left seat microswitch (741LH)
  23. Backrest rear right seat microswitch (741 RH)
