| Make |
Peiker |
| Type |

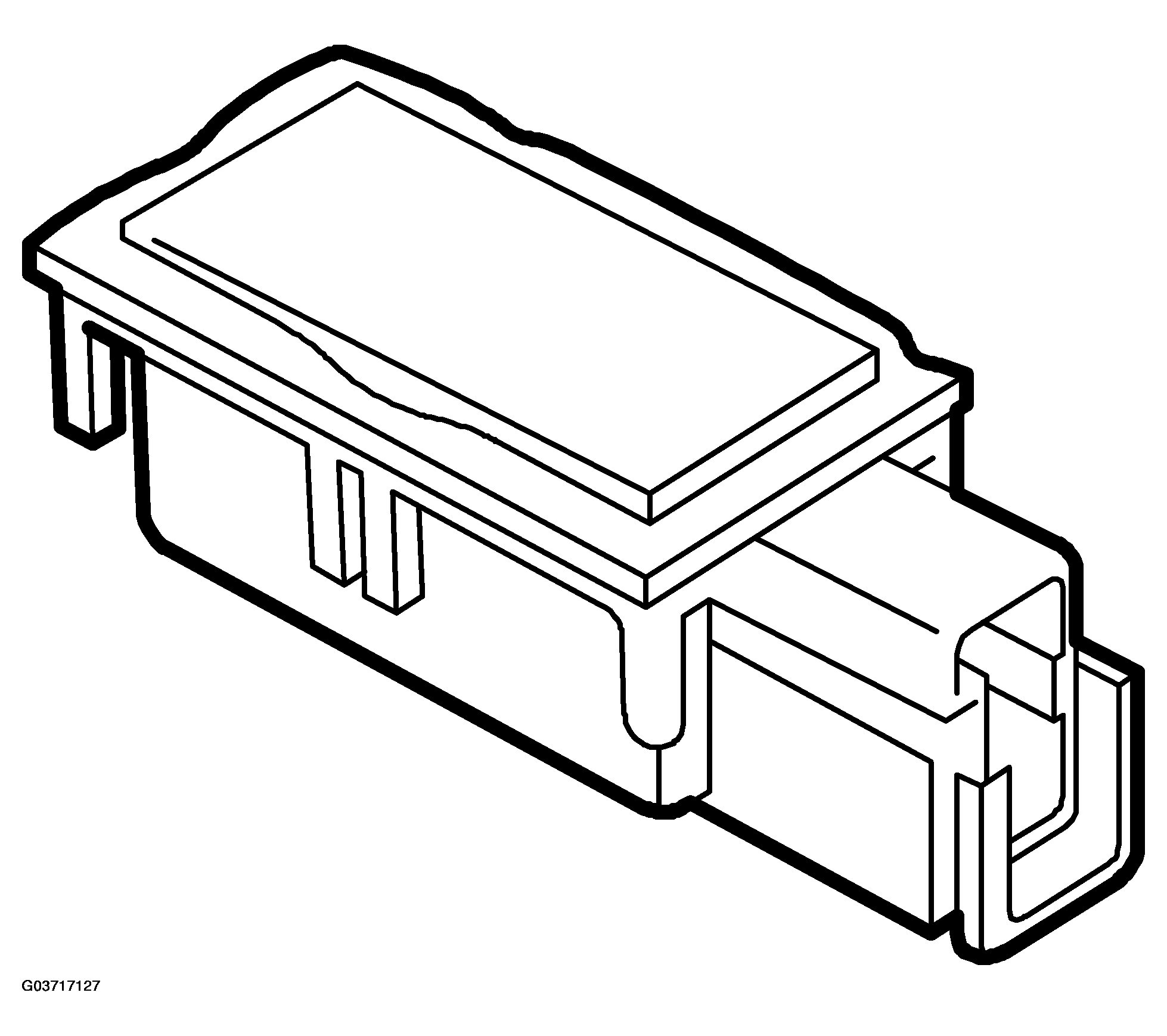

Condenser microphone with an amplifier incorporated in the plastic housing. |
| Location |
In the roof console. |
| Frequency response: |
300 Hz - 5 kHz 3 dB. |
| High level output (active): |
Pin No. 1 |
| Low level output (passive): |
Pin No. 2 |
| Ground |
Pin No. 3 |
