Main unit, Popular: Notes

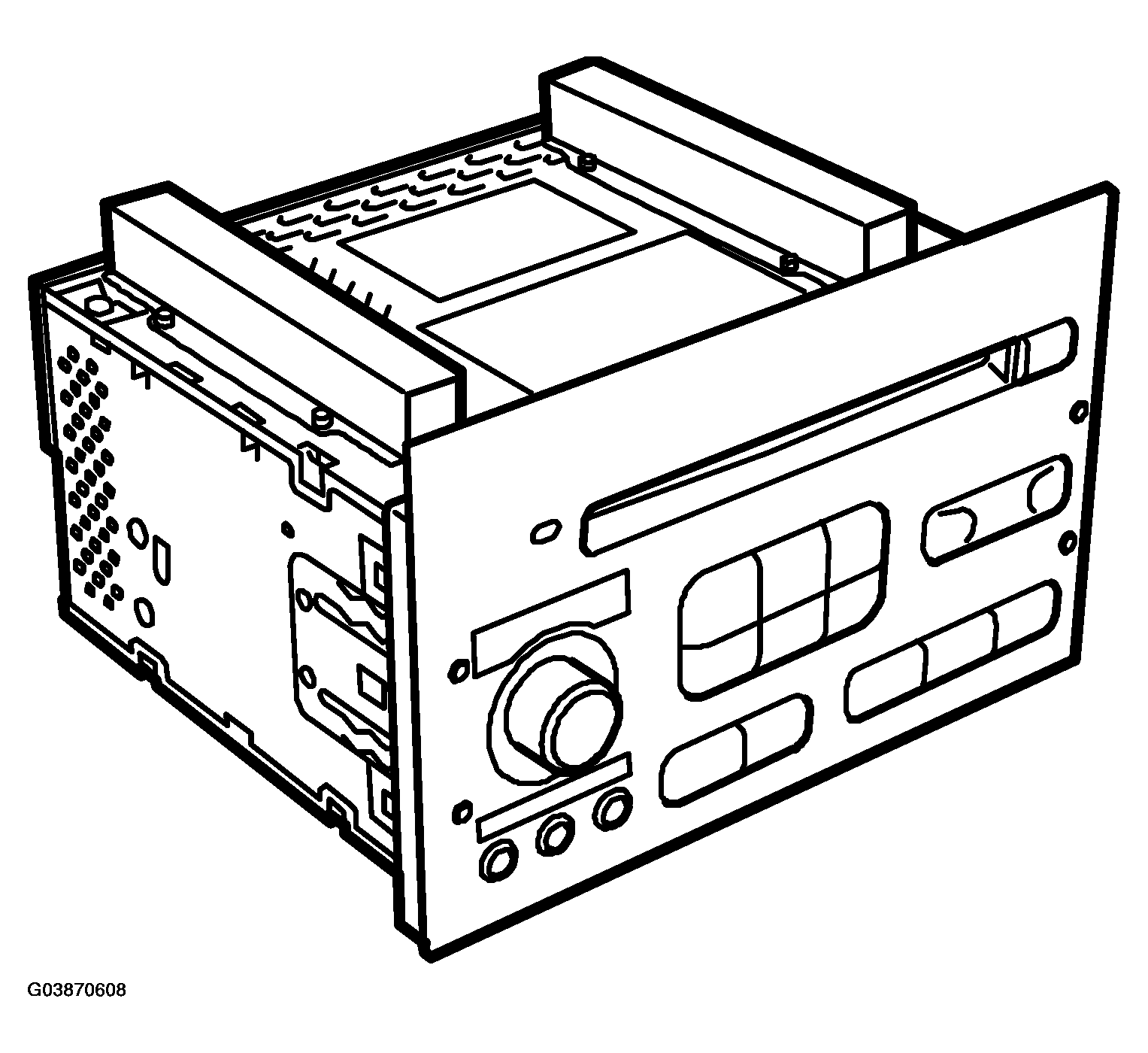

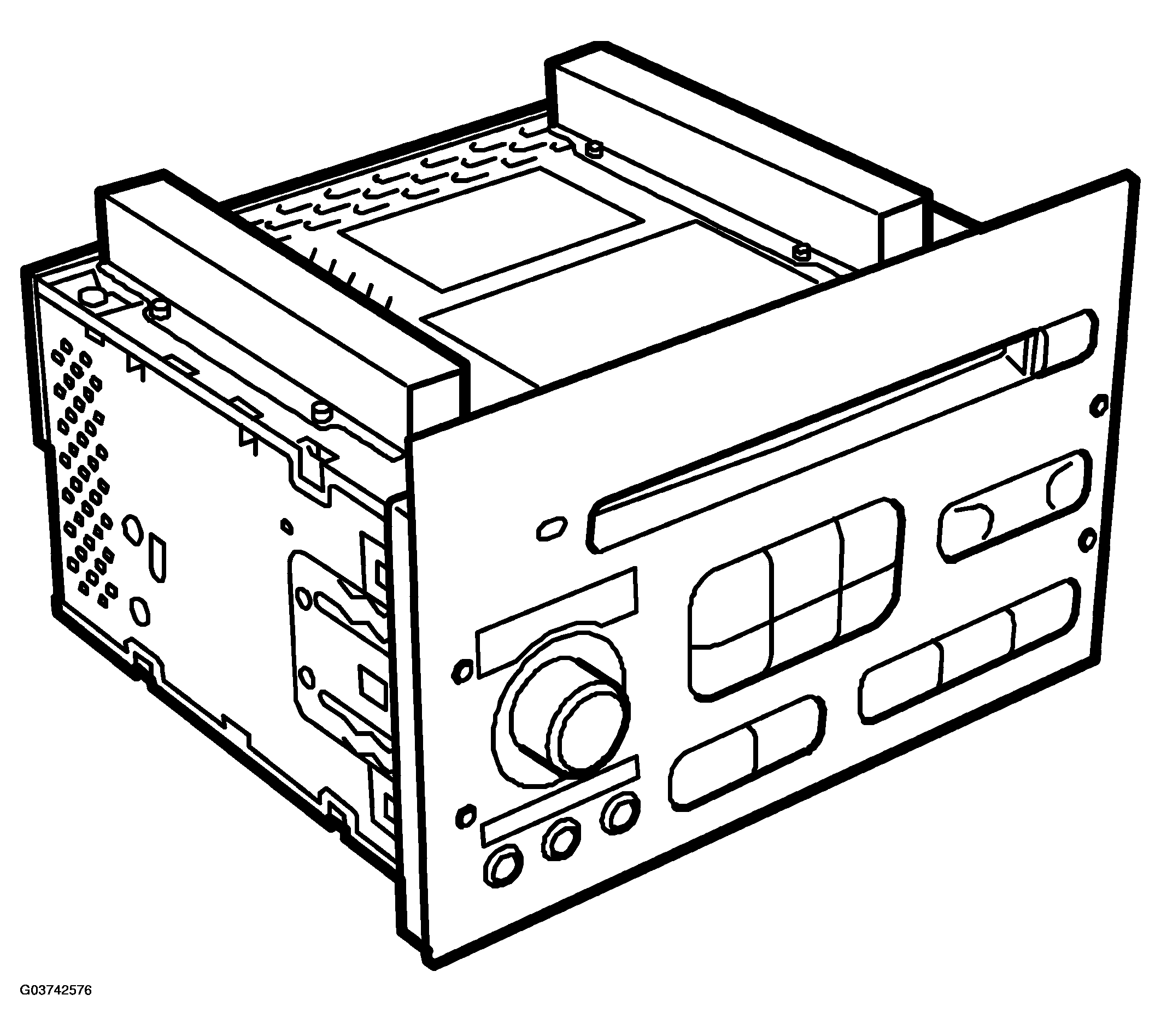

MAIN UNIT (POPULAR) TECHNICAL DATA
| Location: | In the center console. | |
| Number of pins: | 26 | |
| Power supply +30: | Pin No. | 8 |
| Power supply +15: | Pin No. | 2 |
| Ground: | Pin No. | 4 |
| Trigger voltage: | Pin No. | 7 |
| Instrument bus, I-BUS (+): | Pin No. | 18 |
| Instrument bus, I-BUS (-): | Pin No. | 17 |
| Closed-circuit current consumption: | mA | <0.1 |
| Max. current consumption: | A | <10 |
