Main unit inputs

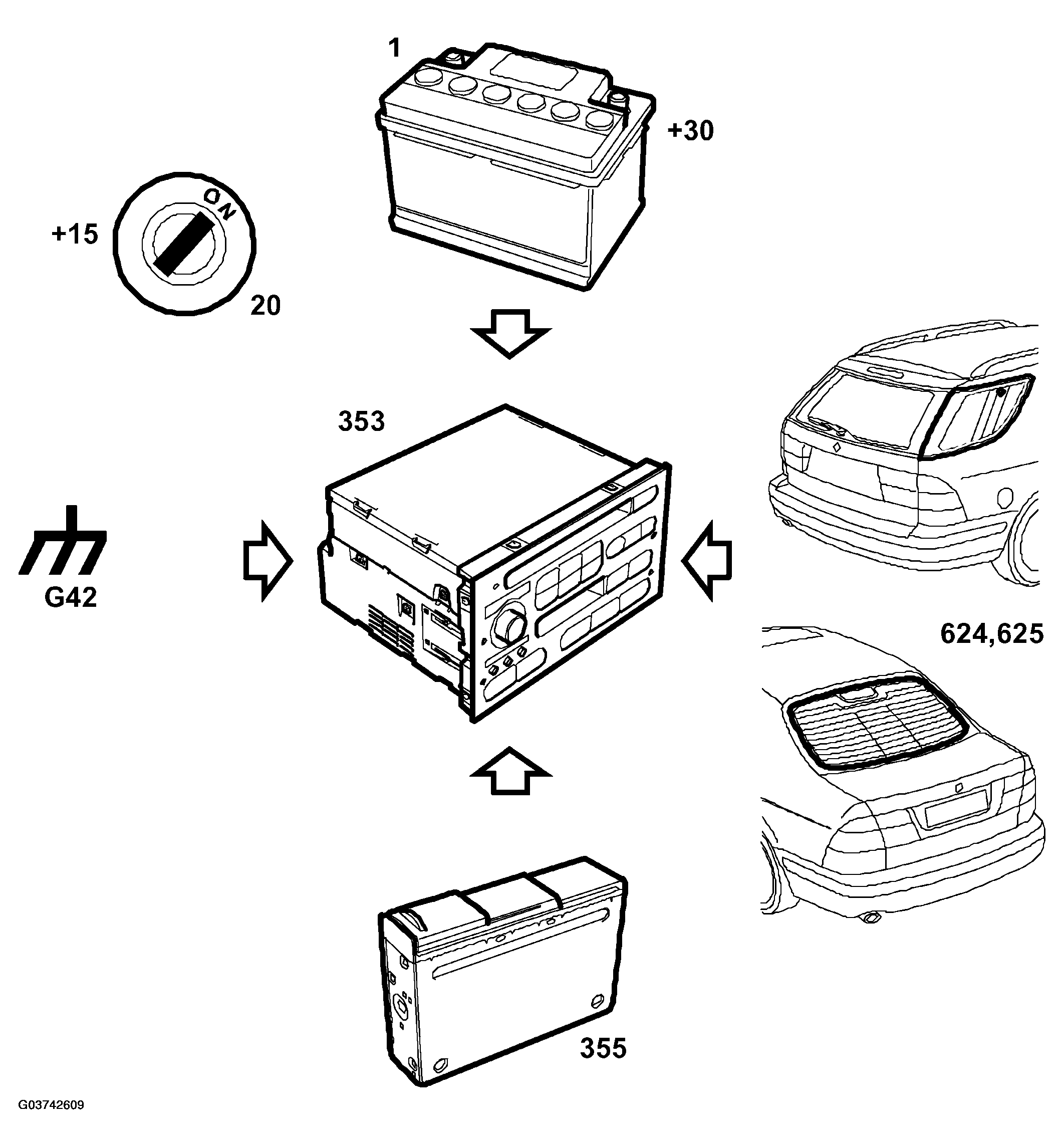

Fig 1: Identifying Communication Diagram Of Main Unit Inputs

G03742609

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Power supply +15 (20)
Power supply +30 (1)
Ground (G42)
Antenna signal, HF (624, 625)
CD changer, line input right-hand channel (+/-) (355)
CD changer, line input left-hand channel (+/-) (355)
